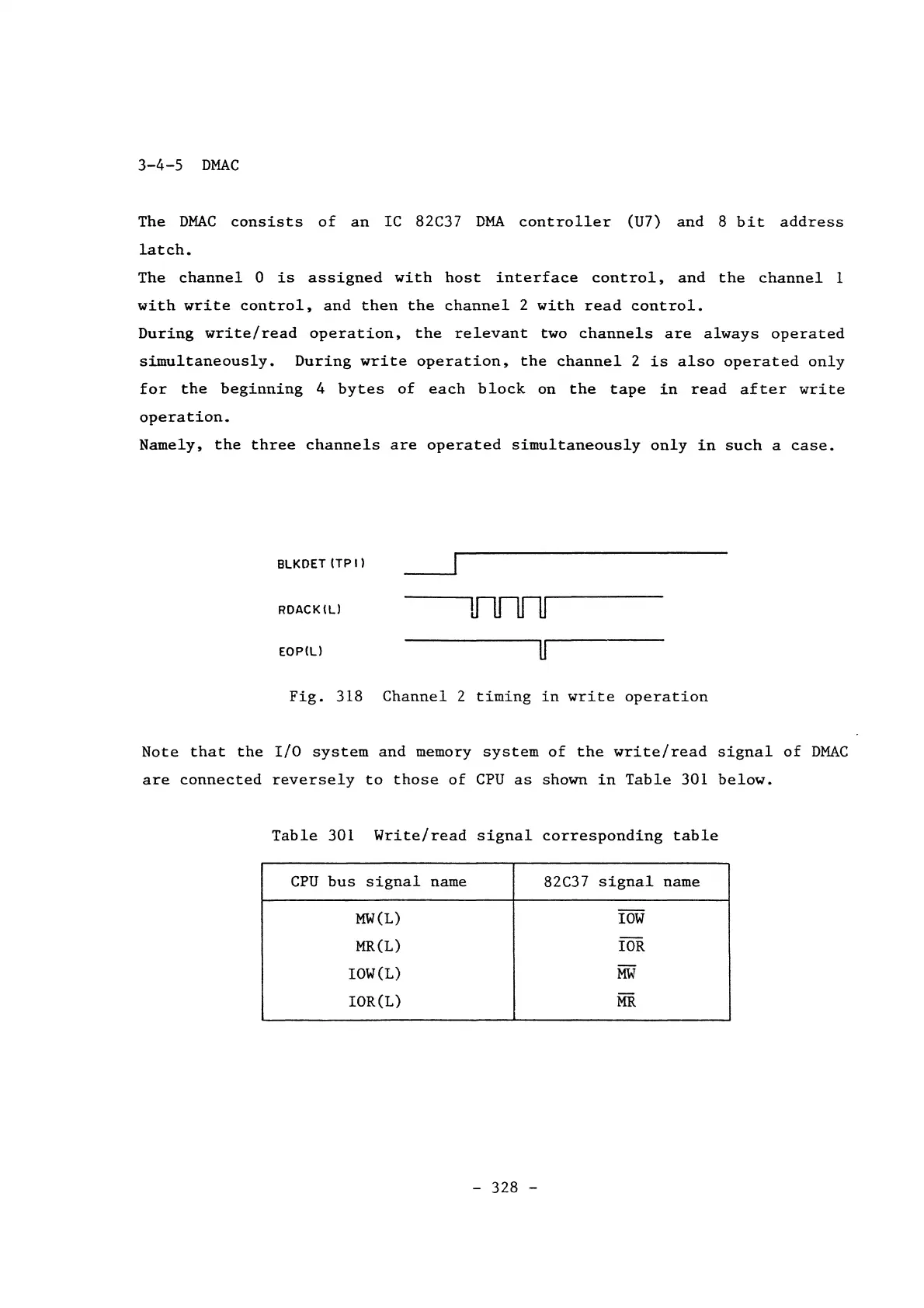

3-4-5 DMAC
The DMAC consists of an IC 82C37 DMA controller (Un and 8 bit address
latch.
The channel 0 is assigned with host interface control, and the channel 1
with write control, and then the channel 2 with read control.
During write/read operation, the relevant two channels are always operated
simultaneously. During write operation, the channel 2 is also operated only
for the beginning 4 bytes of each block on the tape in read after write
operation.
Namely, the three channels are operated simultaneously only in such a case.
BLKDET (TP I)
RDACK(U
EOP(U U
Fig. 318 Channel 2 timing in write operation
Note that the I/O system and memory system of the write/read signal of DMAC
are connected reversely to those of CPU as shown in Table 301 below.
Table 301 Write/read signal corresponding table
CPU bus signal name
82e37
signal name
MW(L) IOW
-
MR(L)
IOR
IOW(L)
MW
IOR(L)
MR
- 328 -
