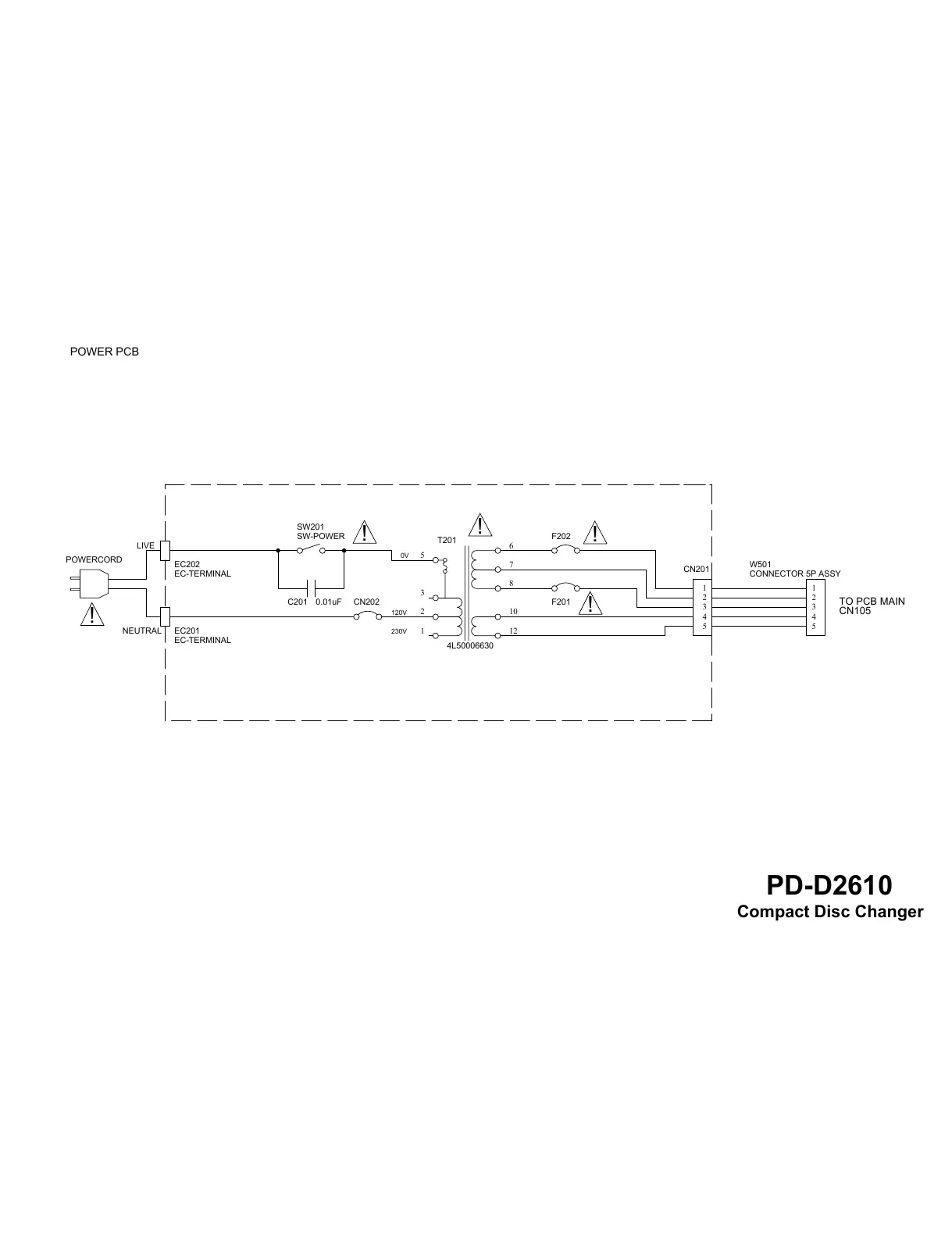

LIVE
NEUTRAL
TO PCB MAIN
CN105
POWERCORD
EC202
EC-TERMINAL
EC201
EC-TERMINAL
C201 0.01uF
SW201
SW-POWER
1
2
3
4
5
CN201
1
2
3
4
5
W501
CONNECTOR 5P ASSY
230V
0V
CN202
F202
F201
120V
2
6
12
10
8
5
1
3
7
T201
4L50006630
PD-D2610
Compact Disc Changer
!
!
!
POWER PCB
!
!
