Teac SL-D90 - PCB Assemblies and Parts Lists; Main PCB Assembly

SL-D90

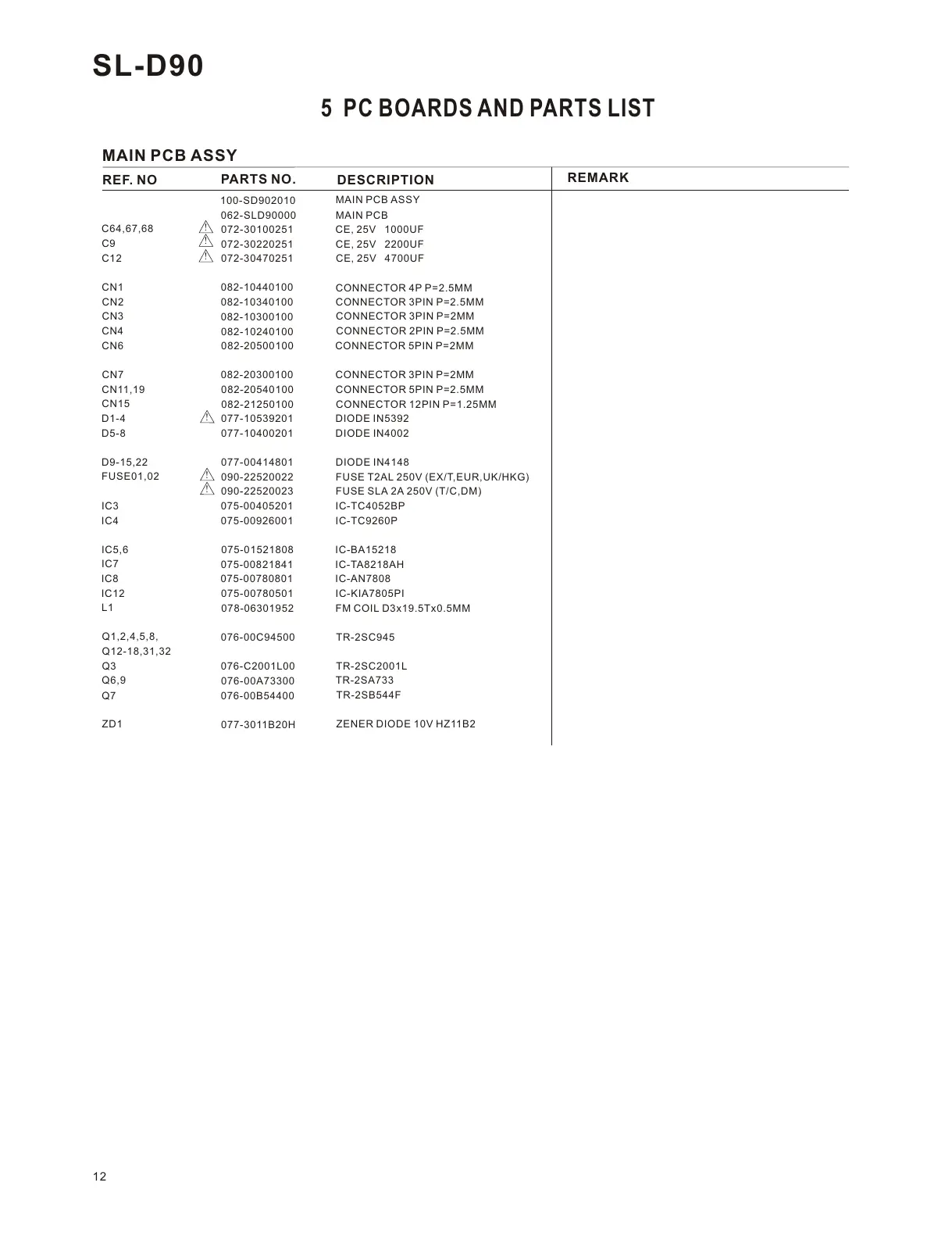

5 PC BOARDS AND PARTS LIST
12
REF. NO
PARTS NO.
100-SD902010
!
MAIN PCB
MAIN PCB ASSY
CE, 25V 1000UF
CE, 25V 4700UF
DIODE IN4002
072-30100251
072-30470251
077-10400201
062-SLD90000
C64,67,68
C12
C9
072-30220251
CE, 25V 2200UF
D5-8
CONNECTOR 4P P=2.5MM
082-10440100
CN1
DIODE IN5392
077-10539201
D1-4
CONNECTOR 3PIN P=2MM
082-10300100
CN3
CONNECTOR 3PIN P=2.5MM
082-10340100
CN2
!
!
!
CN4
082-10240100
CONNECTOR 2PIN P=2.5MM
CN15
082-21250100
CONNECTOR 12PIN P=1.25MM
CN6
082-20500100
CONNECTOR 5PIN P=2MM
CN7
082-20300100
CONNECTOR 3PIN P=2MM
CN11,19
082-20540100
CONNECTOR 5PIN P=2.5MM
D9-15,22
077-00414801
DIODE IN4148
MAIN PCB ASSY
DESCRIPTION
IC3
075-00405201
IC-TC4052BP
IC8
075-00780801
IC-AN7808
IC4
075-00926001
IC-TC9260P
IC5,6
075-01521808
IC-BA15218
IC7
075-00821841
IC-TA8218AH
IC12
075-00780501
IC-KIA7805PI
ZENER DIODE 10V HZ11B2
077-3011B20H
ZD1
Q3
076-C2001L00
TR-2SC2001L
L1
078-06301952
FM COIL D3x19.5Tx0.5MM
076-00C94500
TR-2SC945
Q1,2,4,5,8,
Q12-18,31,32
Q6,9
TR-2SA733
076-00A73300
076-00B54400
TR-2SB544F
Q7
REMARK
FUSE01,02
090-22520022
090-22520023
FUSE T2AL 250V (EX/T,EUR,UK/HKG)
FUSE SLA 2A 250V (T/C,DM)
!
!
