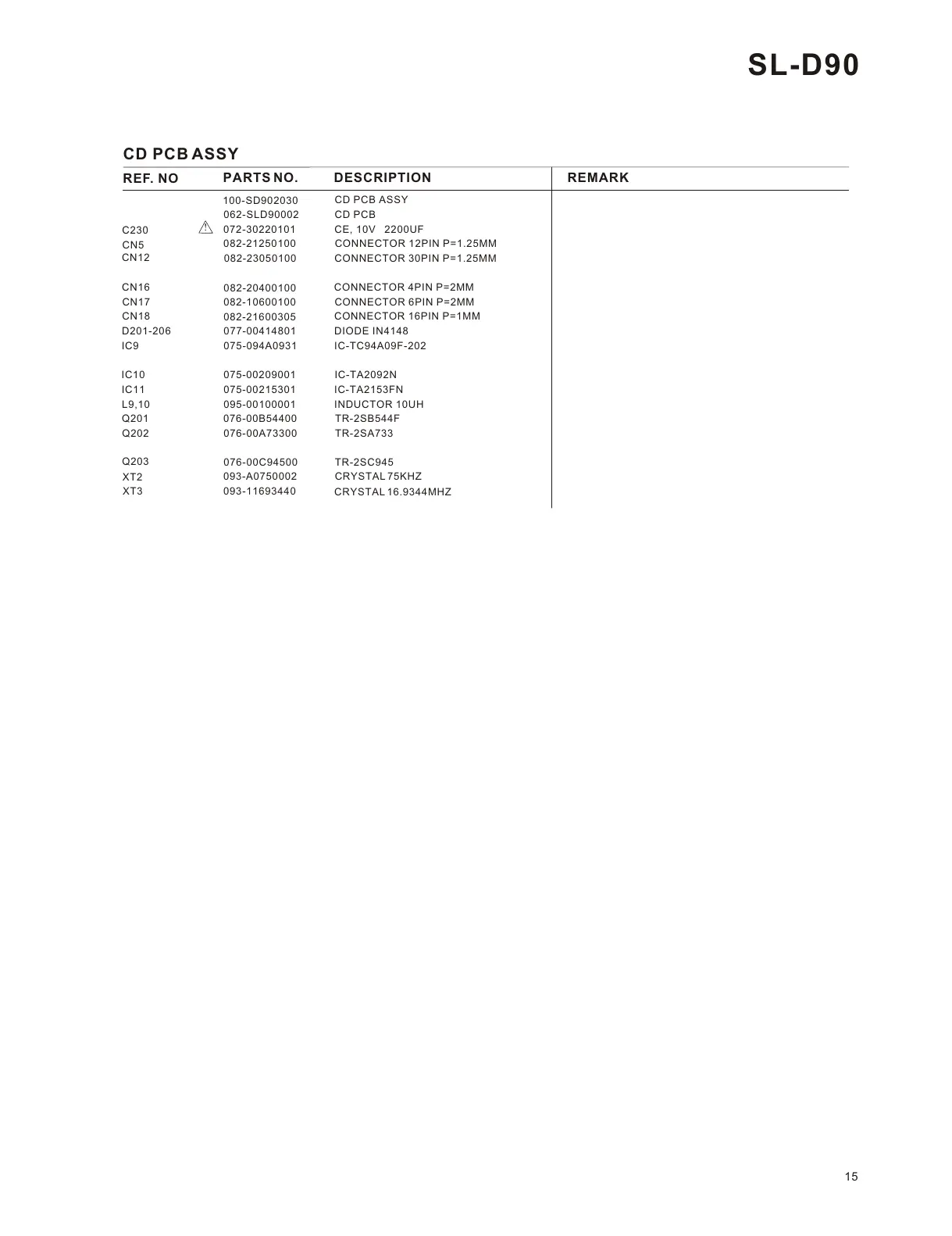

Teac SL-D90 - CD PCB Assembly

REF. NO
PARTS NO. DESCRIPTION
CD PCB ASSY
REMARK
100-SD902030
CD PCB
CD PCB ASSY
062-SLD90002
C230
072-30220101
CE, 10V 2200UF
CN17
082-10600100
CONNECTOR 6PIN P=2MM
CN5
082-21250100
CONNECTOR 12PIN P=1.25MM
CN12
082-23050100
CONNECTOR 30PIN P=1.25MM
CN16
082-20400100
CONNECTOR 4PIN P=2MM
CN18
082-21600305
CONNECTOR 16PIN P=1MM
D201-206
077-00414801
DIODE IN4148
IC9
075-094A0931
IC-TC94A09F-202
IC10
075-00209001
IC-TA2092N
IC11
075-00215301
IC-TA2153FN
INDUCTOR 10UH
095-00100001
L9,10
076-00C94500
TR-2SC945
Q203
Q202
TR-2SA733
076-00A73300
076-00B54400
TR-2SB544F
Q201
CRYSTAL 75KHZ
093-A0750002
XT2
CRYSTAL 16.9344MHZ
093-11693440
XT3
!
SL-D90
