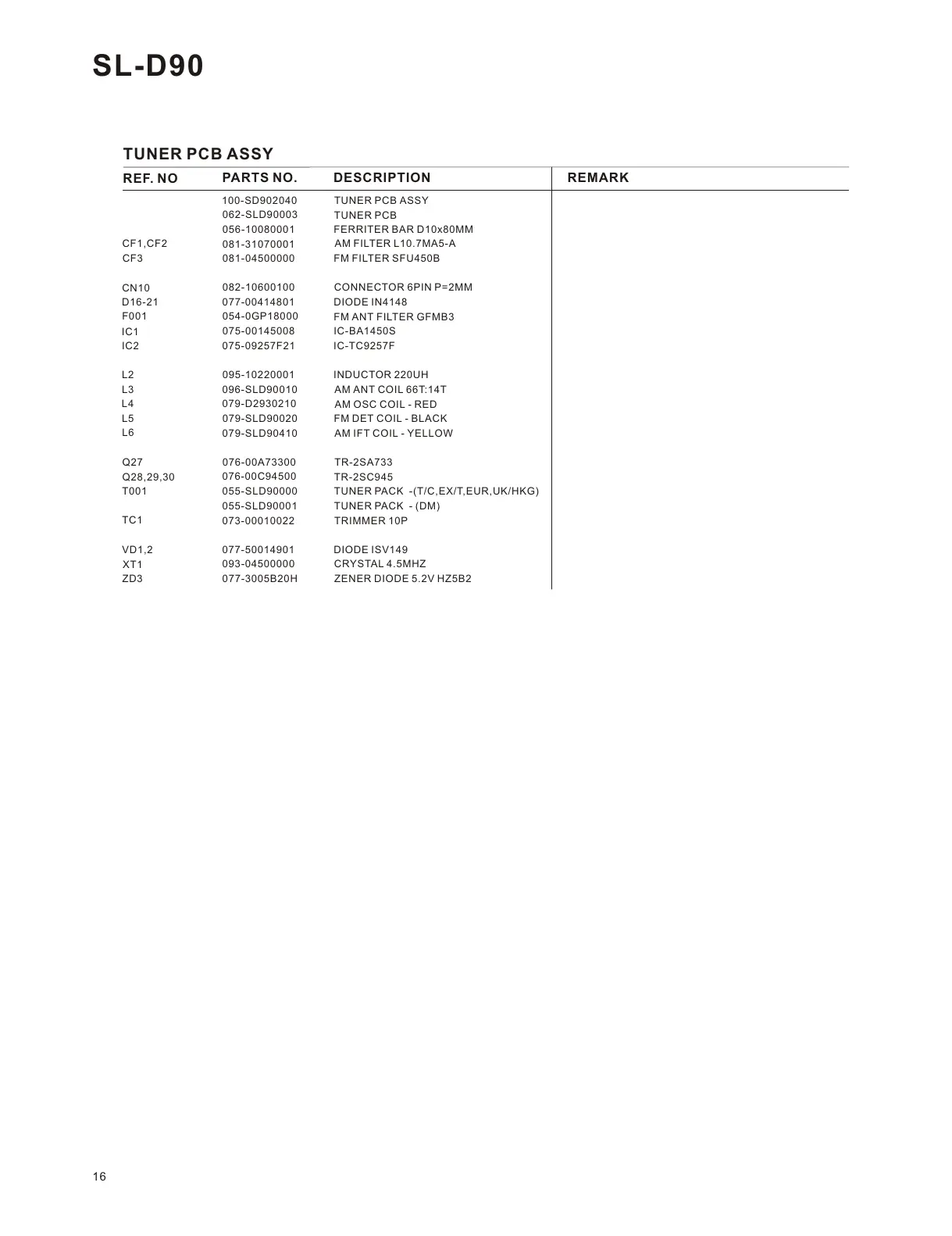

Teac SL-D90 - Tuner PCB Assembly

16
SL-D90
REF. NO
PARTS NO. DESCRIPTION
TUNER PCB ASSY
REMARK
100-SD902040
TUNER PCB
TUNER PCB ASSY
062-SLD90003
096-SLD90010
AM ANT COIL 66T:14T
056-10080001
FERRITER BAR D10x80MM
L3
AM FILTER L10.7MA5-A
081-31070001
CF1,CF2
FM FILTER SFU450B
081-04500000
CF3
CN10
082-10600100
CONNECTOR 6PIN P=2MM
D16-21
077-00414801
DIODE IN4148
F001
054-0GP18000
FM ANT FILTER GFMB3
IC1
075-00145008
IC-BA1450S
IC2
075-09257F21
IC-TC9257F
095-10220001
INDUCTOR 220UH
L2
079-D2930210
AM OSC COIL - RED
L4
079-SLD90020
FM DET COIL - BLACK
L5
079-SLD90410
AM IFT COIL - YELLOW
L6
DIODE ISV149
077-50014901
VD1,2
TRIMMER 10P
073-00010022
TC1
ZD3
ZENER DIODE 5.2V HZ5B2
CRYSTAL 4.5MHZ
093-04500000
XT1
077-3005B20H
TUNER PACK -(T/C,EX/T,EUR,UK/HKG)
055-SLD90000
T001
TUNER PACK - (DM)
055-SLD90001
TR-2SA733
076-00A73300
Q27
Q28,29,30
076-00C94500
TR-2SC945
