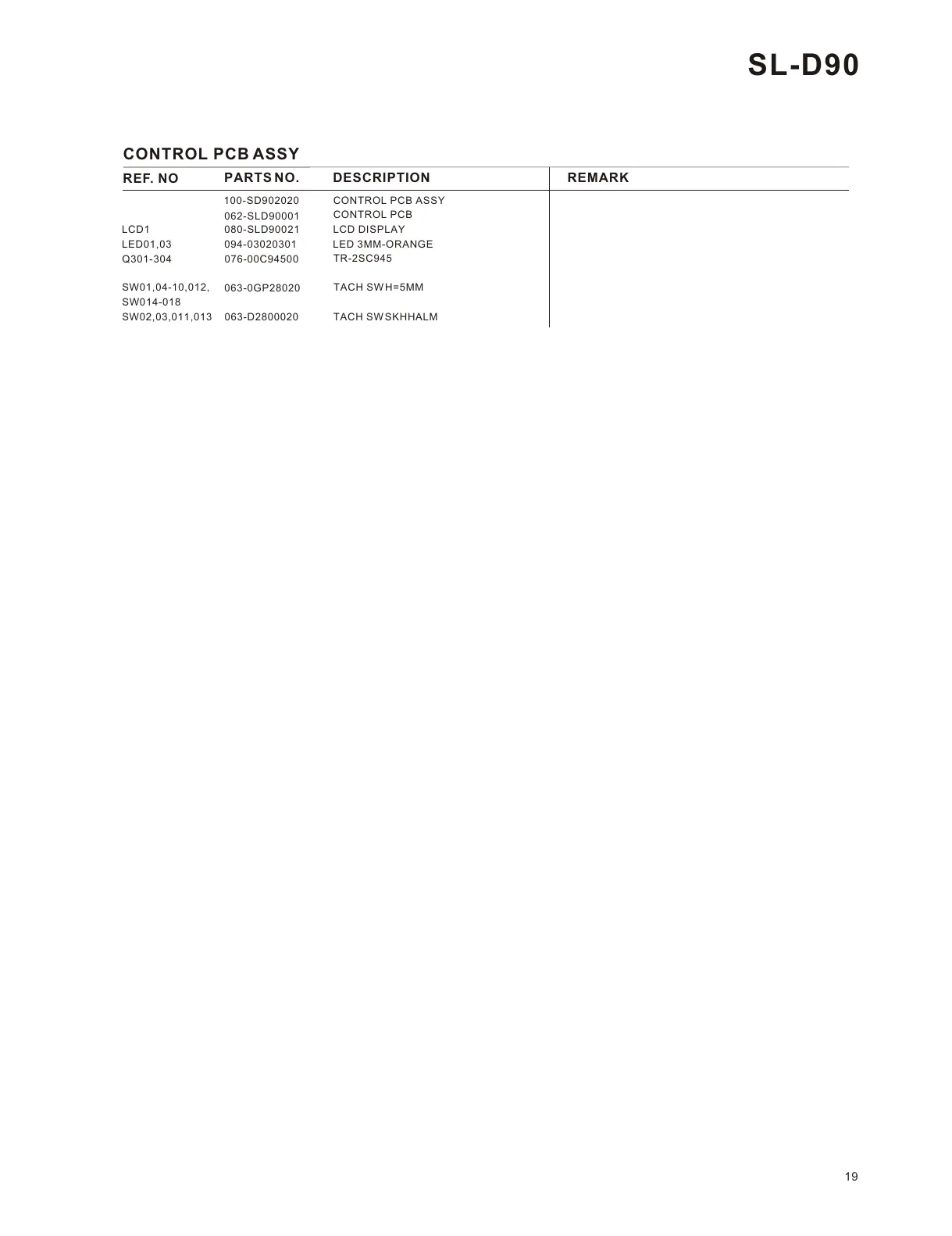

Teac SL-D90 - Control PCB Assembly

REF. NO
PARTS NO. DESCRIPTION
CONTROL PCB ASSY
REMARK
100-SD902020
CONTROL PCB ASSY
062-SLD90001
CONTROL PCB
LED01,03
094-03020301
LED 3MM-ORANGE
076-00C94500
TR-2SC945
Q301-304
080-SLD90021
LCD DISPLAY
LCD1
SW01,04-10,012,
SW014-018
063-0GP28020
TACH SW H=5MM
SW02,03,011,013
063-D2800020
TACH SW SKHHALM
SL-D90
