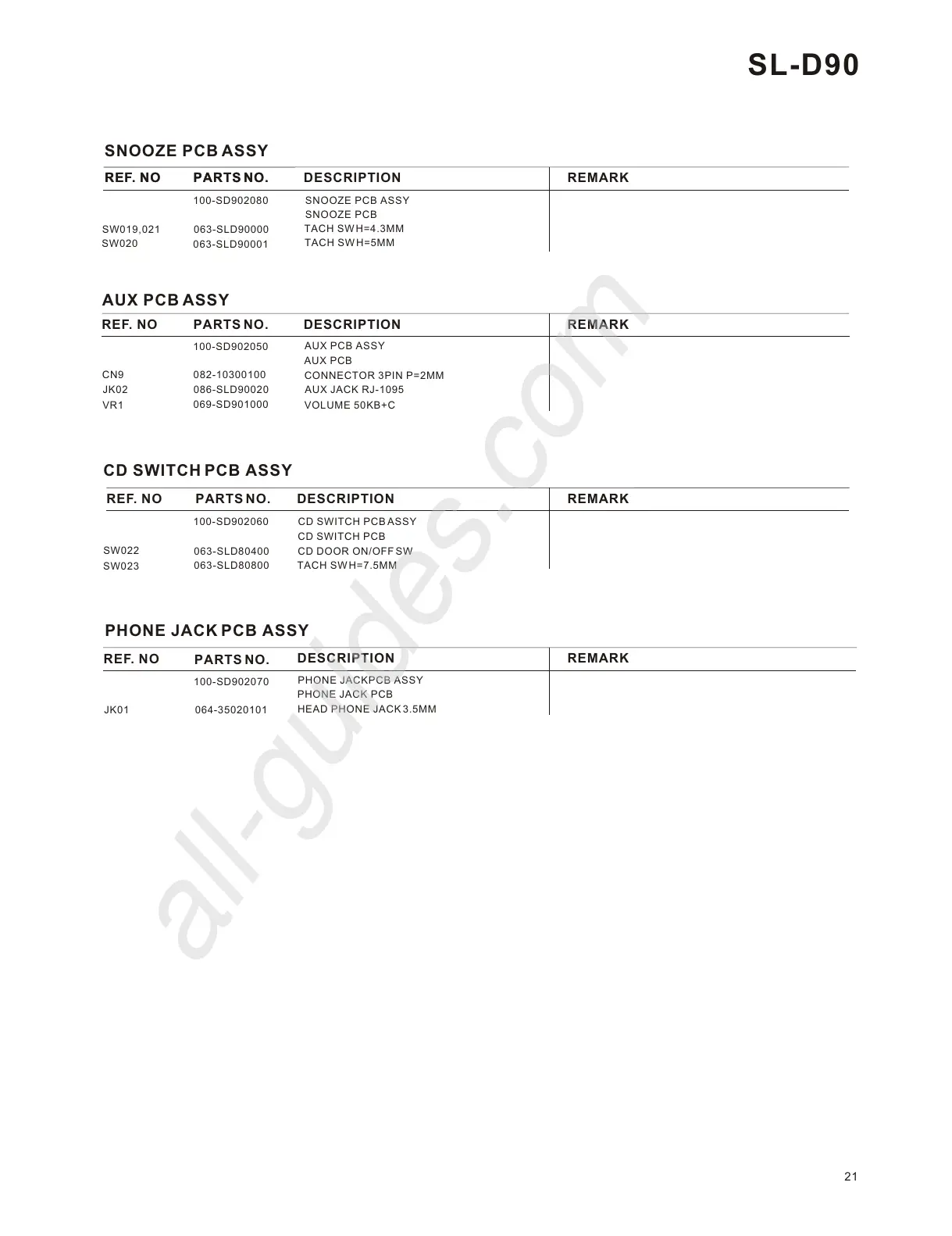

Teac SL-D90 - Miscellaneous PCB Assemblies

SNOOZE PCB ASSY
REF. NO
PARTS NO.
SNOOZE PCB ASSY
100-SD902080
REF. NO
PARTS NO. DESCRIPTION
REF. NO
PARTS NO. DESCRIPTION
AUX PCB ASSY
100-SD902050
AUX PCB
AUX PCB ASSY
SW020
063-SLD90001
TACH SW H=5MM
SW019,021
063-SLD90000
TACH SW H=4.3MM
CONNECTOR 3PIN P=2MM
082-10300100
CN9
JK02
086-SLD90020
AUX JACK RJ-1095
SNOOZE PCB
VOLUME 50KB+C
069-SD901000
VR1
SL-D90
21
REMARK
REMARK
REF. NO
PARTS NO. DESCRIPTION
CD SWITCH PCB ASSY
100-SD902060
CD SWITCH PCB
CD SWITCH PCB ASSY
SW023
063-SLD80800
TACH SW H=7.5MM
SW022
063-SLD80400
CD DOOR ON/OFF SW
REMARK
PHONE JACK PCB ASSY
100-SD902070
PHONE JACKPCB ASSY
PHONE JACK PCB
REF. NO
PARTS NO.
DESCRIPTION
JK01
064-35020101
HEAD PHONE JACK 3.5MM
REMARK
