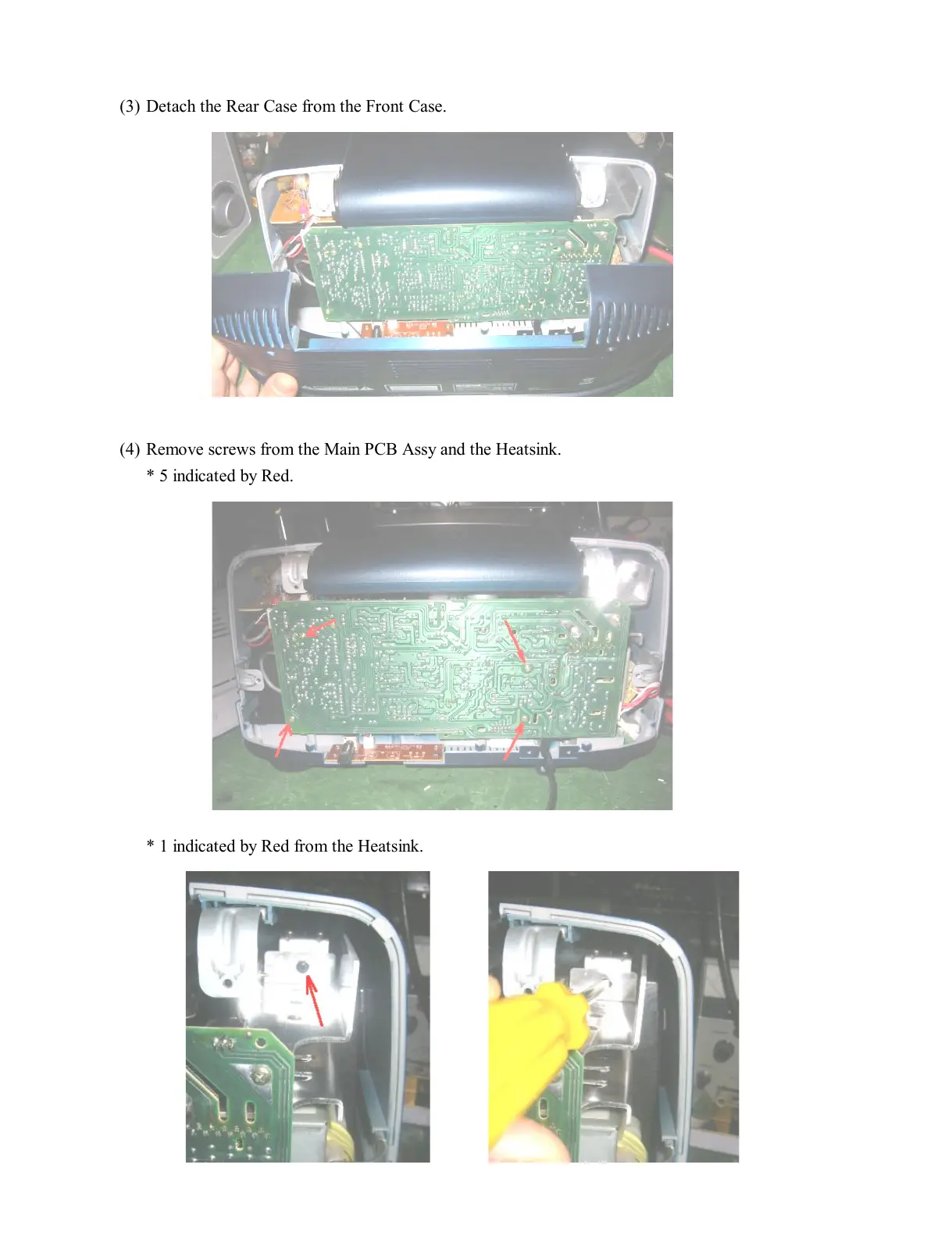

(3) Detach the Rear Case from the Front Case.
(4) Remove screws from the Main PCB Assy and the Heatsink.
* 5 indicated by Red.
* 1 indicated by Red from the Heatsink.
