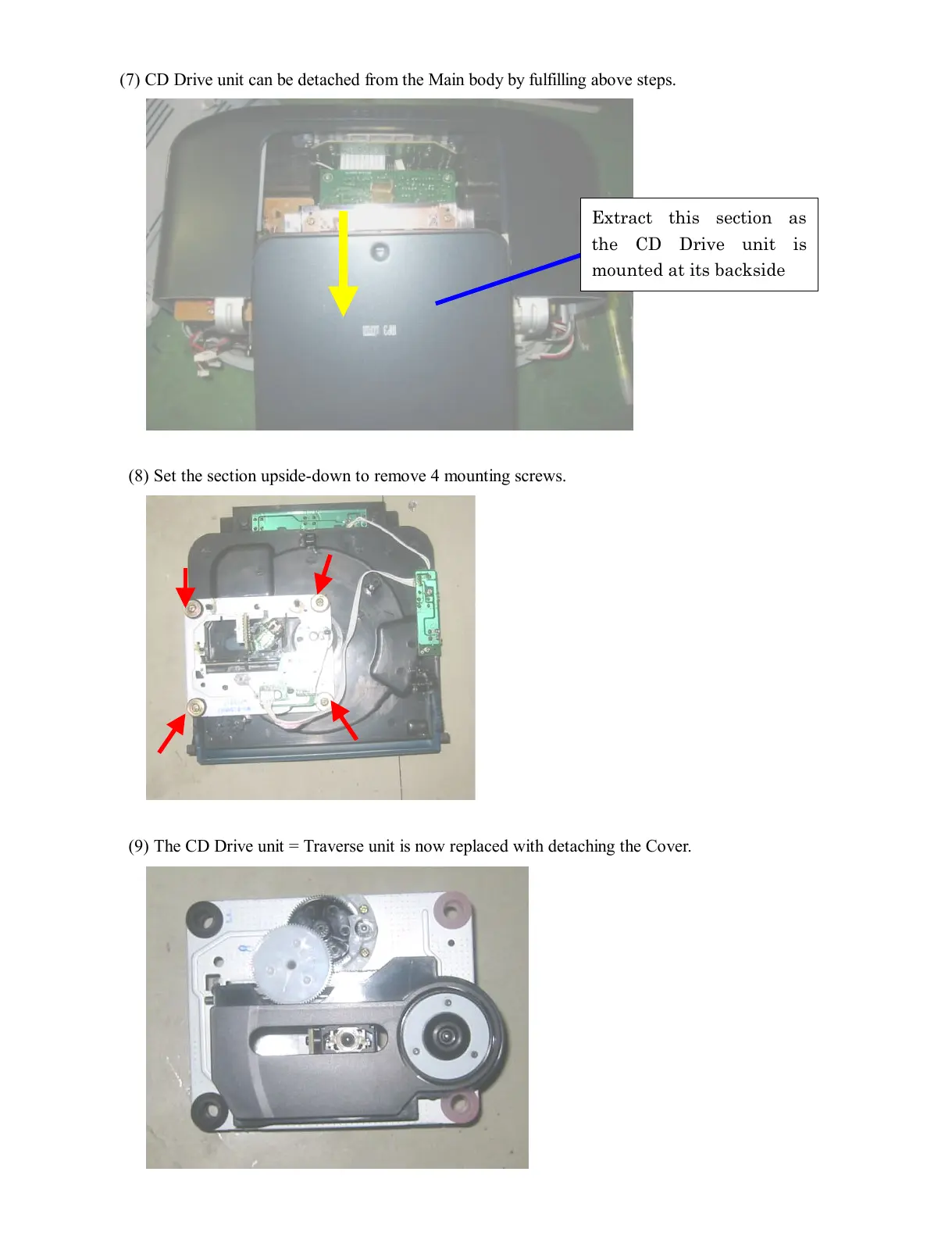

(7) CD Drive unit can be detached from the Main body by fulfilling above steps.
(8) Set the section upside-down to remove 4 mounting screws.
(9) The CD Drive unit = Traverse unit is now replaced with detaching the Cover.
Extract this section as
the CD Drive unit is
mounted at its backside
