Teac SL-D90 Service Manual

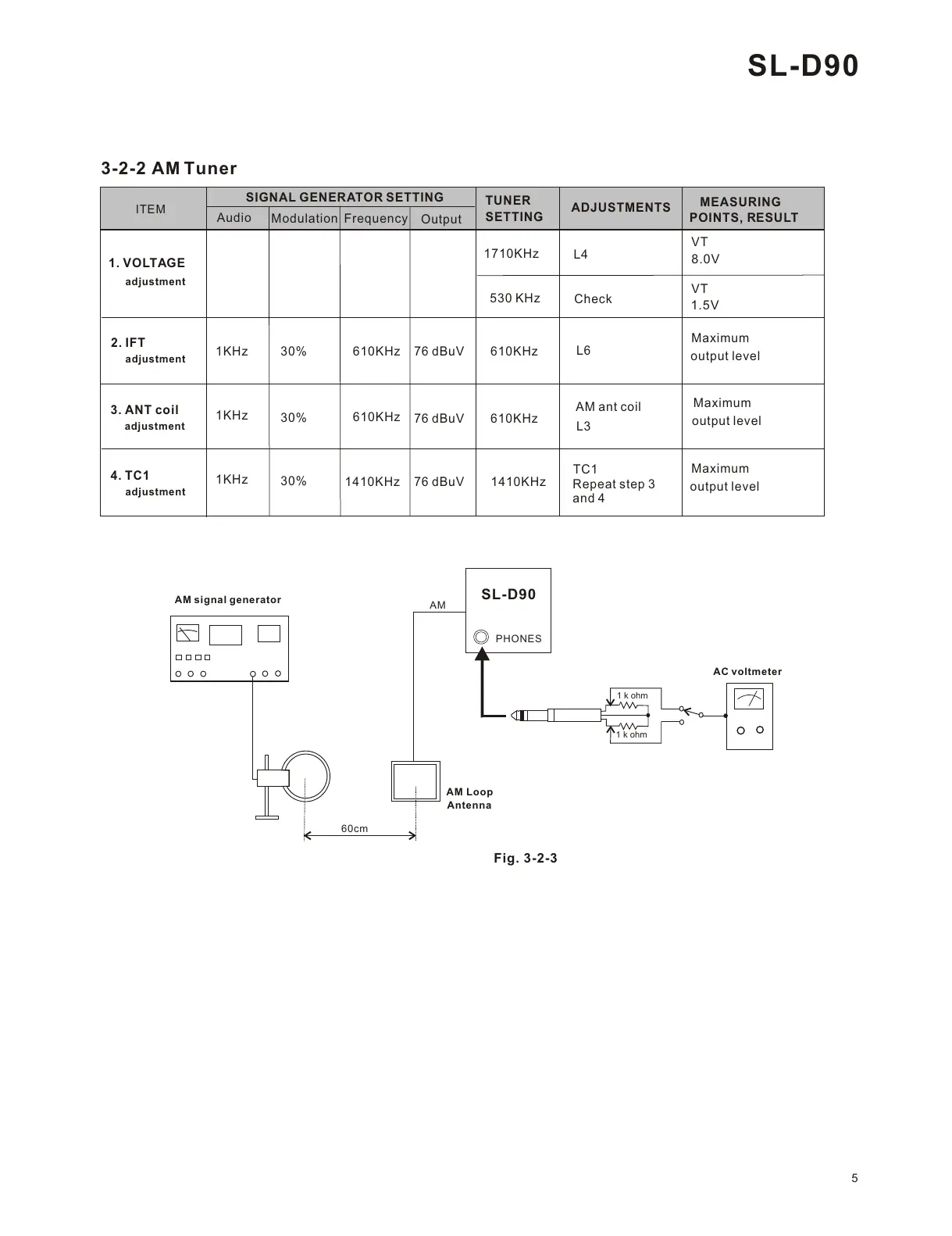

Fig. 3-2-3
AM Loop
Antenna
60cm
AM signal generator
SL-D90
PHONES
AM
AC voltmeter
1 k ohm
1 k ohm
3-2-2 AM Tuner
ITEM
SIGNAL GENERATOR SETTING
TUNER
ADJUSTMENTS
MEASURING
POINTS, RESULT
Audio
Modulation
Frequency
Output
1. VOLTAGE
adjustment
2. IFT
adjustment
3. ANT coil
adjustment
4. TC1
adjustment
1710KHz
530 KHz
610KHz
30%
1KHz
1410KHz
L6
TC1
AM ant coil
Check
L4
VT
Repeat step 3
and 4
76 dBuV
8.0V
30%
30%
610KHz
SETTING
VT
1.5V
output level
Maximum
1KHz
610KHz
76 dBuV
610KHz
L3
Maximum
output level
1KHz
76 dBuV
1410KHz
Maximum
output level
SL-D90
5
