Teac T-X110 User Manual

| I“ALTIU

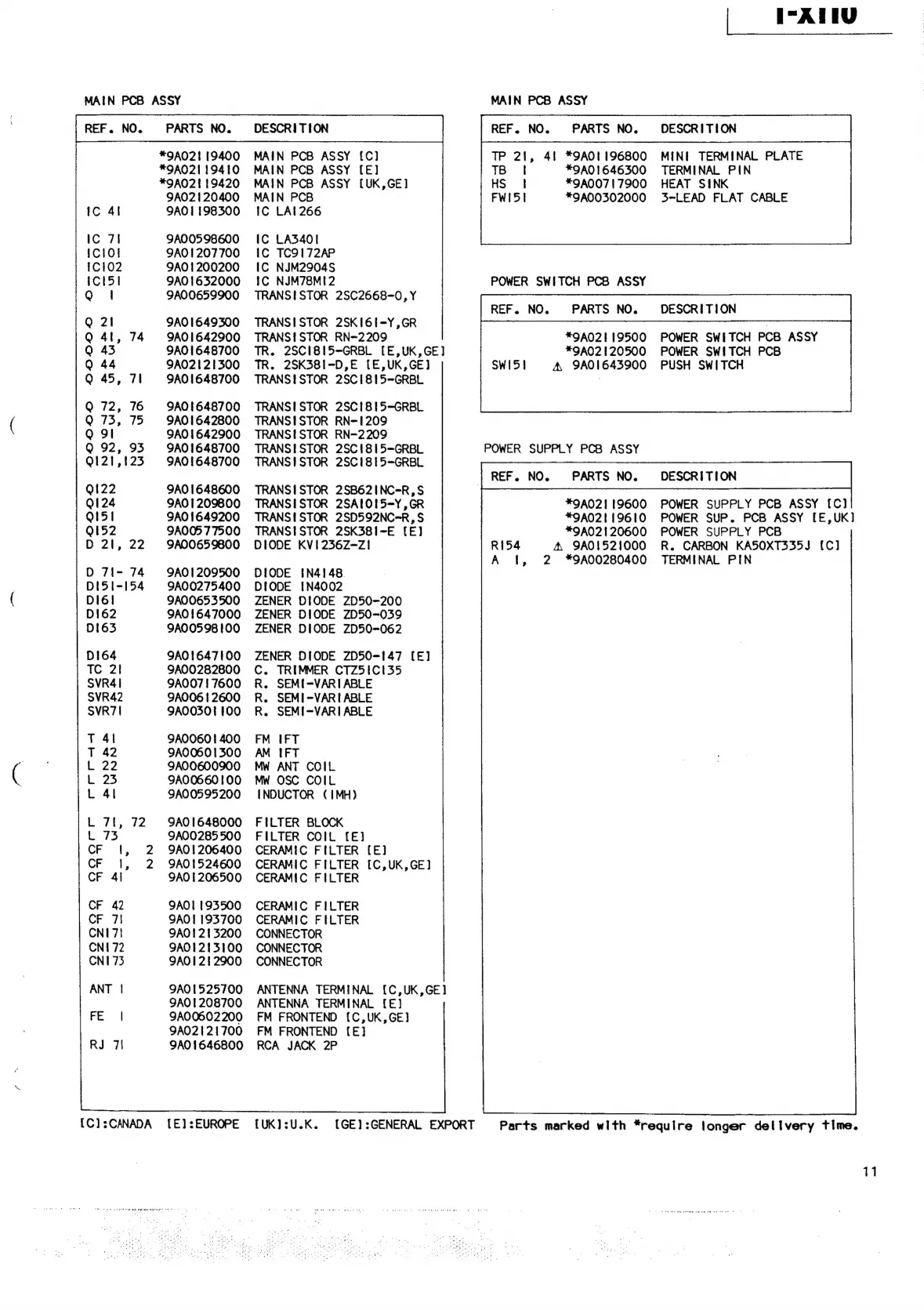

MAIN PCB ASSY MAIN PCB ASSY
REF. NO. PARTS NO. DESCRITION REF. NO. PARTS NO. DESCRITION
*9A02119400 MAIN PCB ASSY [C] » 41 *9A01196800 MINI TERMINAL PLATE
*9A02119410 MAIN PCB ASSY [E] *9A01646300 TERMINAL PIN
*9A02119420 MAIN PCB ASSY (UK,GE] *9A00717900 HEAT SINK
9A02120400 MAIN PCB *9A00302000 3-LEAD FLAT CABLE
Ic 4! 9AO01198300 IC LA! 266
Ic 71 9A00598600 IC LA340I
ICO} 9AOI207700 iC TC9172AP
C102 9A01200200 IC NJM2904S
iCI5I 9A01632000 {IC NJM78MI2 POWER SWITCH PCB ASSY
Q | 9A00659900 TRANSISTOR 2SC2668-0,Y
REF. NO. PARTS NO. DESCRITION
Q 2! 9A01649300 TRANSISTOR 2SKI61-Y,GR :
Q 41, 74 9A0I1642900 TRANSISTOR RN=2209 *9A02119500 POWER SWITCH PCB ASSY
Q 43 9A01648700 TR. 2SCI815-GRBL [E,UK,GE] *9A02120500 POWER SWITCH PCB
Q 44 9A02121300 TR. 2SK38I-D,E [E,UK,GE] SW151 4, 9A0I643900 PUSH SWITCH
Q 45, 7! 9A0I1648700 TRANSISTOR 2SC1815-GRBL :
Q 72, 76 9A0'648700 TRANSISTOR 2SCI8I5=-GRBL
Q 73, 75 Q9AOI642800 TRANSISTOR RN-1209
Q gl 9A01642900 TRANSISTOR RN-2209
Q 92, 93 9A0I648700 TRANSISTOR 2SCI815-GRBL POWER SUPPLY PCB ASSY
QI21,!23 9AO!648700 TRANSISTOR 2SCI815=-GRBL
REF. NO. PARTS NO. DESCRITION
Qi22 9A01648600 TRANSISTOR 2SB62INC-R,S |
Q124 9AO0I1209800 TRANSISTOR 2SAI0!5-Y,GR ¥9A02119600 POWER SUPPLY PCB ASSY [C]
QI51 9A01649200 TRANSISTOR 2SD592NC-R,S *9A02119610 POWER SUP. PCB ASSY [E,UK]
QI52 9A00577500 TRANSISTOR 2SK38I-E [6] *9A02120600 POWER SUPPLY PCB
D 21, 22 9A00659800 DIODE KVI236Z-Z! R154 A 9A0I521000 R. CARBON KAS5OXT335J {C]
A !, 2 *9A00280400 TERMINAL PIN
D 71- 74 9AOI209500 DIODE 1N4148.
DIS!t-154 9A00275400 DIODE IN4002
DI6! 9A00653500 ZENER DIODE ZD50-200
D162 9A01647000 ZENER DIODE ZD50-039
D163 9A00598100 ZENER DIODE ZD50-062
DI64 9A01647100 ZENER DIODE ZD50-147 [6]
TC 2! 9A00282800 C. TRIMMER CTZ5ICI35
SVR4| 9A00717600 R. SEMI-VARI ABLE
SVR42 9A00612600 R. SEMI-VARIABLE
SVR7| 9A0D0501100 R. SEMI-VARI ABLE
T 41 9A00601400 FM IFT
T 42 9A00601300 AM IFT
L 22 9A00600900 MW ANT COIL
L 23 9A00660!00 Mw OSC COIL
L 4l 9A00595200 INDUCTOR (1MH)
L 7!, 72 9A01648000 FILTER BLOCK
L 73 9A00285500 FILTER COIL [E}
CF 1, 2 9A01206400 CERAMIC FILTER [E])
CF 1, 2 QAOI524600 CERAMIC FILTER [C,UK,GE]
CF 4I 9A01206500 CERAMIC FILTER
CF 42 9A01193500 CERAMIC FILTER
CF 71 9A01193700 CERAMIC FILTER
CNI7! 9A01213200 CONNECTOR
CN! 72 9ADI213100 CONNECTOR
CNI73 9A01212900 CONNECTOR
ANT | 9A01525700 ANTENNA TERMINAL [C,UK,GE]
9AQ01208700 ANTENNA TERMINAL [€}
FE | 9A00602200 FM FRONTEND [(C,UK,GE]
9A02121700 FM FRONTEND [(€}
RJ 71 9A01646800 RCA JACK 2P
[C):CANADA [E]:EUROPE [UK]:U.K. (GE]:GENERAL EXPORT Parts marked with “require tonger delivery time.
11
