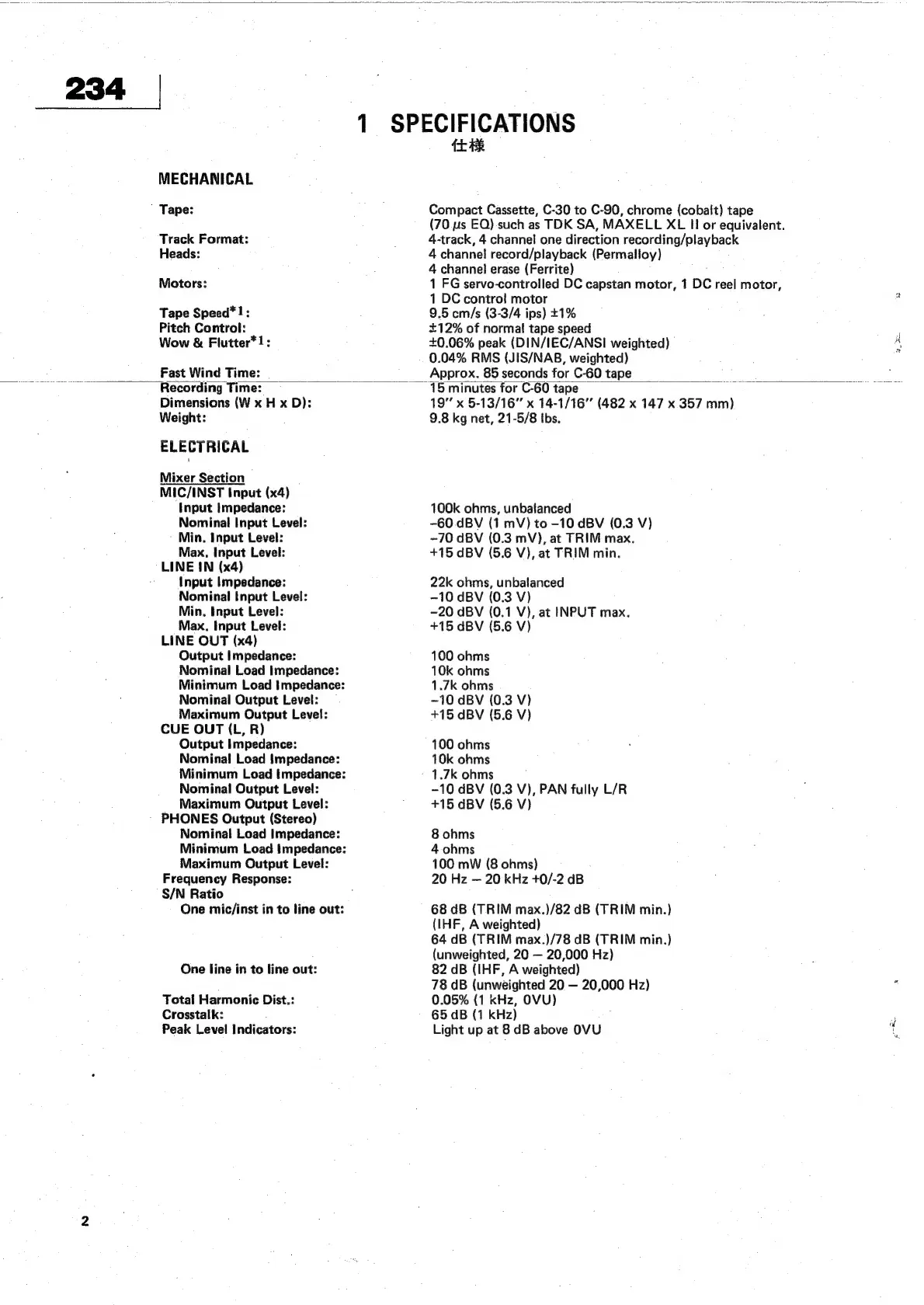

Teac Tascam SYNCASET 234 - Specifications

MECHANICAL
' Tape:
Track Format:
Heads:
Motors:
Tape Speed*!:
Pitch Control:
Wow & Flutter*1:
Fast Wind Time:
1 SPECIFICATIONS
Ete
Compact Cassette, C-30 to C-90, chrome (cobalt) tape
(70 us EQ) such as TDK SA, MAXELL XL HI or equivalent.
4-track, 4 channel one direction recording/playback
4 channel record/playback (Permalloy)
4 channel erase (Ferrite)
1 FG servo-controlled DC capstan motor, 1 De reel motor,
1 DC contro! motor
9.5 cm/s (3-3/4 ips) £1%
£12% of normal tape speed
+0.06% peak (DIN/IEC/ANSI weighted)
0.04% RMS (JIS/NAB, weighted)
_Approx. 85 seconds for C-60 tape
Recording Time:
Dimensions (W x H x D):
Weight:
ELECTRICAL
Mixer Section
MIC/INST Input (x4)
Input Impedance:
Nominal Input Level:
Min. Input Level:
Max, Input Level:
LINE IN (x4)
Input Impedance:
Nominal tnput Level:
Min, Input Level:
Max. Input Level:
LINE OUT (x4)
Output Impedance:
Nominal Load Impedance:
Minimum Load Impedance:
Nominal Output Level:
Maximum Output Level:
CUE OUT (L, R)
Output Impedance:
Nomina! Load Impedance:
Minimum Load Impedance:
Nominal Output Level:
Maximum Output Level:
PHONES Output (Stereo)
Nominal Load Impedance:
Minimum Load Impedance:
Maximum Output Level:
Frequency Response:
S/N Ratio
One mic/inst in to line out:
One line in to line out:
Total Harmonic Dist.:
Crosstalk:
Peak Level Indicators:
~ 15 minutes for C-60 tape
19” x 5-13/16" x 14-1/16” (482 x 147 x 357 mm)
9.8 kg net, 21-5/8 tbs.
100k ohms, unbalanced
-60 dBV (1 mV) to -10 dBV (0.3 V)
~70 dBV (0.3 mV), at TRIM max.
+15 dBV (5.6 V), at TRIM min.
22k ohms, unbalanced
-10 dBV (0.3 V)
-20 dBV (0.1 V), at INPUT max.
+15 dBV (5.6 V)
100 ohms
10k ohms
1.7k ohms
~10 dBV (0.3 V)
+15 dBV (5.6 V)
100 ohms
10k ohms
1.7k ohms
-10 dBV (0.3 V), PAN fully L/R
+15 dBV (5.6 V)
8 ohms
4 ohms
100 mW (8 ohms)
20 Hz — 20 kHz +0/-2 dB
68 dB (TRIM max.)/82 dB (TRIM min.)
(IHF, A weighted)
64 dB (TRIM max.)/78 dB (TRIM min.)
(unweighted, 20 — 20,000 Hz)
82 dB (IHF, A weighted)
78 dB (unweighted 20 — 20,000 Hz)
0.05% (1 kHz, OVU)
65 dB (1 kHz)
Light up at 8 dB above OVU
