14

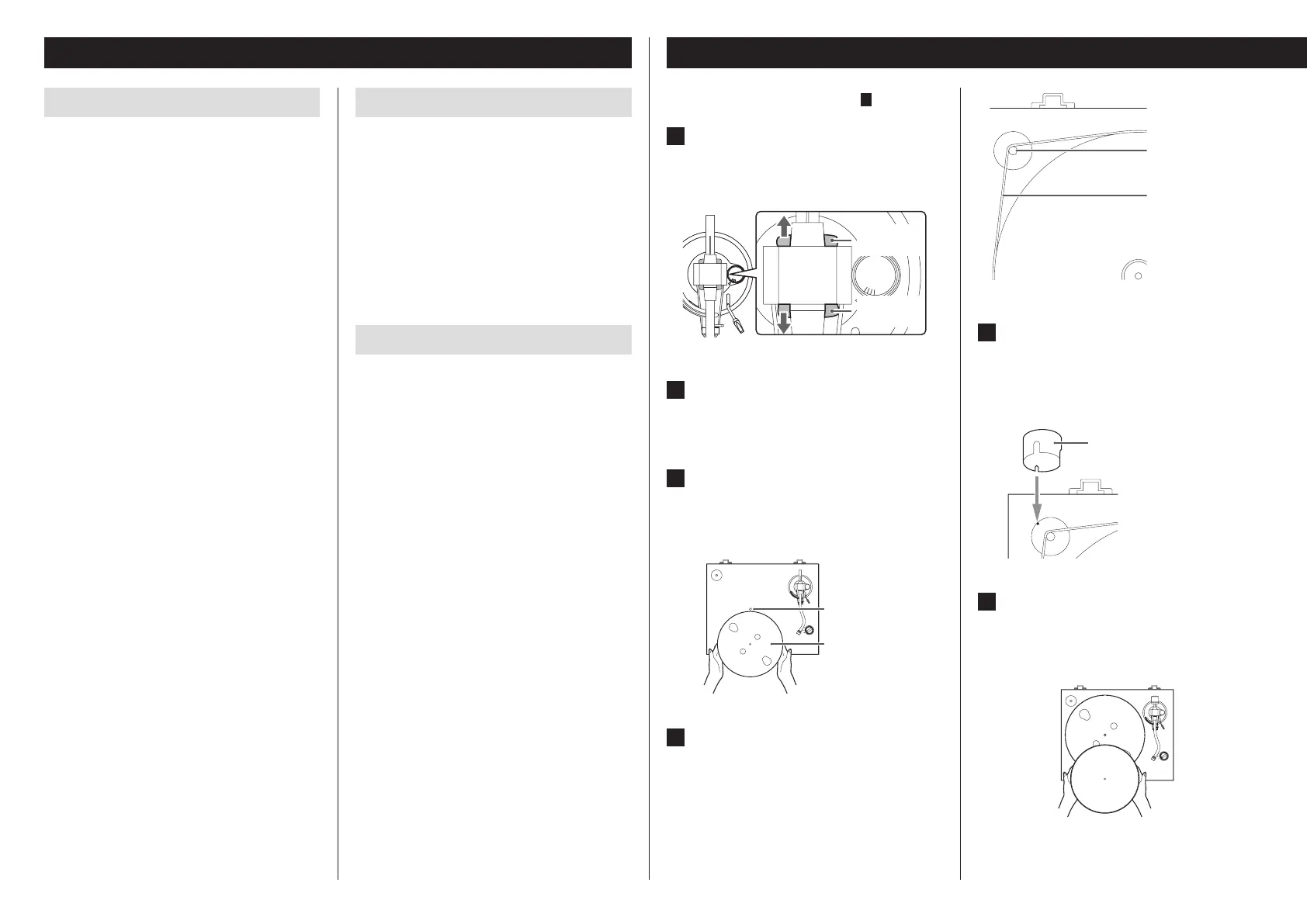

Before use (continued)
Keep the unit in standby while setting it up (
F
on page16).
1 Cushions are attached to the tone arm
for use during transportation. Remove
them in the directions of the arrows.
A
N
T
I
–
S
K
A
T
I
N
G
3
0
A
N
T
I
–
S
K
A
T
I
N
G
3
0
A
N
T
I
–
S
K
A
T
I
N
G
3
0
Cushion for
transportation
Cushion for
transportation
2 Place the unit on a at surface.
Place it on a flat surface so that the record can be accurately
traced.
3 Install the turntable (platter).
Align the turntable (platter) with the center shaft and
install it.
o Place the large side of the hole down.
Center shaft
Turntable (platter)
4 Loop the belt around the motor pulley.
Loop the included flat belt around the outside of the
turntable (platter), and then loop the belt around the
motor pulley.
o Be careful not to let the rubber become twisted.
o Rotate the turntable (platter) several times to make
sure that the flat belt is secure.
Motor pulley
Flat belt
5 Install the pulley cover.
Align the small cutout in the pulley cover with the small
protuberance on the pulley, as shown in the illustration
below.
o If these are not aligned, the pulley cover will slant.
Pulley cover
6 Place the felt mat on the turntable
(platter).
Place the included felt mat on the turntable (platter)
before using it.
Preparing the record player
Precautions for use
o Do not place anything on the dust cover. Objects on the
cover might cause noise due to vibrations or fall off, espe-
cially during playback.
o Avoid placing the unit in direct sunlight, close to a source
of heat or in other similar conditions. Do not place the unit
on top of an amplifier or other equipment that might gen-
erate heat that exceeds the operating temperature range of
this unit. Doing so could cause discoloration, deformation
or malfunction.
o As the unit could become warm during operation, always
leave sufficient space around it for ventilation. When
installing this unit, leave a little space (at least 20cm (8"))
between it and other devices and walls to allow good heat
dissipation.
When placing it in a rack, for example, leave at least 35cm
(133/4") open above it and 10cm (4") open behind it.
Failure to provide these gaps could cause heat to build up
inside and result in fire.
o DO NOT MOVE THE UNIT DURING PLAYBACK. During play-
back, the record rotates. Do not lift or move the unit during
playback. Doing so may damage the record, the stylus, the
cartridge or the unit.
o Always remove the record before relocating or moving this
unit. Moving the unit with a record on the turntable (plat-
ter) could damage the record, the stylus and the cartridge
or could cause a malfunction.
o The voltage supplied to the unit should match the voltage
as printed on the rear panel. If you are in any doubt regard-
ing this matter, consult an electrician.
Maintenance
If the surface of the unit gets dirty, wipe it with a soft cloth or
use diluted mild liquid soap. Allow the surface of the unit to dry
completely before using.
o Do not use chemical cleaning cloths, thinner or similar sub-
stances as they could damage the surface of the unit.
V
CAUTION
For safety, disconnect the power cord from the socket before
cleaning.
Using the TEAC Global Site
You can download updates for this unit from the TEAC Global
Site: http://teac-global.com/
In the TEAC Downloads section, click the desired language to
open the Downloads website page for that language.
