EN
9
A

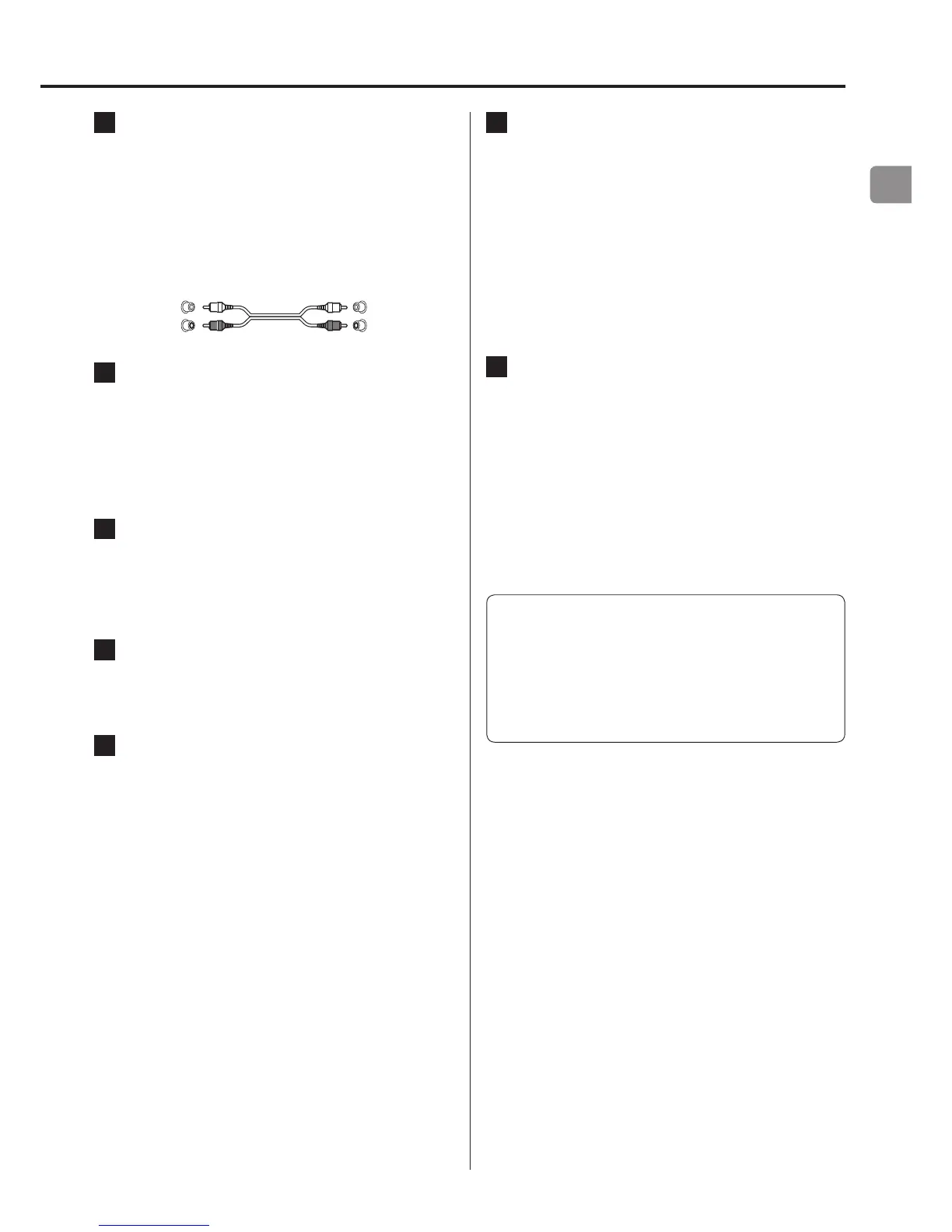

Analog audio input connectors (LINE IN)
Use these to input stereo analog audio. Connect the audio
output connectors of a cassette deck, CD player or other audio
output equipment to these.
Use commercially-available RCA audio cables for
connections.
Connect this unit's R input connector to the R output connec-
tor of the audio output device, and this unit's L input connector
to the L output connector of the other device.
White (L)
Red (R)
White (L)
Red (R)
B
CLOCK SYNC input connector (10MHz IN)
Input a synchronization signal (clock sync) here.
To input a 10MHz oscillator signal (sine wave output), connect
the oscillator output here.
o Use a commercially-available BNC coaxial cable (50 Ω) for
connection.
o Clock sync is possible when the input source is USB.
C
RCA COAXIAL digital audio input connector
Use this to input digital audio. Connect the coaxial digital audio
output connector of a digital audio device to it.
Use a commercially-available RCA coaxial digital cable
for connection.
D
OPTICAL digital audio input connector
Use this to input digital audio. Connect the optical digital audio
output connector of a digital audio device to it.
Use a commercially-available optical digital cable for connection.
E
Analog audio output connectors (LINE OUT)
These output 2 channels of analog audio. Connect these XLR or
RCA connectors to a stereo amplifier or powered speakers.
Use commercially available cables for connections.
XLR: balanced XLR cables
RCA: RCA audio cables
Connect this unit's R connector to the R connector of the
amplifier and its Lconnector to the L connector of the amplifier.
o See“Line output” on page 19 for analog output settings.
F
USB port
Use to input digital audio from a computer. Connect it to a
computer's USB port.
Use a commercially-available USB2.0 cable (A-B type) for
this connection.
ATTENTION
Before connecting a computer that is running a Windows OS, you
must install the dedicated driver on the computer (page 20).
Proper connection is not possible with a computer that does
not have this driver installed.
G
Power inlet (~IN)
Insert the included power cord here.
After completing all other connections, insert the power plug
into a power outlet.
V
Use only the included power cord. Use of other
power cords could result in fire or electric shock.
Unplug the cord from the outlet when not using
the unit for a long time.
V
Complete all other connections before turning
the unit on.
o Carefully read the manuals of the devices that you are connect-
ing and follow their instructions when making connections.
o Do not bundle connecting cables with power cords. Doing so
could cause noise.
o Connect all plugs completely.
