Teac V-970X - Exploded View-3 (V-970 X)

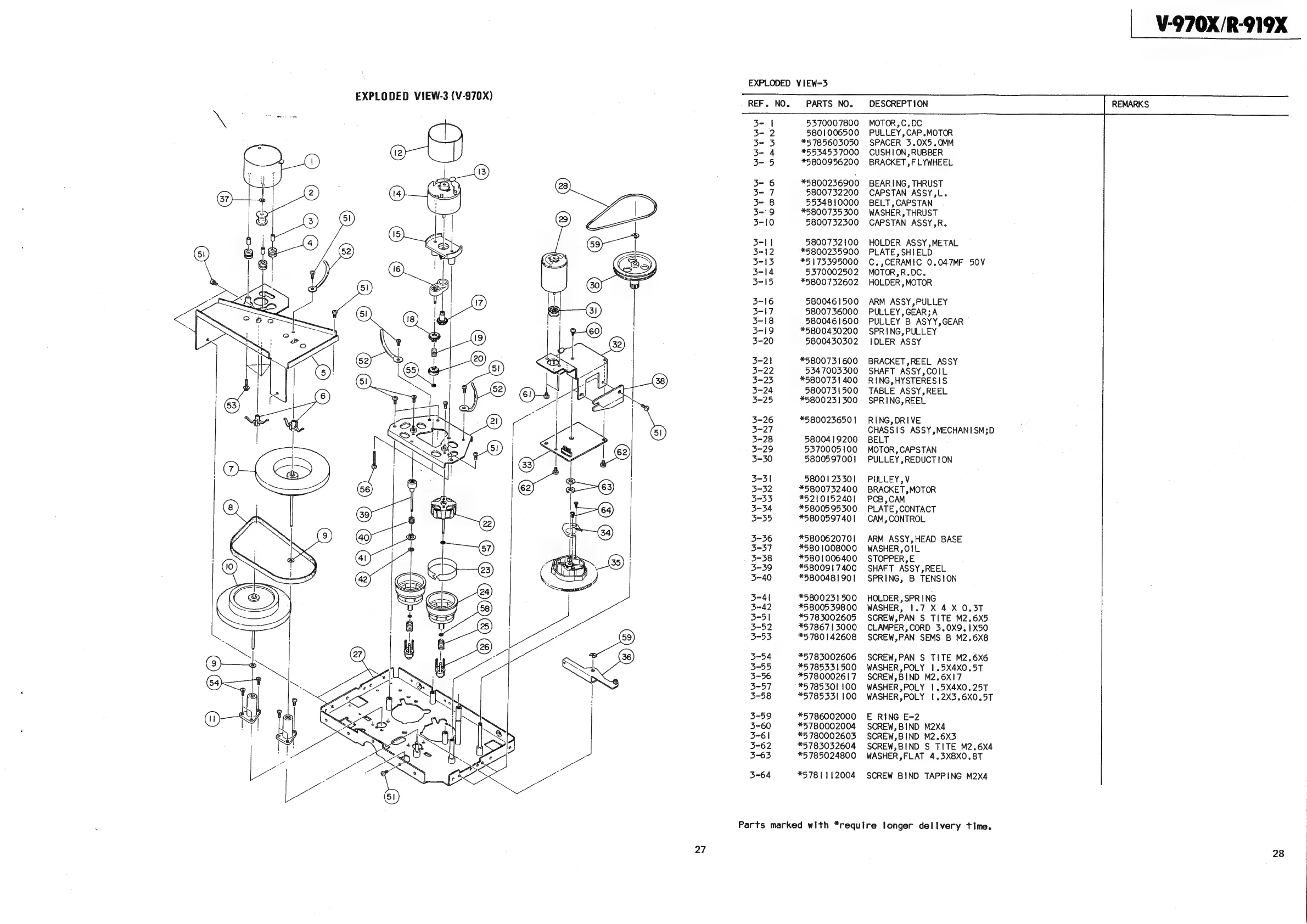

EXPLODED VIEW-3 (V-970X)
EXPLODED VIEW-3
| V-970X/R-919X
REF. NO. PARTS NO.
| 5370007800
3- 2 5801006500
3- 3 *5 785603050
3- 4 *5534537000
3- 5 *5800956200
3- 6 *5800236900
3- 7 5800732200
3- 8 5534810000
3-9 *5800735 300
3-10 5800732300
3-11 5800732100
3-12 *5800235900
3-13 *5 173395000
3-14 5370002502
3-15 *5800732602
3-16 5800461500
3-17 5800736000
3-18 5800461600
3-19 *5800430200
3-20 5800430302
3-21 *5800731 600
3-22 5347003300
3-23 *5800731 400
3-24 5800731500
3-25 *5800 231300
3-26 *580023650 |
3-28 58004 19200
3-29 5370005 100
3-30 5800597001
3-31 58001 23301
3-32 *5800732400
3-33 *5210152401
3-34 *58005 95300
3-35 *5800597401
3-36 *5800620701
3-37 *580 1008000
3-38 *5801006400
3-39 *580091 7400
3-40 *5800481901
3-4| *5800231500
3-42 *58005 39800
3-5| *5 783002605
3-52 *57867 | 3000
3-53 *5 780142608
3-54 *5783002606
3-55 *5 785331500
3-56 *5780002617
3-57 *5 785301 100
3-58 *5785331 100
3-59 *5 786002000
3-60 *5780002004
3-6 | *5 780002603
3-62 *5783032604
3-63 *5 785024800
3-64 *578 1112004
DESCREPT ION
MOTOR, C.DC
PULLEY, CAP .MOTOR
SPACER 3.0X5.OMM
CUSHION, RUBBER
BRACKET , FLYWHEEL
BEARING, THRUST
CAPSTAN ASSY,L.
BELT, CAPSTAN
WASHER , THRUST
CAPSTAN ASSY,R.
HOLDER ASSY,METAL
PLATE, SHIELD
C.,CERAMIC 0.047MF 50V
MOTOR,R.DC.
HOLDER , MOTOR
ARM ASSY,PULLEY
PULLEY ,GEAR;A
PULLEY B ASYY,GEAR
SPRING, PULLEY
IDLER ASSY
BRACKET,REEL ASSY
SHAFT ASSY,COIL
RING, HYSTERESIS
TABLE ASSY,REEL
SPRING, REEL
RING, DRIVE
CHASSIS ASSY,MECHANISM;D
BELT
MOTOR, CAPSTAN
PULLEY , REDUCT | ON
PULLEY,V
BRACKET , MOTOR
PCB,CAM
PLATE, CONTACT
CAM, CONTROL
ARM ASSY,HEAD BASE
WASHER, OIL
STOPPER, E
SHAFT ASSY,REEL
SPRING, B TENSION
HOLDER , SPR 1 NG
WASHER, 1.7 X 4 X 0.3T
SCREW,PAN S TITE M2.6X5
CLAMPER,CORD 3.0X9.1X50
SCREW,PAN SEMS B M2.6X8
SCREW,PAN S TITE M2.6X6
WASHER, POLY | .5X4X0.5T
SCREW,BIND M2.6XI7
WASHER, POLY 1.5X4X0.25T
WASHER, POLY | .2X3.6X0.5T
E RING E-2
SCREW, BIND M2X4
SCREW,BIND M2.6X3
SCREW,BIND S TITE M2.6X4
WASHER, FLAT 4.3X8X0.8T
SCREW BIND TAPPING M2X4
Parts marked with *require longer delivery time.
28
