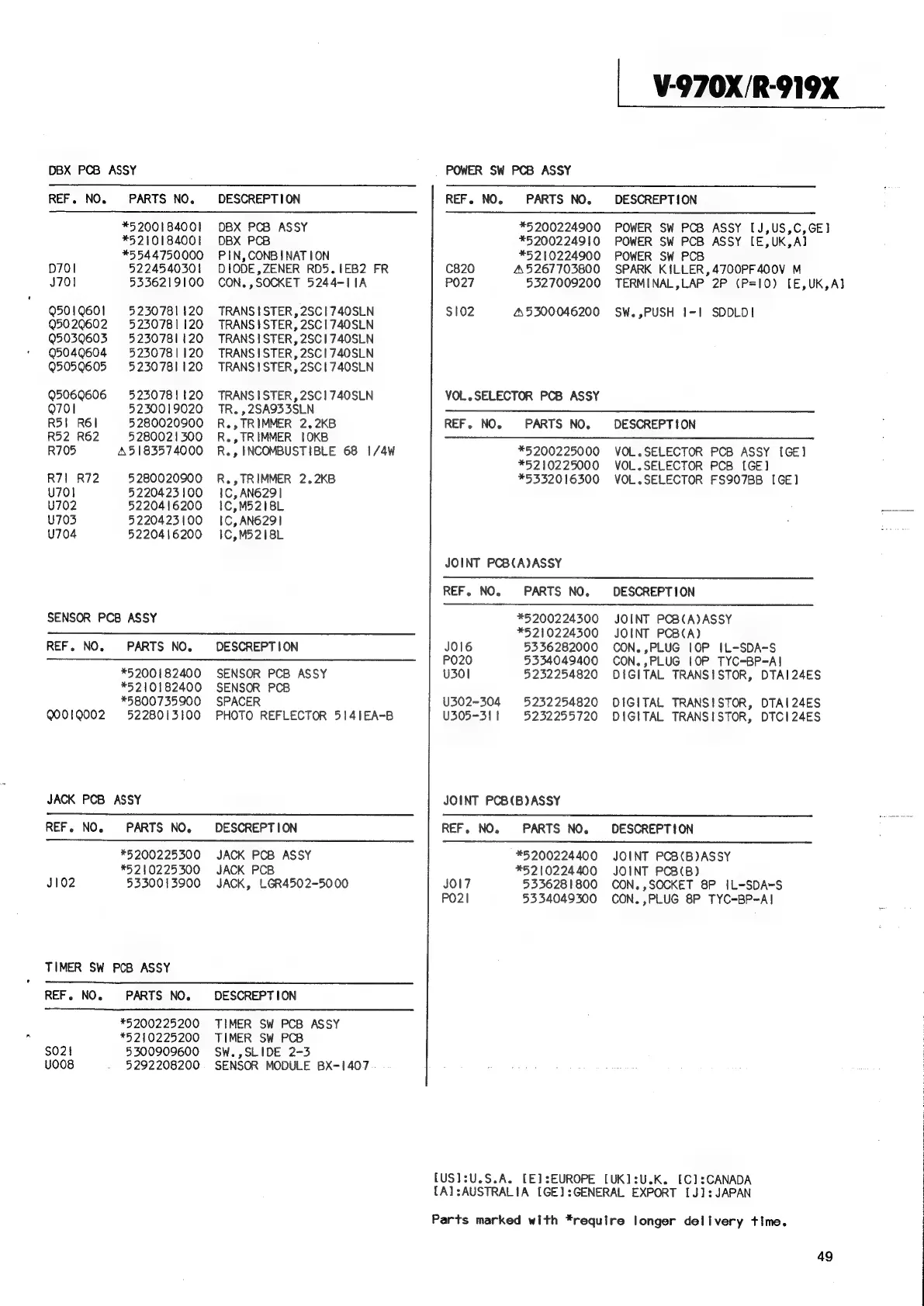

Teac V-970X - Individual PCB Component Lists; DBX PCB Component List; Power SW & Voltage Selector PCB Lists; Joint PCB A & B Component Lists

DBX PCB ASSY
REF. NO. PARTS NO. DESCREPTION
*5200184001 DBX PCB ASSY
*5210184001 DBX PCB
*5544750000 PIN,CONBINAT ION
D701 522454030! DIODE,ZENER RDS.1EB2 FR
J701 5336219100 CON.,SOCKET 5244-I1A
Q501Q601 5230781120 TRANSISTER,2SCI740SLN
Q502Q602 5230781120 TRANSISTER, 2SCI740SLN
Q503Q603 5230781120 TRANSISTER, 2SCI740SLN
Q504Q604 5230781120 TRANSISTER,2SCI740SLN
Q505Q605 5230781120 TRANSISTER,2SCI740SLN
Q506Q606 5230781120 TRANSISTER,2SCI740SLN
Q701 5230019020 TR.,2SA933SLN
R51 R61 5280020900 R.,TRIMMER 2.2KB
R52 R62 5280021300 R.,TRIMMER 10KB
R705 A5183574000 R., INCOMBUSTIBLE 68 1/4W
R71 R72 5280020900 R.,TRIMMER 2.2KB
U701 5220423100 1C,AN6291
U702 5220416200 !C,M5218L
U703 5220423100 1C,AN6291
U704 5220416200 1C,M5218L
SENSOR PCB ASSY
REF. NO. PARTS NO. DESCREPTION
*5200182400 SENSOR PCB ASSY
*5210182400 SENSOR PCB
*5800735900 SPACER
QO001Q002 5228013100 PHOTO REFLECTOR 5141EA-B
JACK PCB ASSY
REF. NO. PARTS NO. DESCREPTION
*5200225300 JACK PCB ASSY
¥5210225300 JACK PCB
J102 5330013900 JACK, LGR4502-5000
TIMER SW PCB ASSY
REF. NO. PARTS NO. DESCREPTION
*5200225200 TIMER SW PCB ASSY
*5210225200 TIMER SW PCB
S02! 5300909600 SW.,SLIDE 2-3
Uo008 5292208200 SENSOR MODULE BX-1407
POWER SW PCB ASSY
V-970X/R-919X
REF. NO. PARTS NO. DESCREPTION
*5200224900 POWER SW PCB ASSY [J,US,C,GE]
*5200224910 POWER SW PCB ASSY [E,UK,A]
*5210224900 POWER SW PCB
C820 45267703800 SPARK KILLER,4700PF400V M
PO027 5327009200 TERMINAL,LAP 2P (P=10) [E,UK,A]
$102 45300046200 SW.,PUSH I-I SDDLD!
VOL.SELECTOR PCB ASSY
REF. NO. PARTS NO.
*5 200225000
*5210225000
*5332016300
JOINT PCBCA)ASSY
DESCREPTION
VOL.SELECTOR PCB ASSY [GE]
VOL.SELECTOR PCB [GE]
VOL.SELECTOR FS907BB IGE]
REF. NO. PARTS NO. DESCREPTION
*5200224300 JOINT PCB(A)ASSY
*5210224300 JOINT PCB(A)
JO16 5336282000 CON.,PLUG IOP IL-SDA~S
P020 5334049400 CON.,PLUG IOP TYC-BP-A!
U301 5232254820 DIGITAL TRANSISTOR, DTAI24ES
U302-304 5232254820 DIGITAL TRANSISTOR, DTAI24ES
U305-311 5232255720 DIGITAL TRANSISTOR, DTCI24ES
JOINT PCB(B)ASSY
REF. NO. PARTS NO. DESCREPTION
*5 200224400 JOINT PCB(B)ASSY
*5210224400 JOINT PCB(B)
JO17 5336281800 CON.,SOCKET 8P IL-SDA~S
PO2I 5334049300 CON.,PLUG 8P TYC-BP~A]
{US1:U.S.A. [E]:EUROPE [UK]:U.K. [C]:CANADA
TA]:AUSTRALIA [GE]:GENERAL EXPORT [J]: JAPAN
Parts marked with *require longer delivery time.
