Teagle Tomahawk 404M User Manual

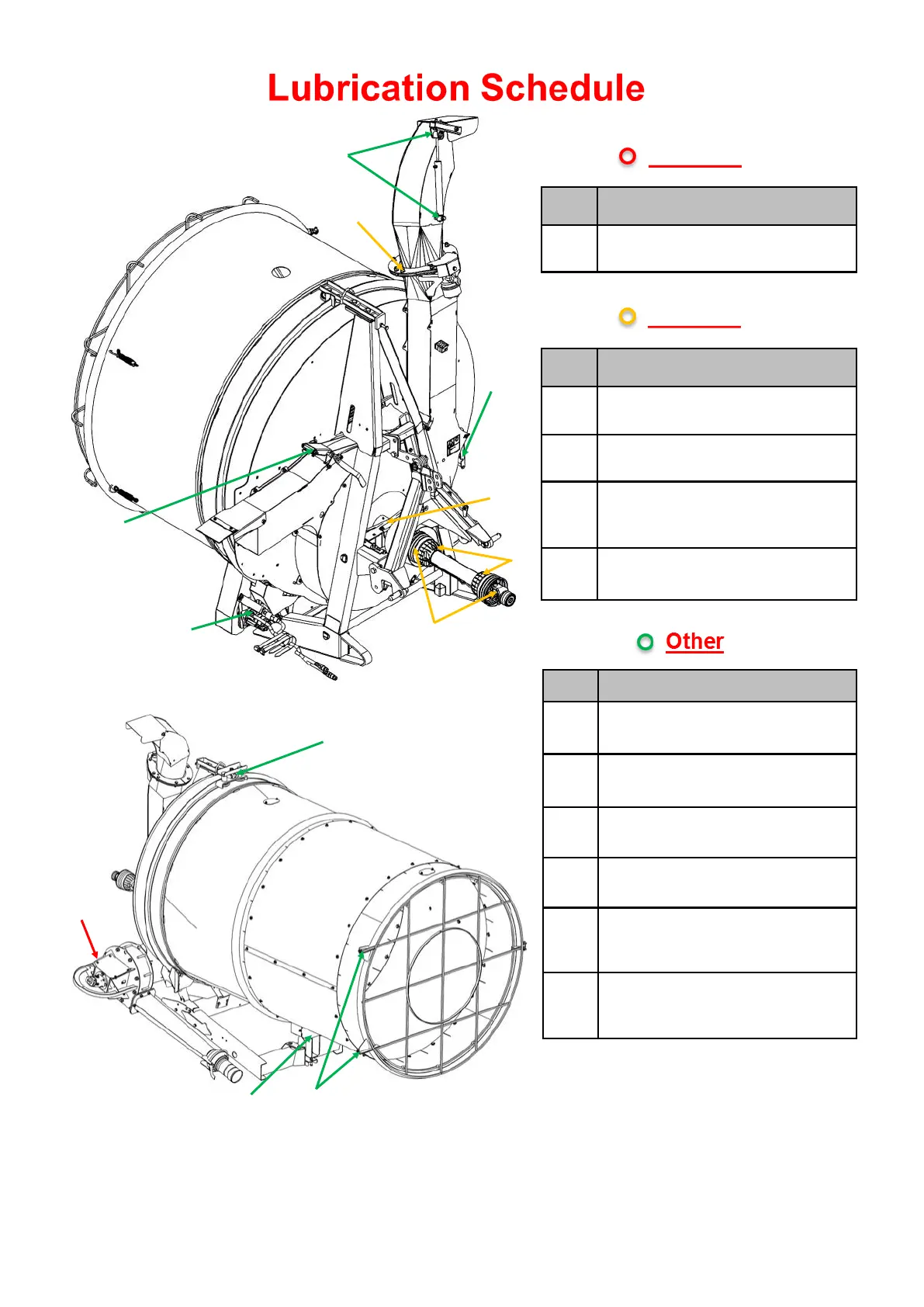

Ref. Description
2 Swivel mechanism (if fitted)
Four greasing points
3 Rotor shaft bearing housing
Single greasing point
4 PTO - Cross journals & sliding
members
Three greasing points
5 PTO Guard sliding rings
Two greasing points
Ref. Description
6 Twin roller mount pivot
Single greasing point - Monthly
7 Drum guard hinge
Lubricate - Monthly
8 Belt tensioner pivot
Single greasing point - Monthly
9 Flap operating linkage
Lubricate - Monthly
10 Hydraulic cylinder pivots on
hydraulic deflectors (if fitted)
Two greasing points - Monthly
11 Extended drum support roller
pivot (if fitted)
Single greasing point - Monthly
For more detailed information see maintenance section
10
9
4
2
3
6
1
5
7
9
50 Hours
Note: Use good quality semi-solid grease for all procedures detailed above
20 Hours
Ref. Description
1 Booster fan bearings (if fitted)
Single greasing point
8
11
