Ref. Description Part No. Qty. Associated Components Part No. Qty.
Kit Complete SC4685 1
(Comprising Items 1 - 9 & 13 - 22)
Hinged Feed Slide Kit SC4688 1
(Comprising Items 10 - 12)
1 End Deflector SC4044 1 Setscrew M12 x 35 FAS2679P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
2 Top Link SC4047 2 Bolt M12 x 50 FAS9682P 2
Bolt M12 x 55 FAS9683P 2
Plain Washer M12 FAS2345P 4
Locknut M12 FAS2334 4
3 Mid Deflector SC4043 1
4 Lower Link LH SC4046 1 Bolt M12 x 50 FAS9682P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
5 Lower Link RH SC4045 1 Bolt M12 x 50 FAS9682P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
6 Lower Deflector SC4042 1 Setscrew M12 x 35 FAS2679P 2
Bolt M12 x 45 FAS9681P 2
Plain Washer M12 FAS2345P 4
Locknut M12 FAS2334 4
18

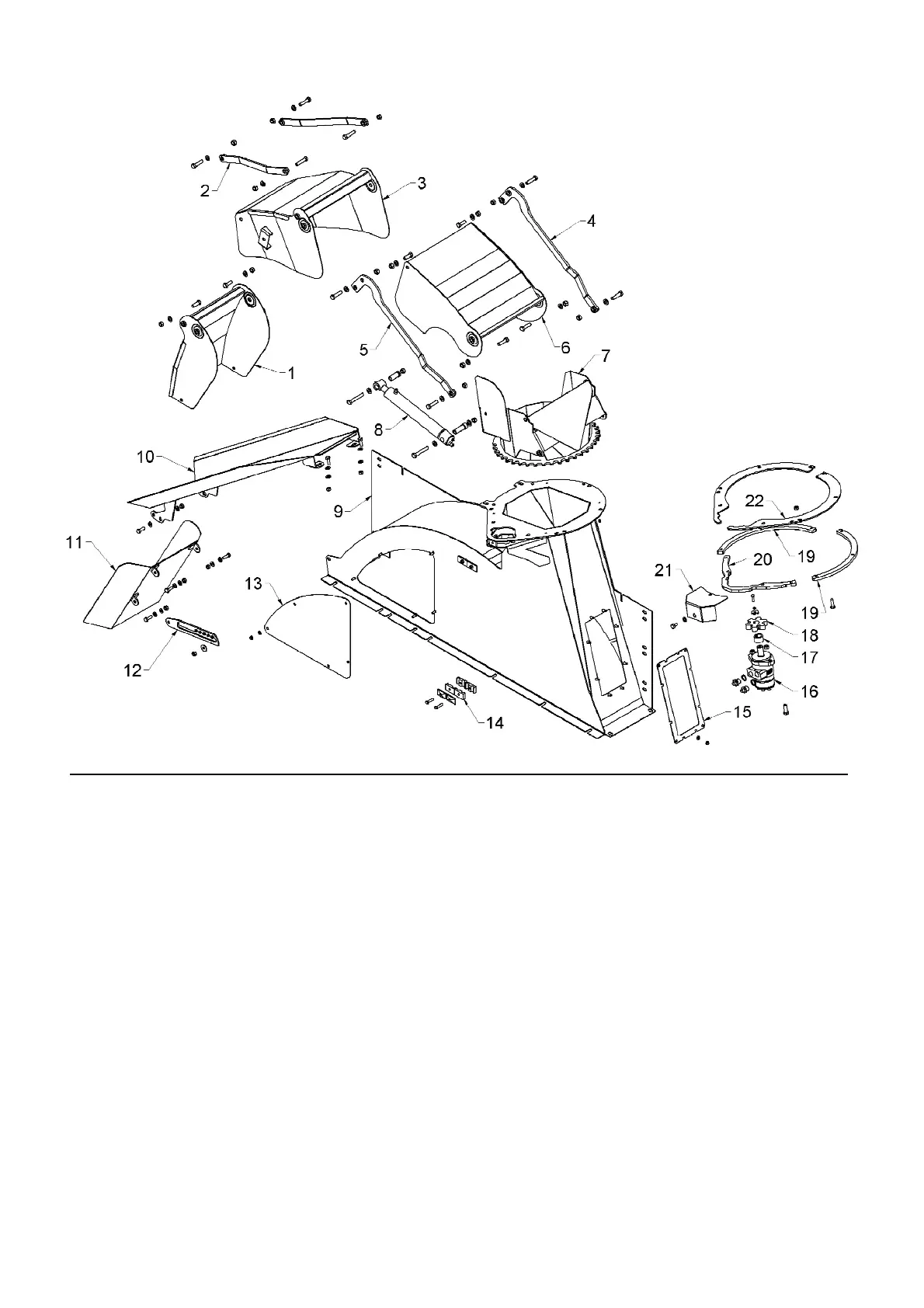

SLOPING FLANGE GIRAFFE CHUTE & HOUSING
