Teagle Tomahawk 8500 - Page 24

Ref. Description Part No. Qty. Associated Components Part No. Qty.
Right Hand Chute Kit SC4648 1
(Comprising All Items)
1 Deflector Strip SC3179 1 Cup Square Bolt M8 x 20 FAS9241P 3
Plain Washer M8 FAS2343P 3
Locknut M8 FAS2332 3
2 Deflector SC3102 1 Bolt M12 x 55 FAS9683P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
3 Connecting Link - Top SC3627 1 Bolt M12 x 50 FAS9682P 1
Bolt M12 x 45 FAS9681P 1
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
4 Upper Chute SC3993 1 Bolt M12 x 55 FAS9683P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
5 Outlet Chute - Lower SC3620 1 Bolt M12 x 50 FAS9682P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
6 Housing Top - Right Hand Chute SC4649 1 Setscrew M12 x 30 FAS2678P 8
Plain Washer M12 FAS2345P 16
Locknut M12 FAS2334 8
7 Chute Ram CYL1084 1 Pin - Housing SC1379 1
Pin - Chute TRM0738 1
Spring Tension Pin 8 x 40mm FAS4131S 4
8 Upper Inspection Panel SC3909 1 Plain Washer M8 FAS2343P 5
Locknut M8 FAS2332 5
9 Chute Connecting Link SC3618 2 Setscrew M12 x 40 FAS2680P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2

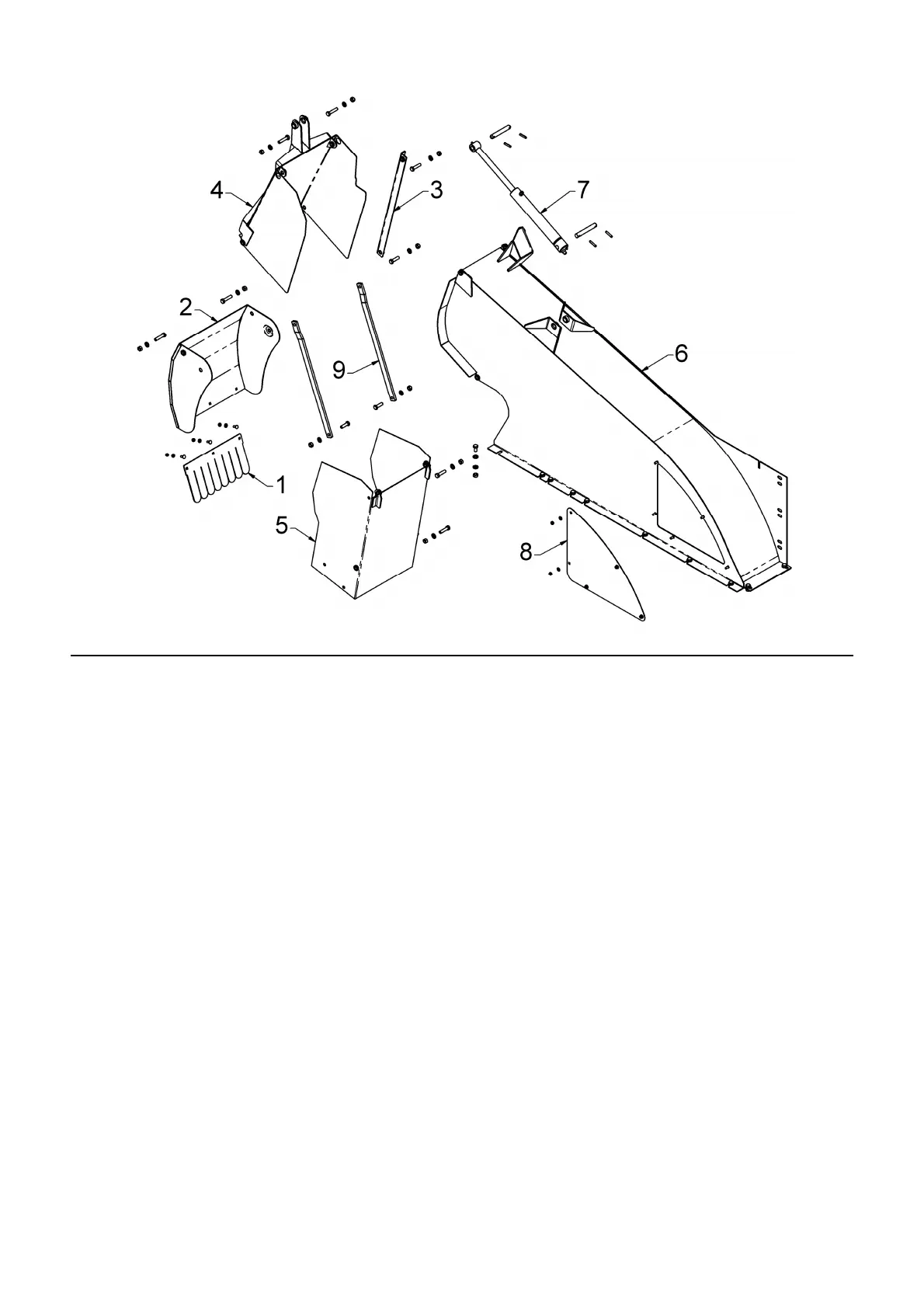

RIGHT HAND CHUTE & HOUSING
20
