Ref. Description Part No. Qty. Associated Components Part No. Qty.
1 Bed Chain Drive Guard SC3987 1 Setscrew M8 x 25 FAS2629P 1
Setscrew M8 x 20 FAS2627P 1
Plain Washer M8 FAS2343P 4
Locknut M8 FAS2332 2
2 Threaded Bar SC3196 1
3 Retaining Disc SC3226 1 Plain Washer M8 FAS2343P 1
Disc Spring SPR7012 1
Locknut M8 FAS2332 1
4 Bed Speed Indicator SC3227 1
5 Bed Drive Chain SC3158 1 Joining Link ROP2123 1
6 Floor Motor Sprocket 25mm SC4193 1 Washer 30 x 9 x 5 FAS2408P 1
Plain Nut M8 FAS2302P 1
7 25mm Motor Spacer SC4199 1
8 Motor Mounting Plate SC3184 1
9 Motor Mounting Bolts SC3291 1 Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
10 Hydraulic Motor 400cc 25mm HYD5234 1 Setscrew M12 x 80 FAS2688P 1
Plain Nut M12 FAS2304P 1
Bonded Seal 1/2” BSP HYD4204 2
1/2” x 1/2” M/M Union HYD1013 2
Key 8 x 7 x 30mm Round Ends FAS8134 1
Seal Kit - SAM Hydrauliks HYD4891 1
11 Retained Motor Bolt SC3267 2 Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2

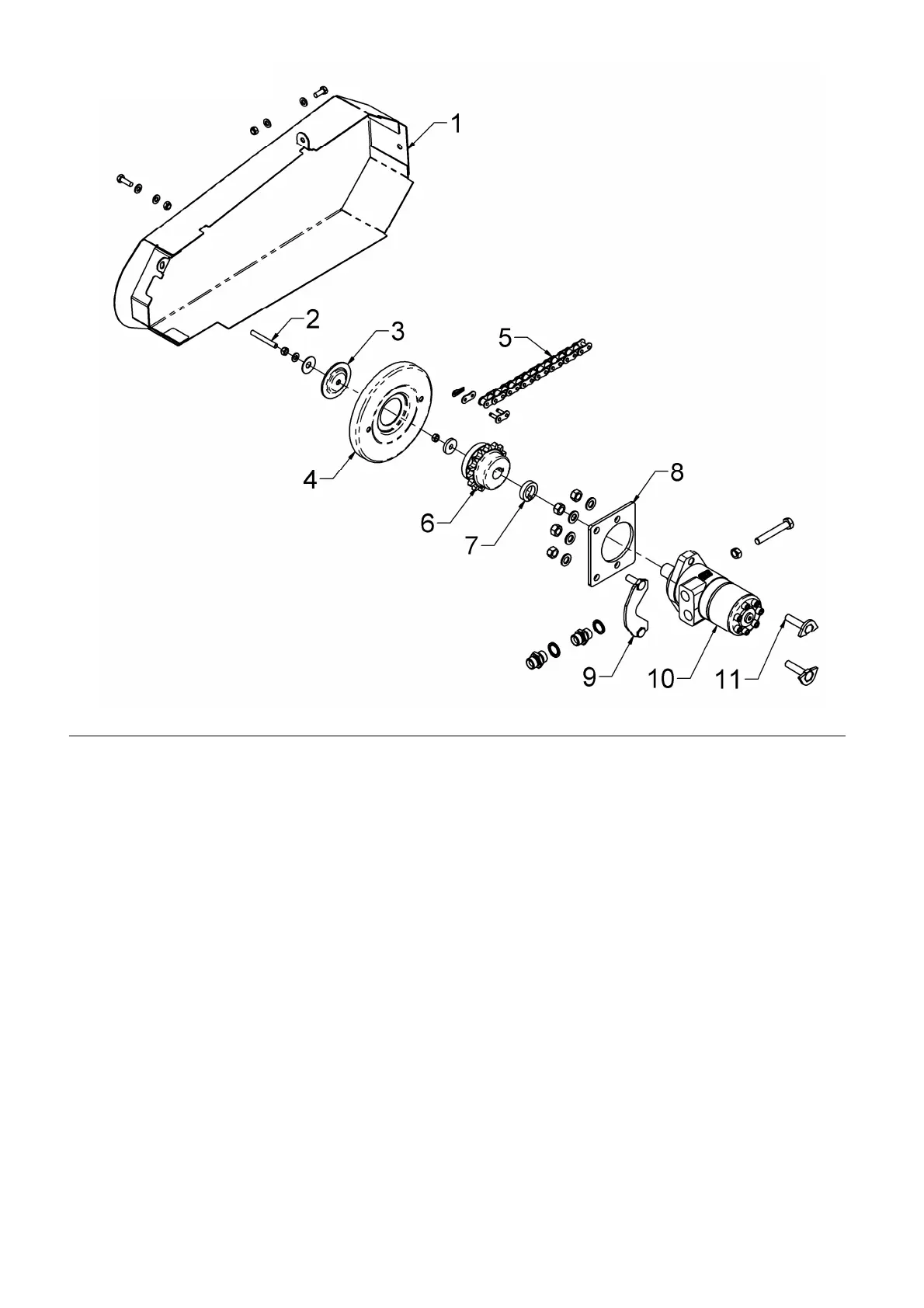

BED CHAIN DRIVE
21
