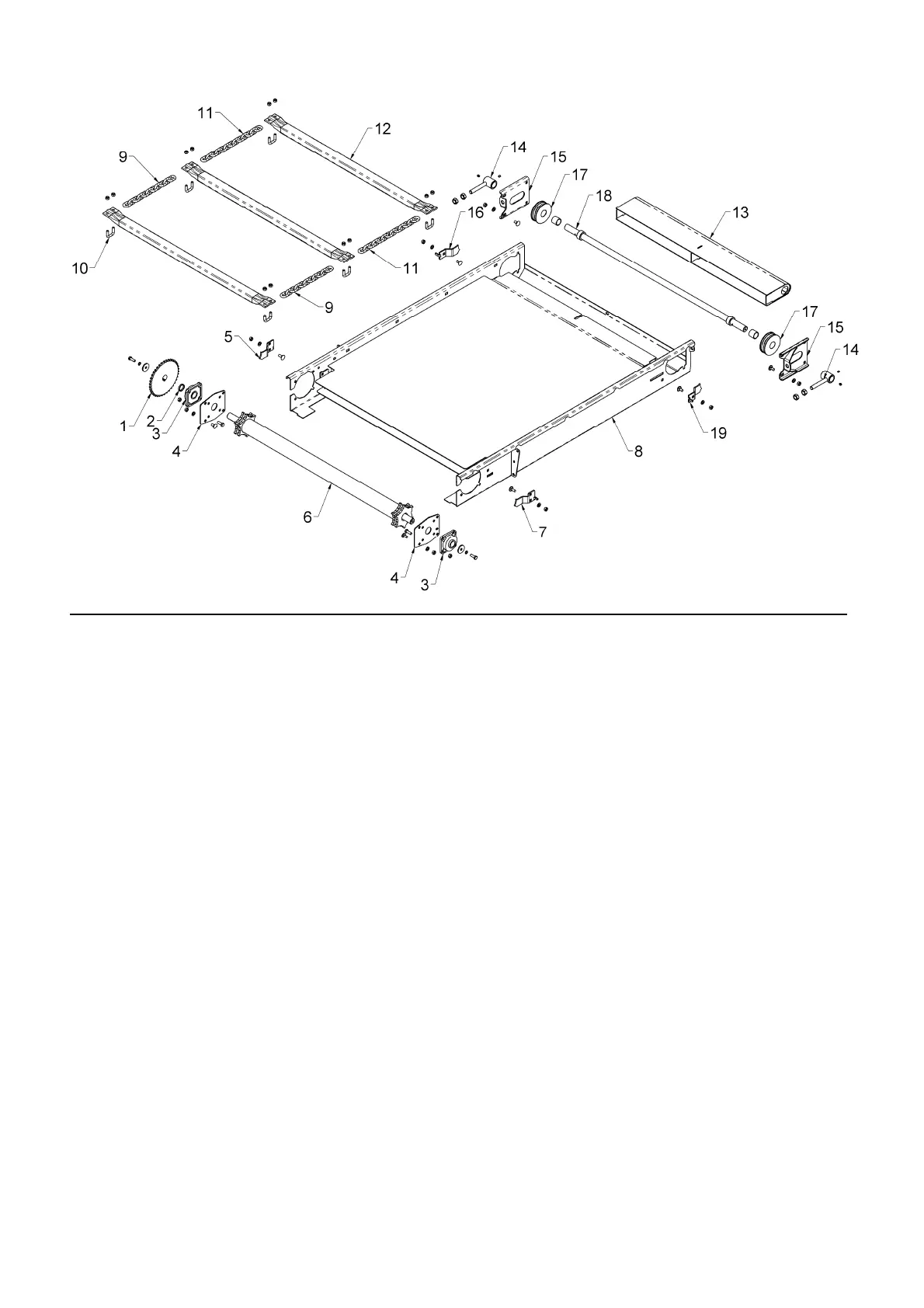

FLOOR ASSEMBLY
Ref. Description Part No. Qty Associated Components Part No. Qty.
1 Sprocket - 38 Tooth SC3156 1 Key 10 x 8 x 40 FAS8120 1
2 Sprocket Spacer SC3191 1
3 Bearing BRG1305 2 Setscrew M12 x 35 FAS2679P 8
Locknut M12 FAS2334 8
Grease Nipple 1/4” BSF BRG5004 2
4 Bearing Mounting Plate SC3022 2 Cup Square Bolt M12 x 25 FAS9282P 8
Locknut M12 FAS2334 8
5 Sprocket Scraper Front RH SC3388 1 Cup Square Bolt M12 x 30 FAS9283P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
6 Front Sprocket SC4604 1 Setscrew M12 x 35 FAS2679P 2
Washer 50 x 13 x 5mm FAS2383P 2
Spring Washer M12 FAS2374P 2
7 Sprocket Scraper Front LH SC3387 1 Cup Square Bolt M12 x 30 FAS9283P 2
Plain Washer M12 FAS2345P 2
Locknut M12 FAS2334 2
8 Floor Section SC4601 1 Setscrew M12 x 25 FAS2677P 2
Setscrew M12 x 30 FAS2678P 2
Locknut M12 FAS2334 4
Setscrew M10 x 70 FAS2663P 1
Locknut M10 FAS2333 1
9 Chain Section – 13 links SC3367 8
10 Joiner SC3351 16 Locknut M12 FAS2334 32
11 Chain Section – 11 links SC3368 8
12 Slat – Crushed Ends SC4666 8
13 Rear Floor Section SC4606 1
14 Bed Chain Tensioner SC3384 2 Plain Nut M20 FAS2306P 4
M10 x 10 Grub Screw FAS8446 2
22
