15 Tensioner Mounting Plate SC4131 2 Cup Square Bolt M12 x 25 FAS9282P 6
Cup Square Bolt M12 x 30 FAS9283P 2
Plain Washer M12 FAS2345P 8
Locknut M12 FAS2334 8
16 Sprocket Scraper Rear RH SC3390 1 Cup Square Bolt M12 x 35 FAS9284P 1
Plain Washer M12 FAS2345P 1
Locknut M12 FAS2334 1
17 Chain Wheel SC3382 2 Bush BRG2401 2
18 Rear Shaft SC4605 1 Grease Nipple 1/8” BSP BRG5001 2
19 Sprocket Scraper Rear LH SC3389 1 Cup Square Bolt M12 x 35 FAS9284P 1
Plain Washer M12 FAS2345P 1
Locknut M12 FAS2334 1
Ref. Description Part No. Qty. Associated Components Part No. Qty.
23

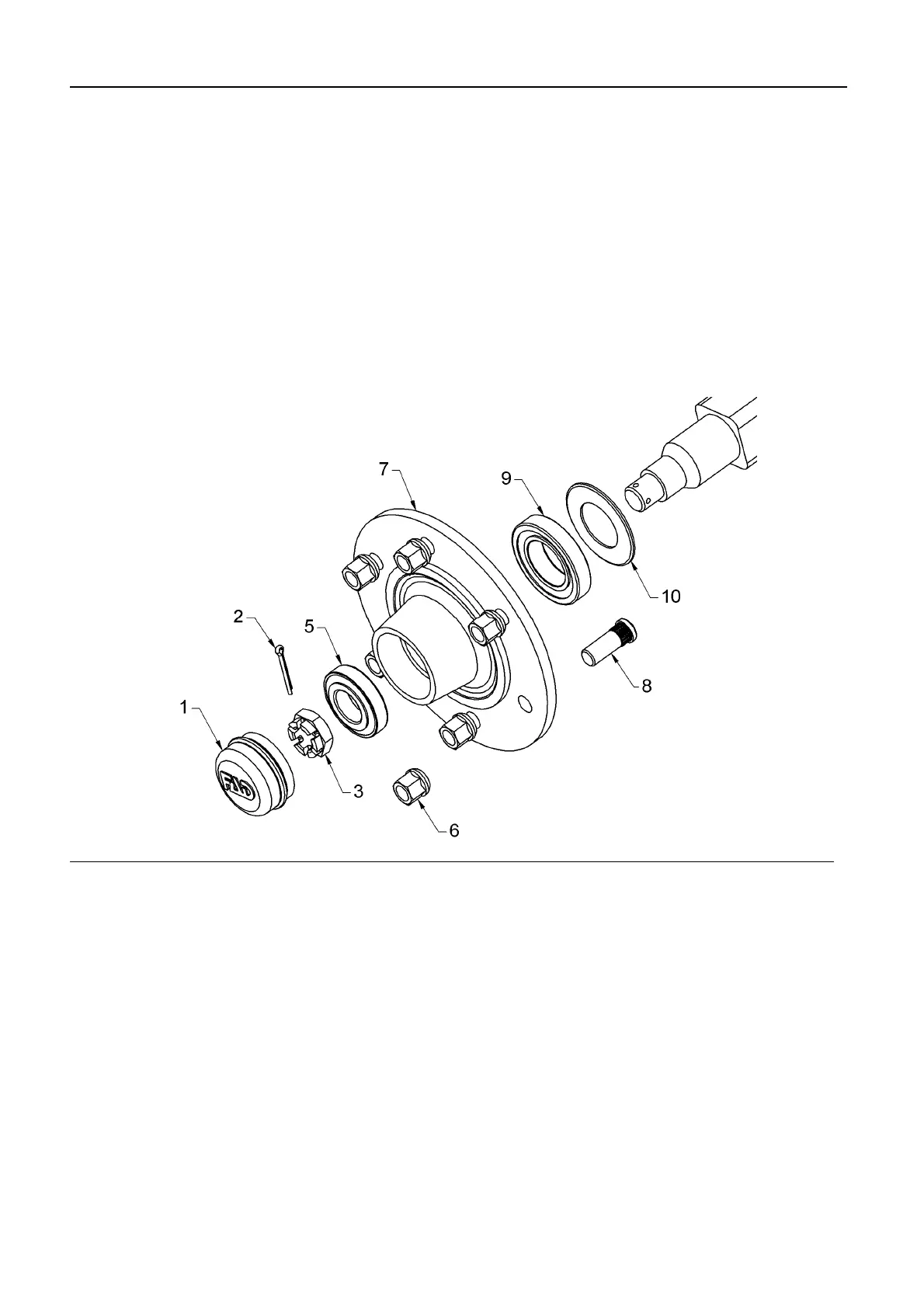

WHEEL EQUIPMENT
Ref. Description Part No. Qty.
Axle Assembly Complete SC4618 1
1 Hub Cap WE1501 1
2 Split Pin FAS5107 1
3 Slotted Nut WE1505 1
4 60 x 30 x 4 Plain Washer FAS4816 1
5 Outer Bearing BRG1222 1
6 Wheel Nut – M18 (Fine) WE0909 6
7 RIMA Hub Complete With Studs WE1500 1
8 Wheel Stud – M18 x 55 (Pitch – 1.5mm) WE1502 6
9 Inner Bearing BRG1208 1
10 Oil Seal BRG3063 1
To Next Page
