Team C Hyde - Page 7

L
R
21
<Right>
22
<Left>
13
L
R
T02060 Ball stud - short
…………………2
T02115 2x9.8 Shaft
……………4
T02057 3x30.5 Hinge pin Rear outer
…………………………4
…………2
T02057 2.3 E-ring
T02124 3.1x6x1 Plastic Washer
………………………2

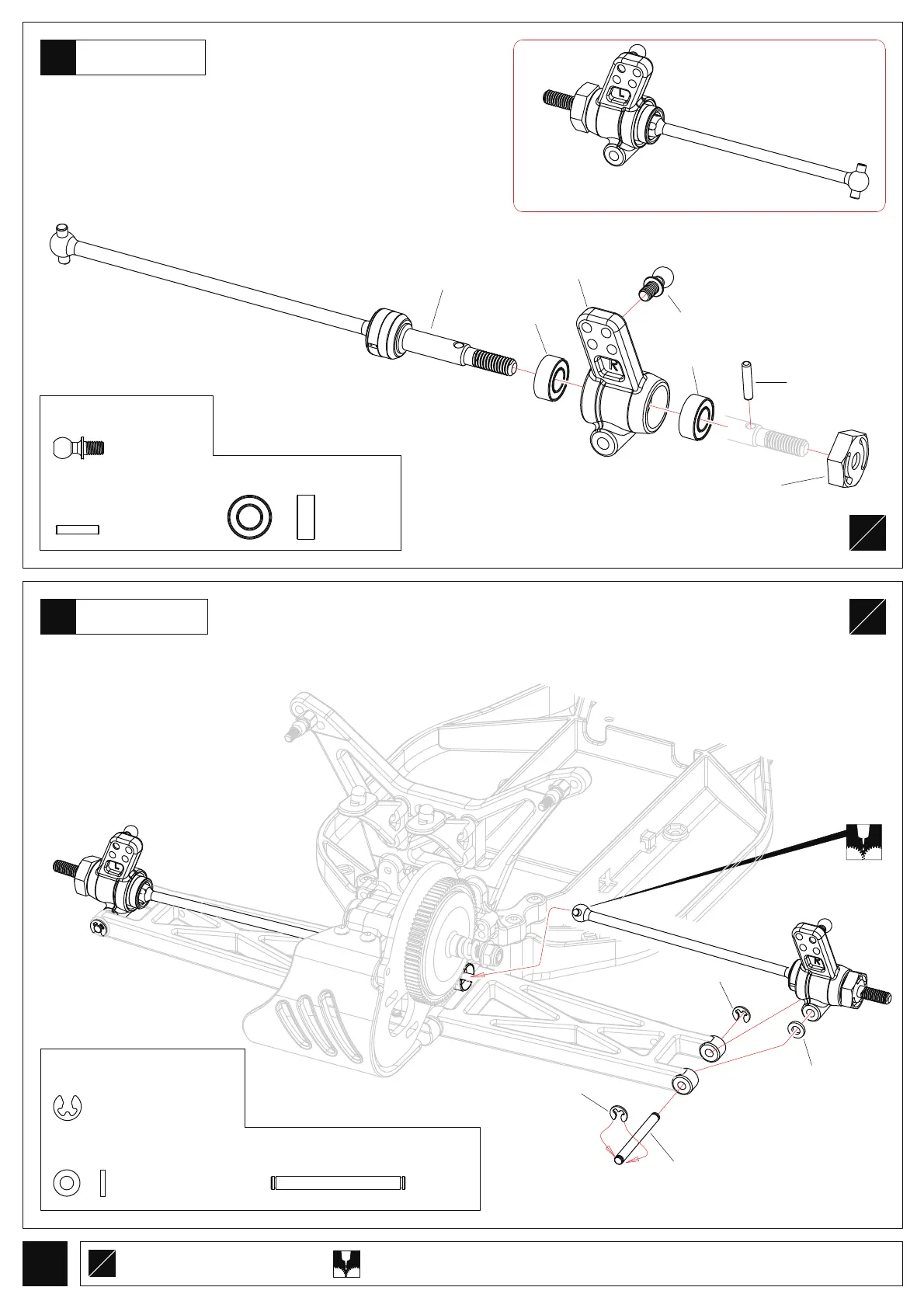

Rear Suspension
L
R
Assemble left and right sides the same way
Apply grease
Rear Suspension
T02124
TG2039
T02079
T02079
T02115
T02115
…………………2
T02060
T02124
T02057
T02057
T02057
T02079 5x10x4 Contain oil ball
bearing
