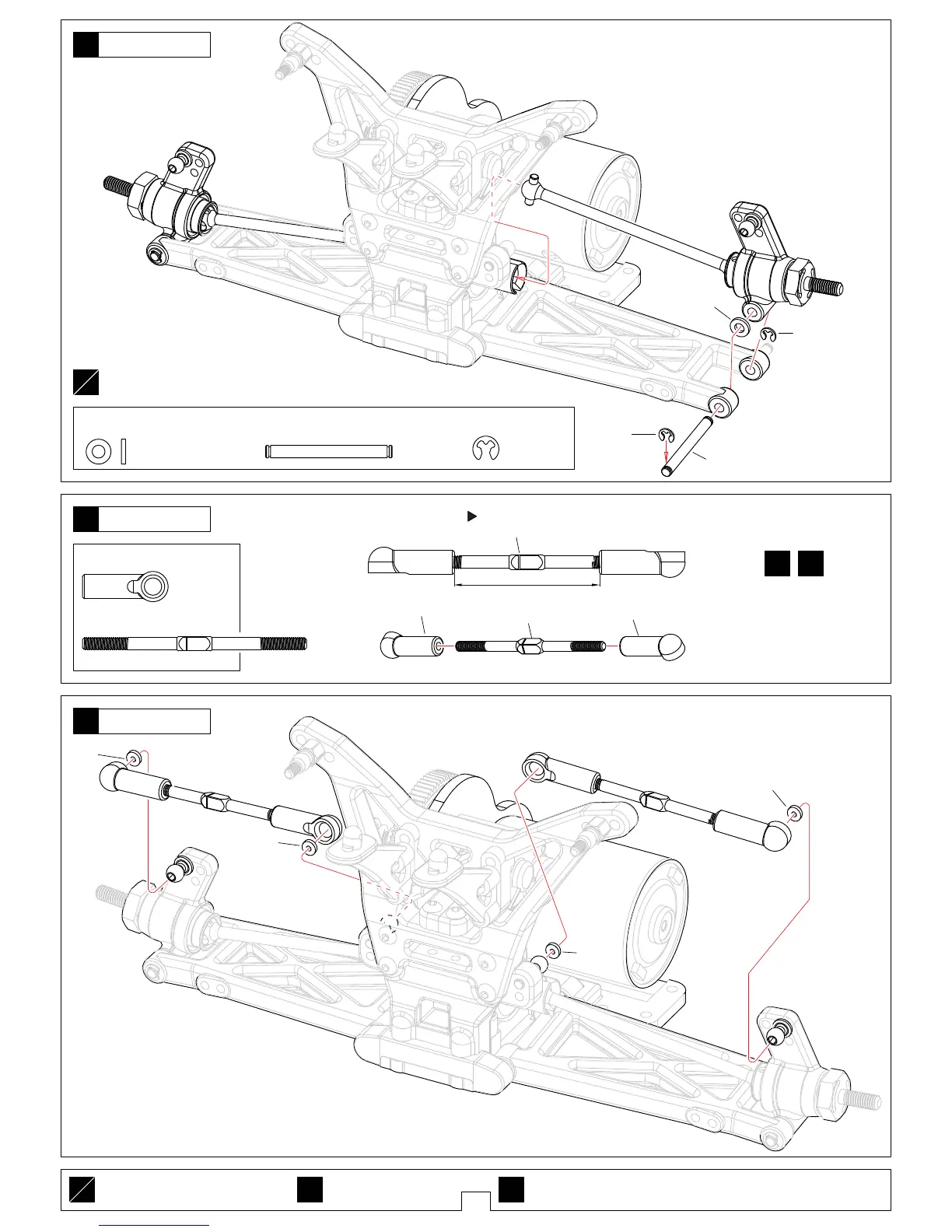

Team C TC02C - Rear Suspension Assembly - Part 2; Rear Suspension Assembly - Steps 20, 21 & 22

approx.35mm
Right Upper
T02091
T02029
T02029
T02029 4.8mm Ball End(Long)
T02091 3x54 Turnbuckle
…………4
…………2
9
T02057 3x30.5 Hinge pin Rear outer
…………4
…………2
T02057 2.3 E-ring
T02013 3.1x6x1 Plastic Washer
………………………2
T02013
T02057
T02057
T02057
True-to -scale diagram Assemble as many times as specifiedAssemble both Left and RightAssemble both Left and Right
Rear Suspension
Rear Suspension
Rear Suspension
Projection.Note direction
T02092
T02092
T02093
T02093
1:1 x2
L
R
L
R
1:1 x2
L
R
L
R
20
21
22
