Team C TC02T Pro - Page 17

29
16
3
2
1
1
2
3
L
R
T02084 M3 Nylon Nut
尼龍螺母
…………2
……2
T02082 M3x15 Screw
螺絲
3
1
2
按順序組裝
Assemble in the specified order
x2
需組裝次數
Assemble as many times as specified
L
R
左右裝法相同
Assemble left and rear sides the same way

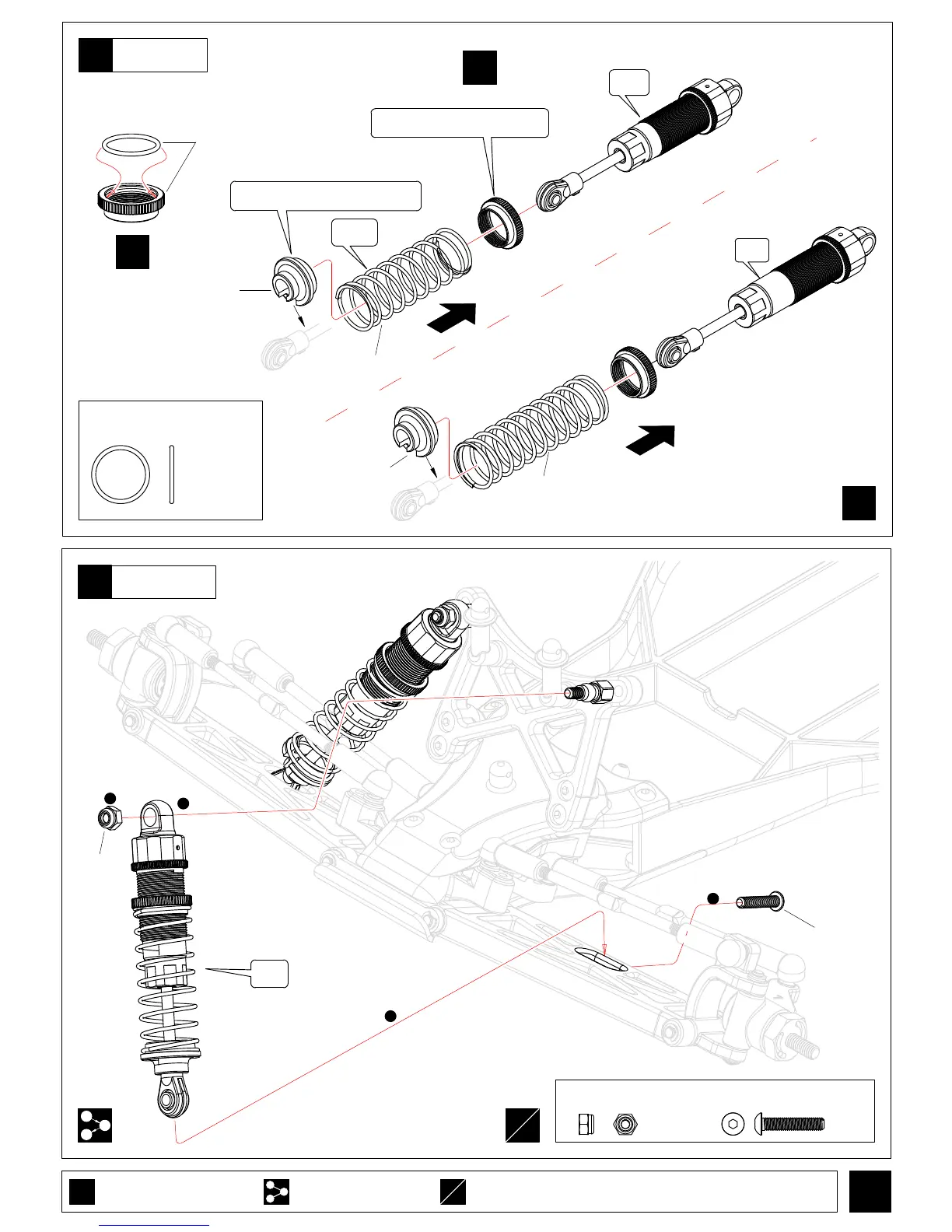

Front Suspension
前橋
Short
短
T02084
T02082
1
28
x2
x2
x4
TG2025&TG2026 12x1 O - ring
O環
…………4
避震器
Shock Absorber
調整彈簧松緊
for adjusting the spring tension
壓縮彈簧後安裝
Compress the spring and install
Front
前
Rear
後
Short
短
Long
長
Short
短
TG2025 & TG2026
TG2018(Long)
長
TG2017(Short)
短
T02031
T02031
