Team C TC02T Pro - Page 6

5
5
6
L
R
3
1
2
3
1
2
4
5
3
1
2
T02082 M3x8 Screw
………………2
T02082 M3x10 Screw
………………6
……………8
T02054 2.3 E-ring
T02093 Ball stud - short
………………………4
…………2
T02100 5x10x4 Ball Bearing
…………………4
T02054 3x27.5 Hinge pin front outer
…………4
T02042 2x9.8 Shaft
…………2
3
1
2
按順序組裝
Assemble in the specified order

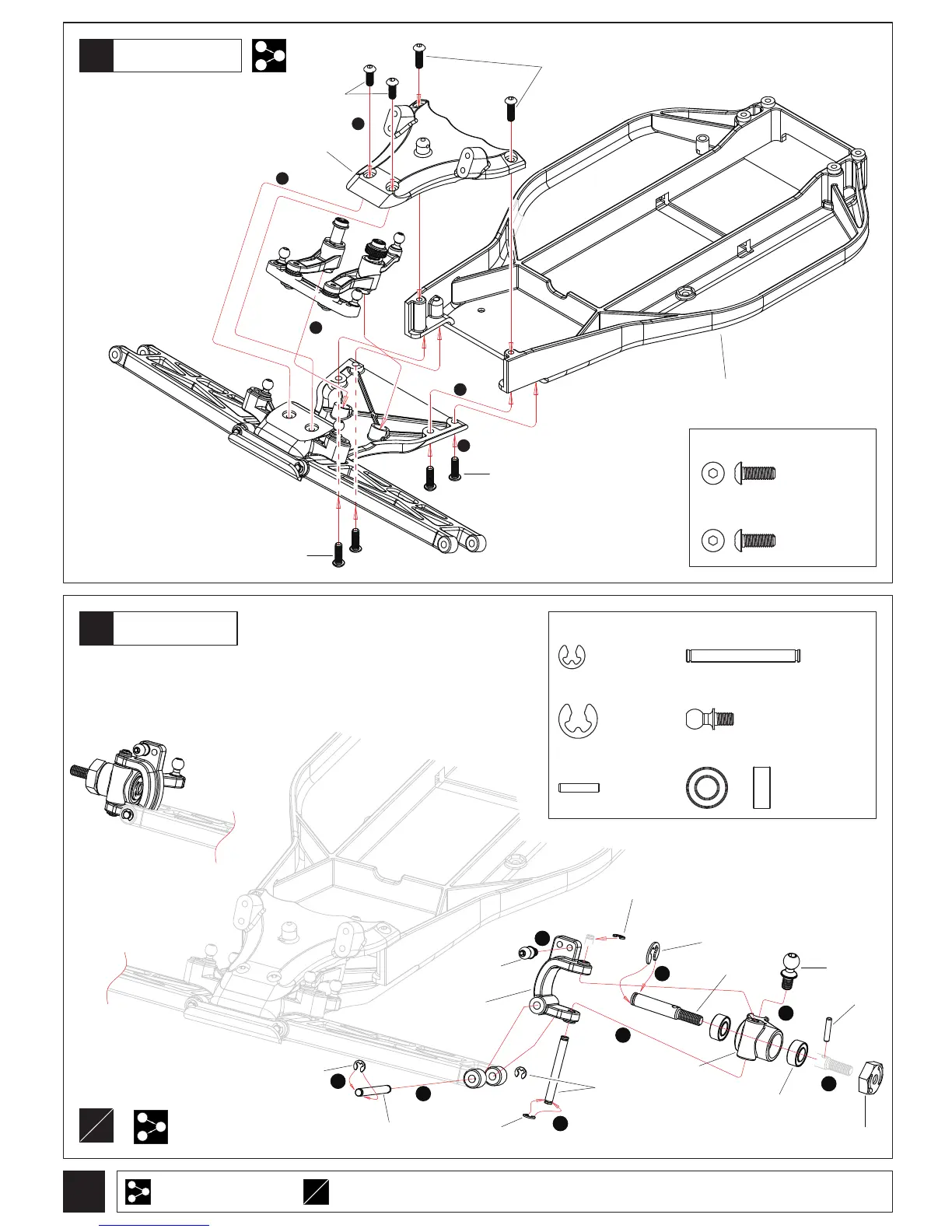

Front Suspension
前橋
Front Suspension
前橋
L
R
左右裝法相同
Assemble left and right sides the same way
螺絲
球頭-短
軸承
軸
前擺臂軸
E 扣
螺絲
T02042 4.0 E-ring
E 扣
1
2
4
3
5
6
7
8
T02054
T02054
T02042
T02100
T02034
T02093
T02093
T02011
T02012
T02042
T02042
T02054
T02054
T02054
<Right>
<右>
<Left>
<左>
T02082(3x8)
T02082(3x10)
T02082(3x10)
T02082(3x10)
T02019
TG2002
