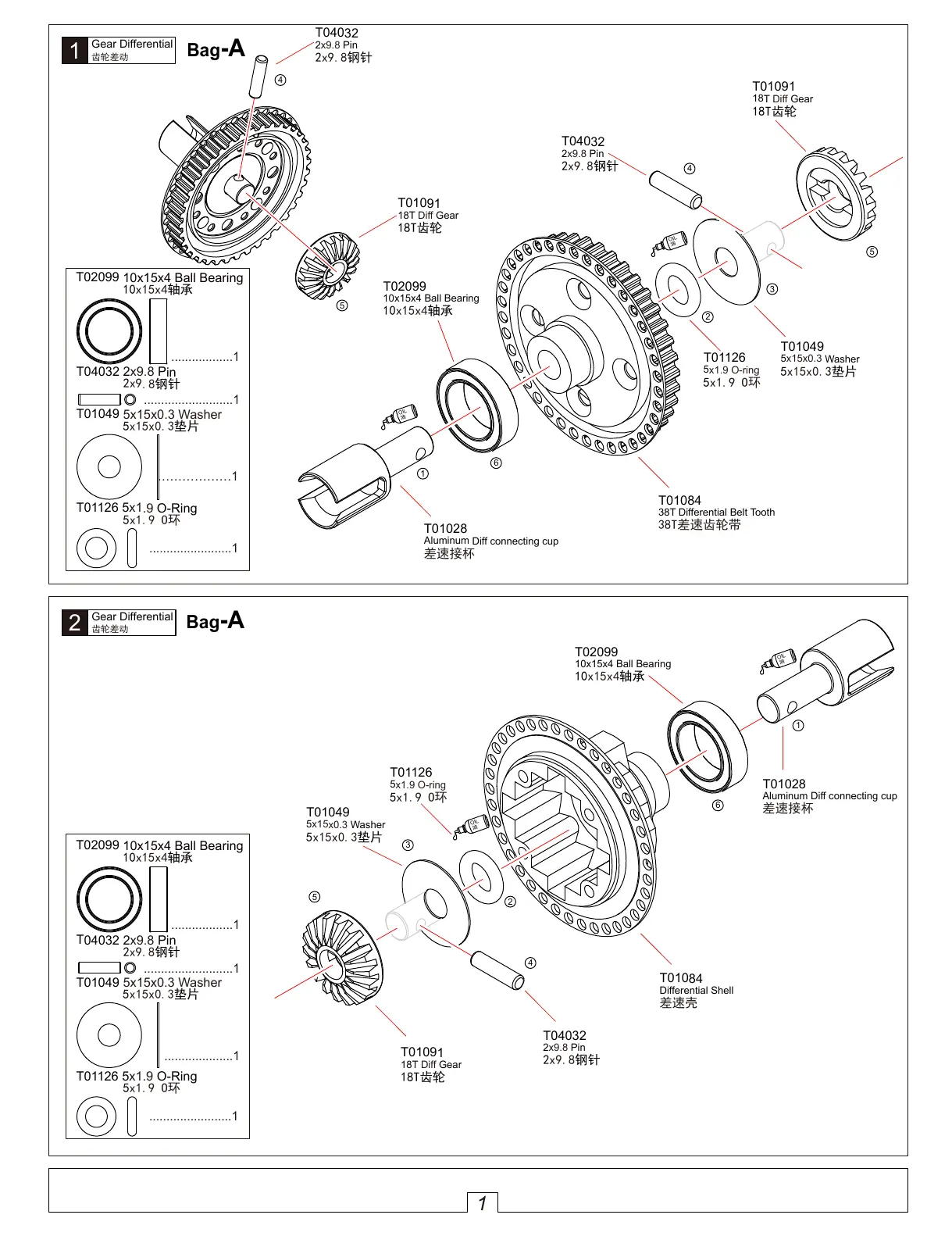

Team C TC10 - Gear Differential Assembly; Gear Differential - Steps 1 & 2

1
2
Gear Differential
齿轮差动
1
Bag-A
Bag-A
4
1
4
2
3
5
5
5
1
2
3
4
........................1
………………1
..........................1
5x15x0.3垫片
5x15x0.3 Washer
T01049
2x9.8钢针
2x9.8 Pin
T04032
18T齿轮
18T Diff Gear
T01091
差速接杯
Aluminum Diff connecting cup
T01028
5x1.9 O环
5x1.9 O-ring
T01126
18T齿轮
18T Diff Gear
T01091
18T齿轮
18T Diff Gear
T01091
差速接杯
Aluminum Diff connecting cup
T01028
2x9.8钢针
2x9.8 Pin
T04032
38T差速齿轮带
38T Differential Belt Tooth
T01084
差速壳
Differential Shell
T01084
2x9.8钢针
T04032 2x9.8 Pin
5x1.9 O环
T01126 5x1.9 O-Ring
5x15x0.3垫片
T01049
5x15x0.3 Washer
........................1
....................1
..........................1
2x9.8钢针
T04032 2x9.8 Pin
5x1.9 O环
T01126 5x1.9 O-Ring
5x15x0.3垫片
T01049
5x15x0.3 Washer
Gear Differential
齿轮差动
6
10x15x4轴承
10x15x4 Ball Bearing
T02099
6
10x15x4轴承
10x15x4 Ball Bearing
T02099
5x15x0.3垫片
5x15x0.3 Washer
T01049
5x1.9 O环
5x1.9 O-ring
T01126
10x15x4轴承
T02099
10x15x4 Ball Bearing
..................1
10x15x4轴承
T02099
10x15x4 Ball Bearing
..................1
2x9.8钢针
2x9.8 Pin
T04032
OIL
油
OIL
油
OIL
油
OIL
油
