Elite Massage Chair Owner’s Manual

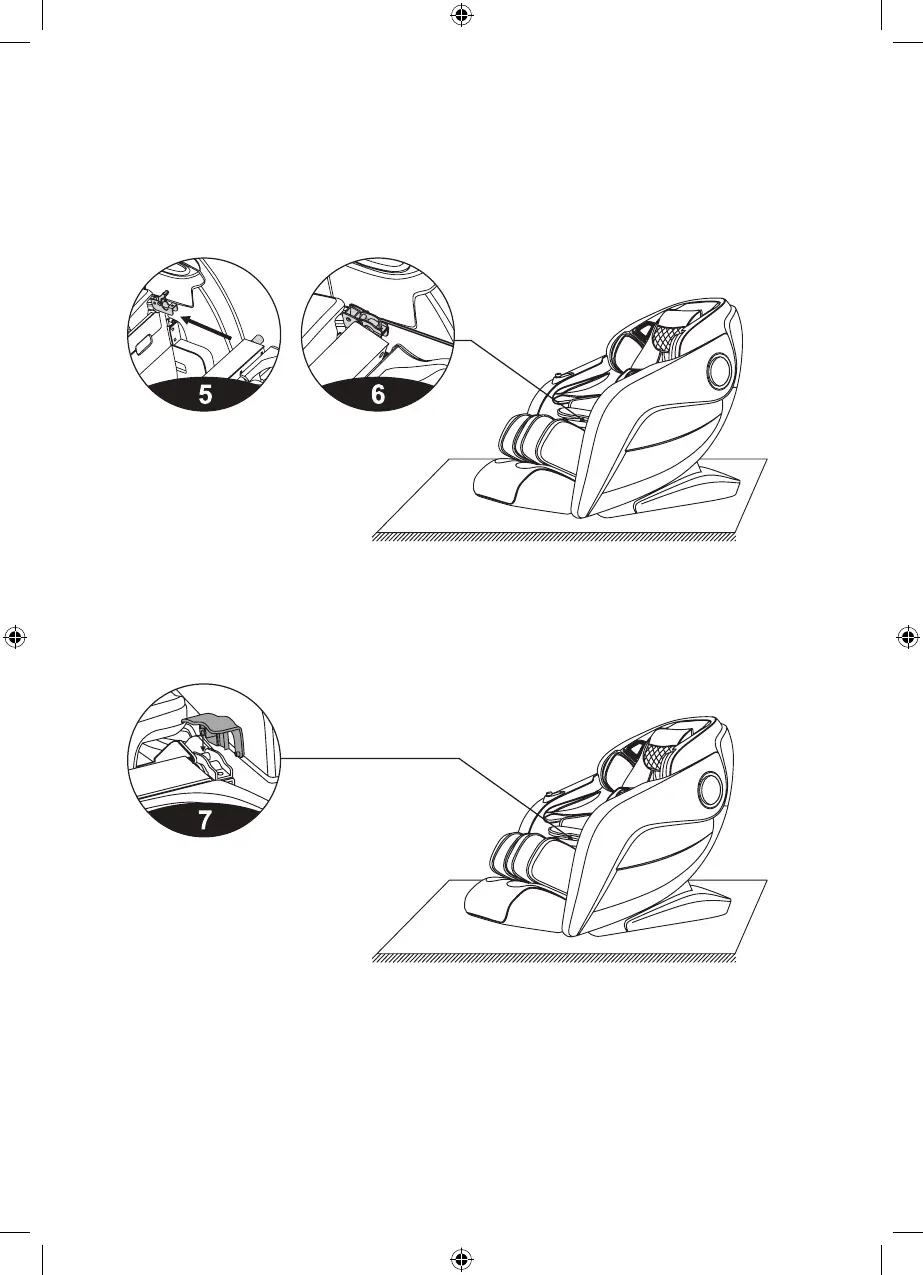

2.5 Then clip the lower leg (left and right shaft) into the frame support hinge
plate at the same time(gure 5).
2.6 Cover the rotating shaft cover, press leg rest rotating cover, and then
tighten leg rest rotating cover board with two M5×14-12.9 screws and a
6×12×1.5 at pad by supplied 4# hex wrench. (Fig. 6)
2.7 After the screw is locked, insert the rear slot of the leg rest cover into
the pin, and then press the front end of the leg rest cover down and the
rotating shaft. Make sure the cover is completely parallel and the leg rest
is installed (Figure 7)
