Page 25
TEBO
™
Ultimate Chair Owner’s Manual

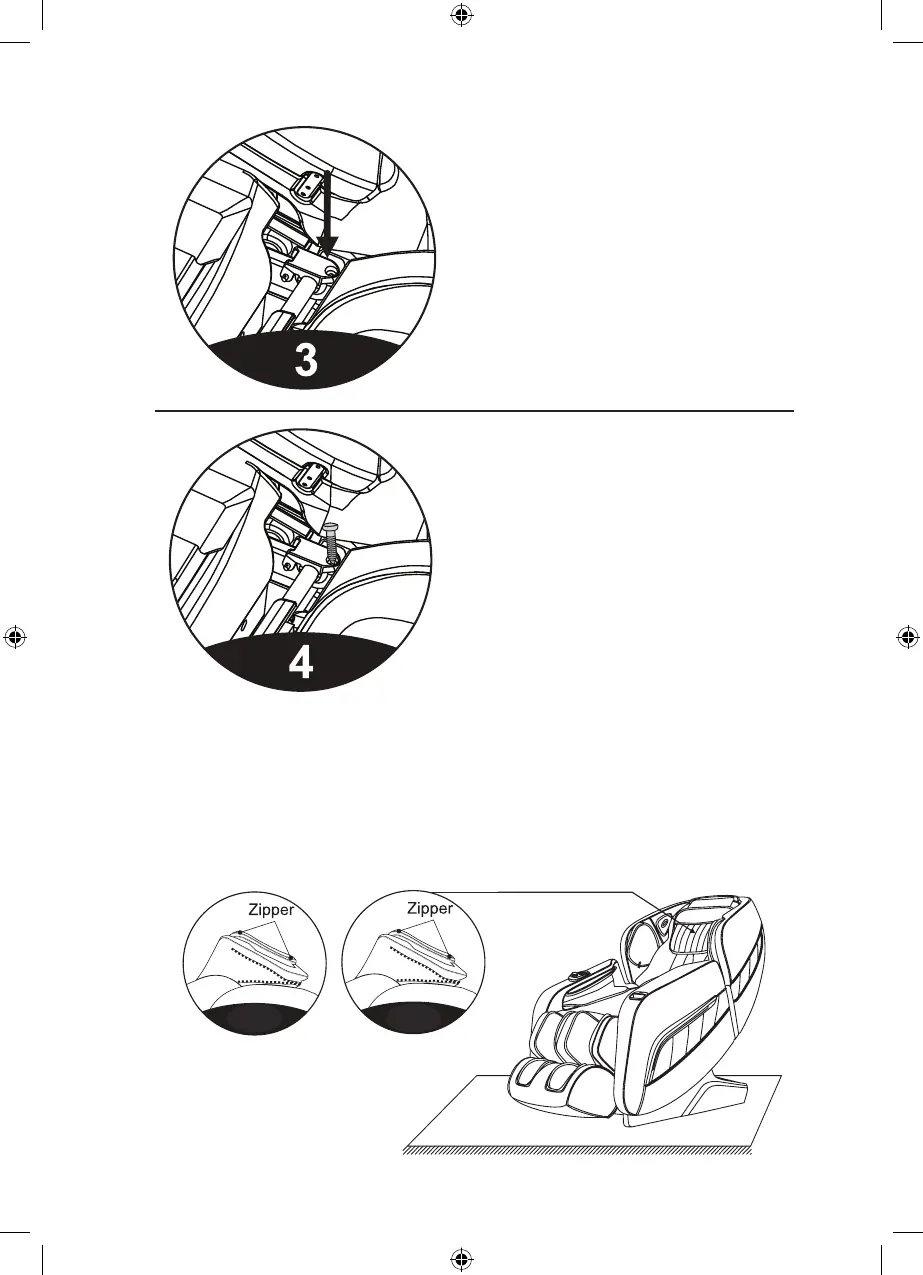

Turn the leg xing cover over the round
tube on both sides of the legs (gure 3)
Use 2pcs M4 screws to x the legs to
the massage chair. Check thoroughly
that the wires and air hose are properly
connected and manually check the calf
section can move freely.
9. Head cushion and back rest pad
The head cushion allows you to control the intensity of the neck and
shoulder massage. You can decide whether to use the head cushion, but it is
recommended for optimal comfort and neck support. The back rest cushion and
the back rest is connected by a zipper(Figure 1). The head cushion and the back
rest cushion are connected by Velcro as shown in the illustration (Figure 2).
21
