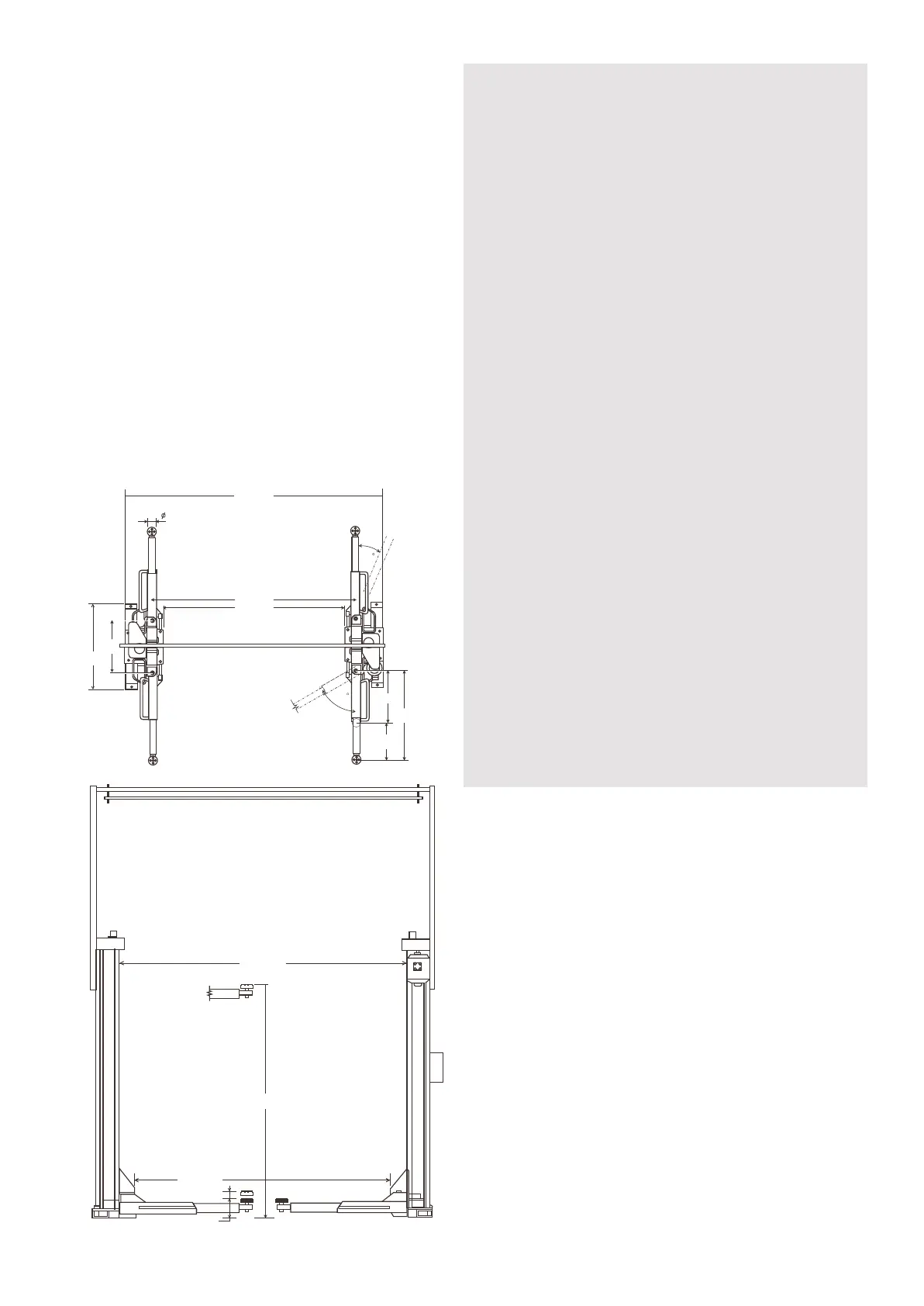

70 Adjustment
125 Min. Pad height
2000
2670
2270
Safety Precautions
• Do not raise or lower the hoist when people are under
near or on the top of the hoist or vehicle.
• Always watch the vehicle while raising or lowering.
• Always consider the vehicle stability before removing
or adding parts.
• Do not use the hoist motion for removing or adding
parts.
• Some vehicles are not suitable for lifting on a 2 post
hoist. e.g. Toyota Landcruiser 80 series.
• Always keep the lifting pads clean and in good
condition.
• Use only Tecalemit approved lifting accessories.
• Always turn the isolating switch to the horizontal “off”
position when stopping the hoist after raising.
Switching to the “off” position will immediately stop the
hoist if there is any malfunction and will isolate the
hoist and protect the operator should the electrics be
damaged in any way. It will also protect the hoist
electric’s from damage from high voltage spikes.
• In an emergency or when servicing, turn the isolating
switch to “O” and padlock it.
• In an emergency DO NOT manually raise or lower the
hoist.(Refer emergency operation)
• Do not directly spray or hose the hoist with water as it
will eventually cause corrosion and shorten the life of
the hoist. The hoist is not suitable for operations that
involve washing of the vehicle. (If washing down the
floor around the hoist, raise the arms 200 mm off the
floor so the hole in the column blind is covered by the
carriage to prevent any over-spray entering the oil
reservoir).
• This hoist is designed for raising vehicles. Do not use
it for any other purpose.
• Do not have vehicle engine running on hoist unless
absolutely necessary, to avoid injury from the hot
exhaust or rotating parts.
Description
The hoist is an electromechanical, screw type, 2 post
hoist.
The hoist is “baseless” to give a clear floor with no
obstructions under the vehicle when it is raised to the
working height and no raised base between the posts
to drive the vehicle over.
A substantial overhead frame is fitted to support the
tops of the posts so they do not rely totally on the
concrete floor for strength. This allows the hoist to be
safely installed on most concrete floors. The hoist is
driven by two electrical motors which turn the two lifting
screws. Two lifting nuts run on the lifting screws and
raise or lower the lifting carriages and lifting arms. The
lifting screws are automatically lubricated every lift.
The height of both sides of the hoist are automatically
kept level by a computer controller. The computer will
also stop the hoist and switch on a warning light if the
hoist is not working correctly.
TEC3000XB Statutory Design Approvals and
References
State Approval Reference No.
South Australia SD96200-2
Western Australia Refer to S.A.
New South Wales Not Required
ACT Refer to S.A.
Northern Territory Refer to S.A.
Queensland Q16370
Tasmania Refer to S.A.
Victoria Refer to S.A.
New Zealand Not Required
3290
2500
2290
635
1200
1100 MAX
450 MAX
110
70
20
