Tech 21 SansAmp PSA 1.1 User Manual

14 15

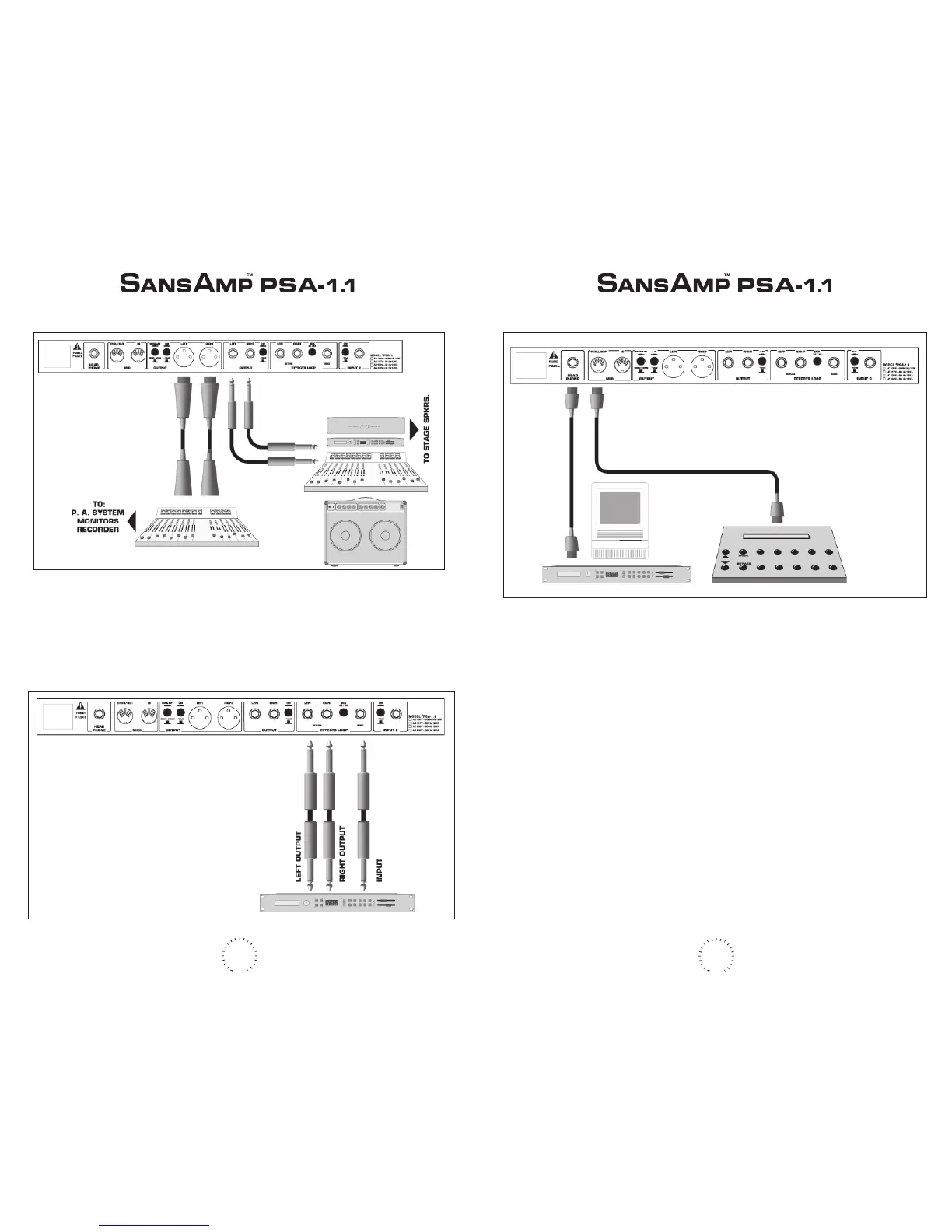

USING THE SANSAMP PSA’S OUTPUTS USING MIDI
USING THE EFFECTS LOOP
The SansAmp PSA has dual 1/4" unbalanced and XLR balanced Outputs for interfacting
with all types of gear. XLR Outputs provide a signal for driving pro gear, including P.A. sys-
tems, mixers, signal processors. 1/4" Outputs are ideal for feeding most mixers, signal proces-
sors, and instrument amplifiers. Each set can be used simultaneously and independently.
The Effects Loop lets you patch in reverbs,
delays, and other signal processors. If your
signal processor has only one output
(mono), then plug it into the Right Return.
Note: If you engage the 50/50 switch, then
50% of the SansAmp PSA signal goes
through your effects processor, and the
other 50% passes directly to the 1/4" and
XLR Outputs.
All MIDI gear, including MIDI footcontrollers, signal processors, keyboards, and computers,
can be connected to the SansAmp PSA. The MIDI In accepts Program Change commands,
as well as MIDI Map and Program dumps. The MIDI Thru/Out jack is usually configured as a
MIDI Thru, except when data is being transmitted from the SansAmp PSA.
