9

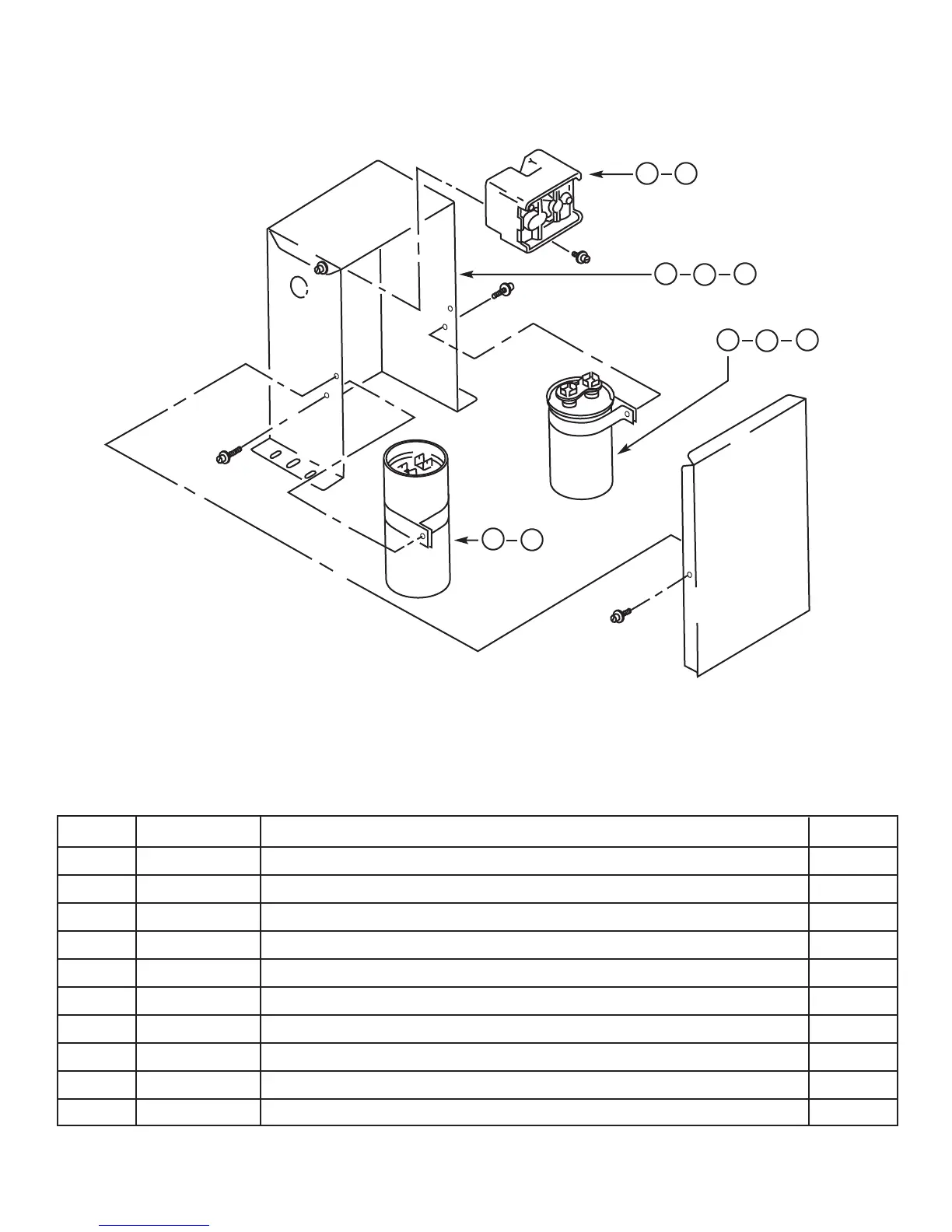

Figure 4: AIR COMPRESSOR STARTER ASSEMBLY
KEY PART NO. DESCRIPTION UNIT
1 CRA-115 115 V CAP AND RELAY ASSEMBLY, COMPLETE 1
2 CRA-208 208-230 V CAP AND RELAY ASSEMBLY, COMPLETE 1
3 CRA-230 230 V ONLY CAP AND RELAY ASSEMBLY, COMPLETE 1
4 PR-115 115 V POTENTIAL RELAY 1
5 PR-208 208-230 V ONLY POTENTIAL RELAY 1
6 RCC-115 115 V RUN CAPACITOR 1
7 RCC-208 208-230 V RUN CAPACITOR 1
8 RCC-230 230 V ONLY RUN CAPACITOR 1
9 SCC-115 115 V START CAPACITOR 1
10 SCC-230 208-230 V / 230 V ONLY START CAPACITOR 1
ULTRA CLEAN AIR COMPRESSOR STARTER ASSEMBLY
1
2
3
6
7
8
9
10
4
5
