Tech West ACL4D2 - Page 12

0
10
20
30
40
50
60
7
8
90
100
psi
100
90
80
70
60
50
0
0
20
10
0
10
2
4
4
3
3
2
5
5
8
6
7
7
1
1
KEY PART NO. DESCRIPTION UNIT
1 CPG-250 COMPRESSOR GAUGE 1
2 BV-250 1/4” BALL VALVE 1
3 MI-100 MOISTURE INDICATOR 1
4 FA-4-4 1/4” FLARE HOSE FITTING 1
5 BN-250-CL 1/4” BRASS CLOSE NIPPLE 1
6 BT-250 1/4” BRASS TEE 1
7 BSE-250 1/4” BRASS ELBOW 1
8 BPC-4 1/4” BRASS CROSS 1

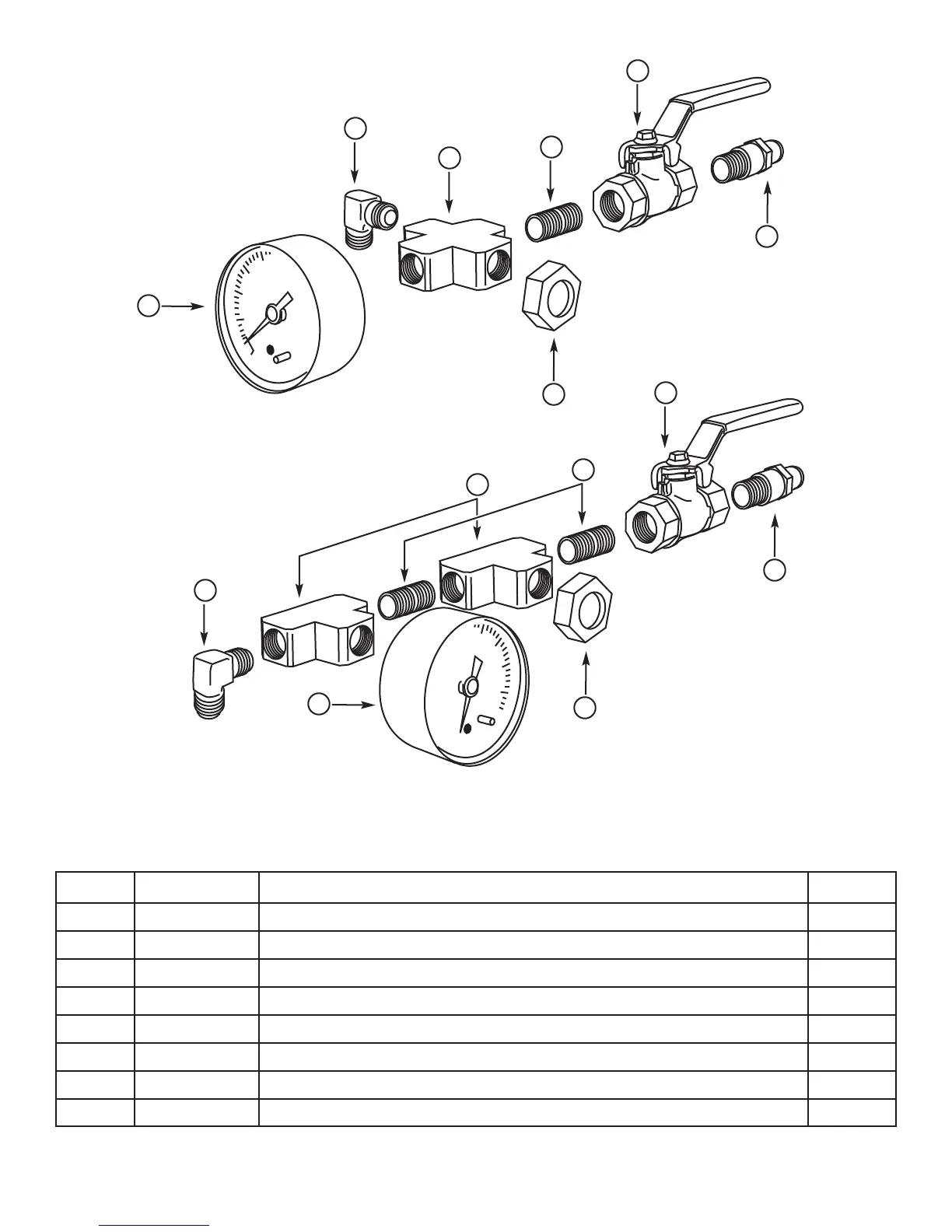

GAUGE AND CUT-OFF ASSEMBLY
SINGLE COMPRESSOR CONFIGURATION
DUAL AND TRIPLE
COMPRESSOR CONFIGURATION
