Tech West ACL4D2 - Page 13

11

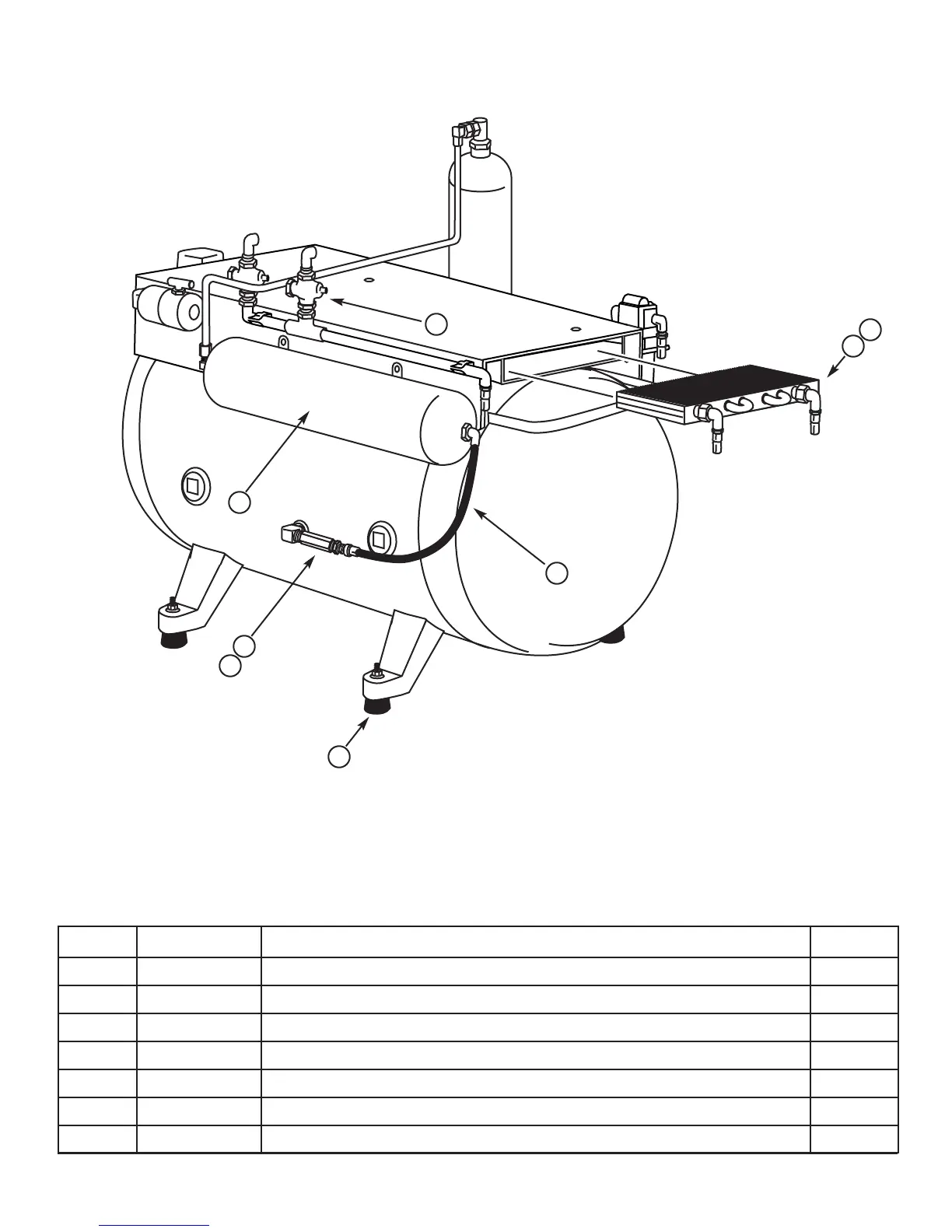

REAR VIEW ASSEMBLY AND PARTS LIST
KEY PART NO. DESCRIPTION UNIT
1 CV-375MF-100 3/8 CHECK VALVE MALE TO FEMALE CONNECTION 1
2 CPT-100 COMPRESSOR PURGE TANK 1
3 CV-375D-100 3/8 CHECK VALVE 1-3
4 HA-12-250 1/4 HOSE ASSEMBLY - 12” LONG 1
5 DPC-1 DRYER PRE COOLER SINGLE COMPRESSOR 1
6 DPC-2 DRYER PRE COOLER DUAL & TRIPLE COMPRESSOR 1
7 RFV-100 RUBBER MOUNTING FEET 4
4
3
2
1
7
5
6
3
