being sucked back into the unit. Also do not overfill the barrel and to lay the
barrel on its side
• Do not smoke or use open flame when flammable materials are being dispensed
• This equipment is for indoor use only

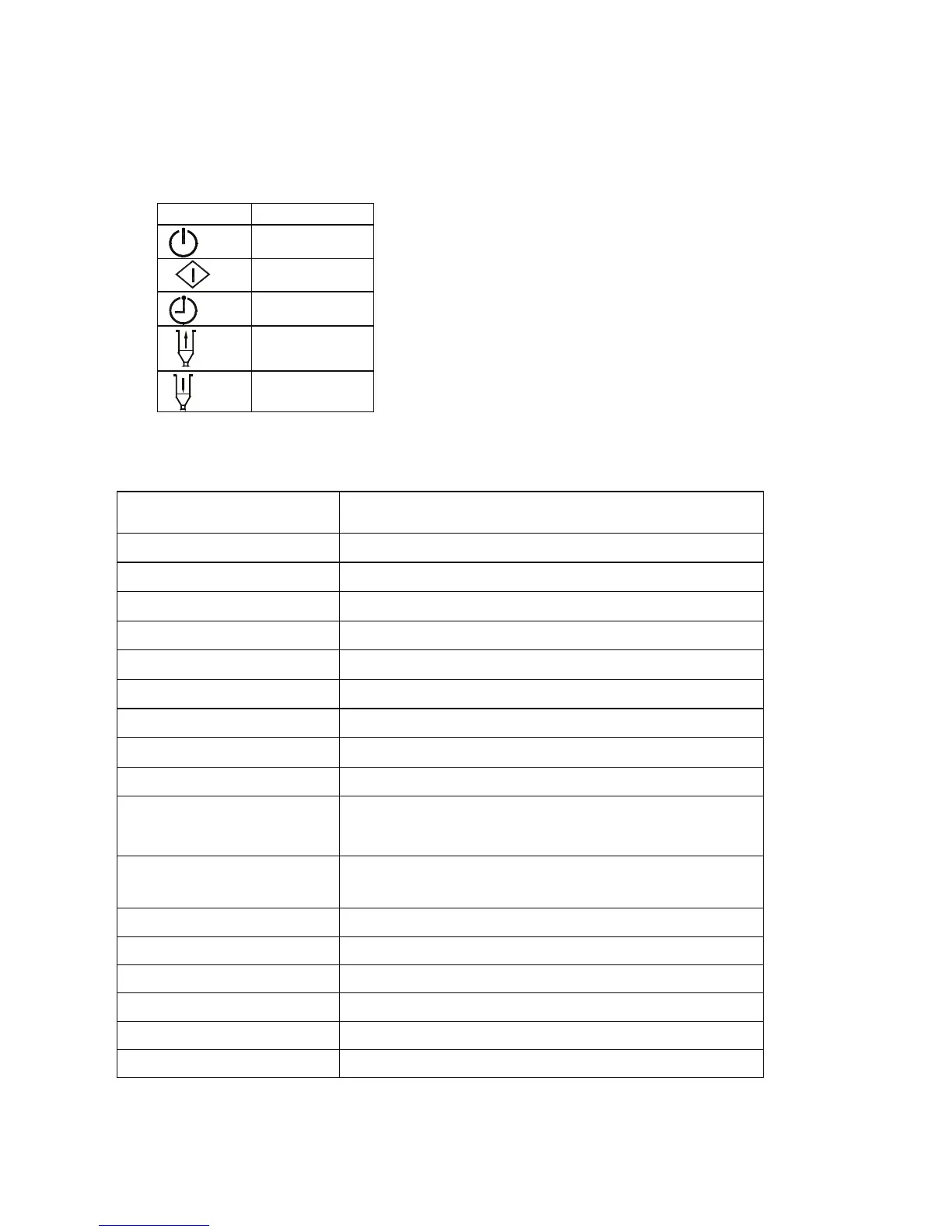

2 SYMBOL DEFINITIONS
Symbol Definition
Power On/Off
Cycle Mode
Timer
Vacuum
Pressure
3 SPECIFICATIONS
Size
152mm X 165mm X 178mm
(6” X 6.5” X 7.0”)
Weight 1.2 kg (2.6lbs)
Input Voltage 24 VDC
Rated Power 10 W
Air Input 100 psi (6.9 bar) Max.
Pollution Degree II
Installation Category I
Indoor Use Altitude up to 2,000m (6,562ft)
Operating Temperature 0 C to 50 C (32 F to 122 F)
Storage Temperature -10 C to 60 C (14 F to 140 F)
Max. Relative Humidity
80% for temperature up to 31 C (87.8 F) Decreasing
linearly to 50% relative humility at 40 C (104 F)
Air Output
TS250 = 0-100 psi (0- 6.9 bar)
TS255 = 0-15 psi (0-1 bar)
Vacuum 406mm (16”) of Hg
Timer 0.020-60.000 seconds
Cycle Mode PURGE, TIMED
Timing Repeat Tolerance +/- 0.001%
Cycle Rate 600 cycles/min
stnemges yalpsid 2 X 61 DCL
