techem Compact Ve - Approved Installation Positions

9
GB

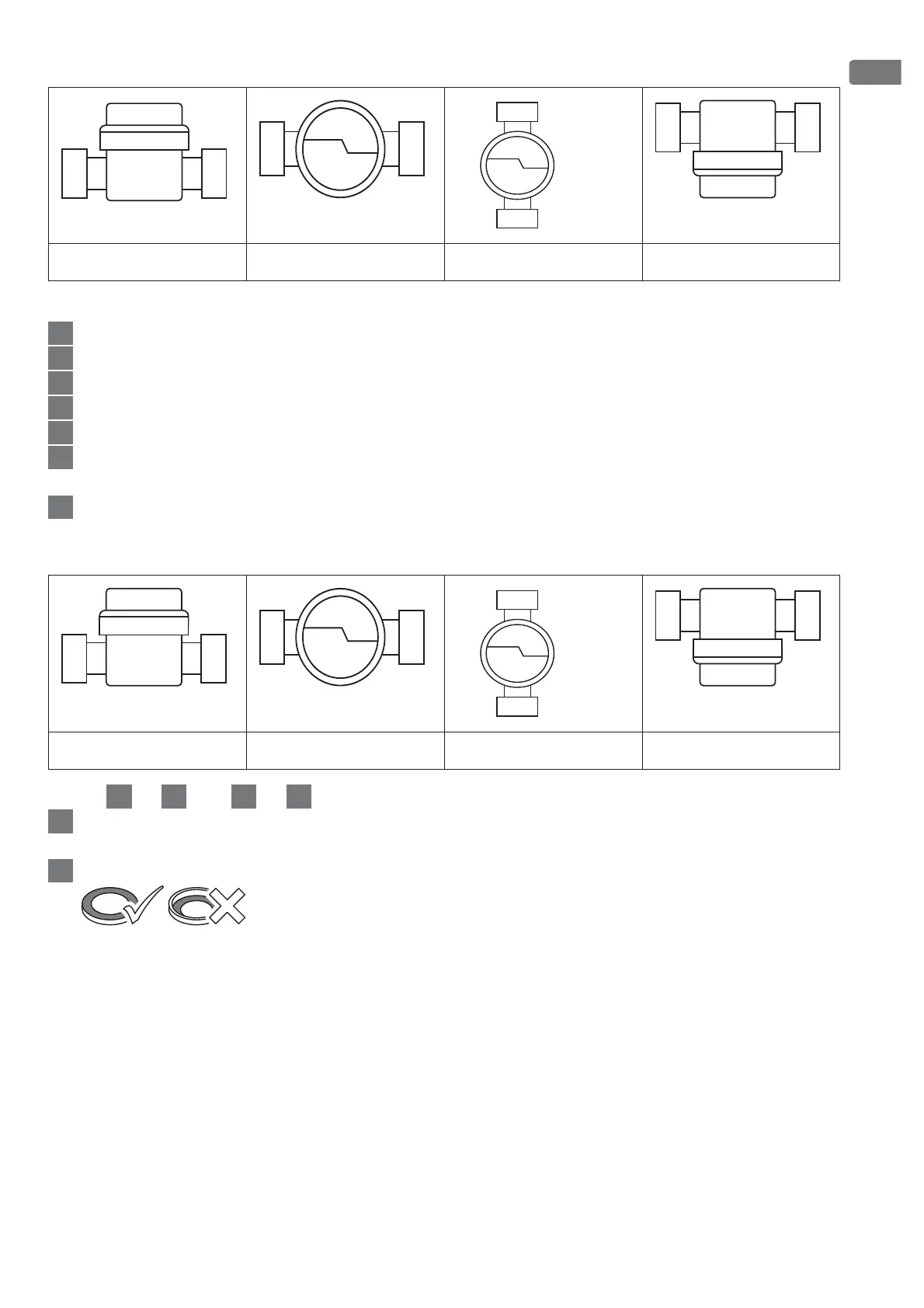

Approved installation positions TE1
9999
TE1 procedure:
1
Rinse the pipeline thoroughly.
2
Close the shut-o valves in the inlet and outlet.
3
Unscrew the temporary cover or old meter anti-clockwise.
4
Clean the connector's sealing surfaces and the measuring capsule's O-ring.
5
Grease the connector's sealing surfaces lightly with tap grease.
7
Screw the measuring capsule hand-tight into the connector and tighten it by
1
/
8
to
max.
1
/
4
turn with the Techem hook spanner.
8
Turn the computer unit to a position in which it is easily readable.
Approved installation positions IST
9992
Steps
1
to
4
and
7
to
8
as for connection geometry TE1.
5
Apply a thin layer of tap grease to the measuring capsule's screw thread and small
O-ring as well as the L-profile seal.
6
Insert L-profile seal in the connector - its flat surface must face upwards.
