Techly IDATA EXT-E704K - Panel Description; Installation Procedures

HDMI 2.0 EXTENDER OVER CAT.6/7 CABLE 4K
9
ENEN

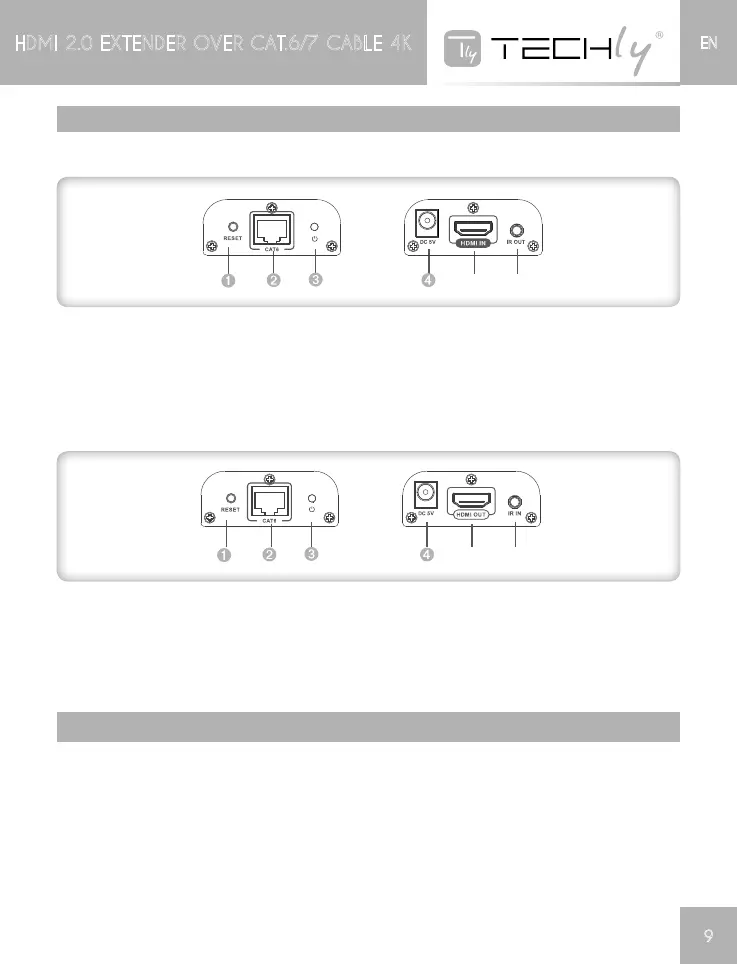

PanEL dEscrIPtIon
1.Transmitter unit(TX)
➎ ➏
➊
Reset   Pressforrestartingtheunit
➋
RJ45signaloutput  OutputencodedHDMIsignal
➌
Powerindicator  LEDindicatorturnonwhenpoweron
➍
PowerinputDC5V  Connectwithpowersupply
➎
HDMIsignalinput  ConnectwithHDMIsourcedevice
➏
IRsignaloutput  ConnectwithIRblasterextensioncable
2. Receiver unit (RX)
➎ ➏
➊
Reset   Pressforrestartingthedevice
➋
R145signalinput  InputencodedHDMIsignal
➌
Powerindicator  LEDindicatorturnonwhenpoweron
➍
PowerinputDC5V  Connectwiththepowersupply
➎
HDMIsignaloutput Connectwiththedisplaydevice
➏
IRsignalinput  ConnectwithIRreceiverextensioncable
InstaLLatIon ProcEdurEs
How to make a Cat6 network cable?
Follow the standard of EIA-568:
1-Orange/white 2-Orange  3-Green/white
4-Blue  5-Blue/white 6-Green
7-Brown/white 8-Brown
