Techly IDATA EXT-E70S - Panel Description; Installation Procedures

HDMI EXTENDER OVER CAT.6/7 CABLE 40M
9
ENEN

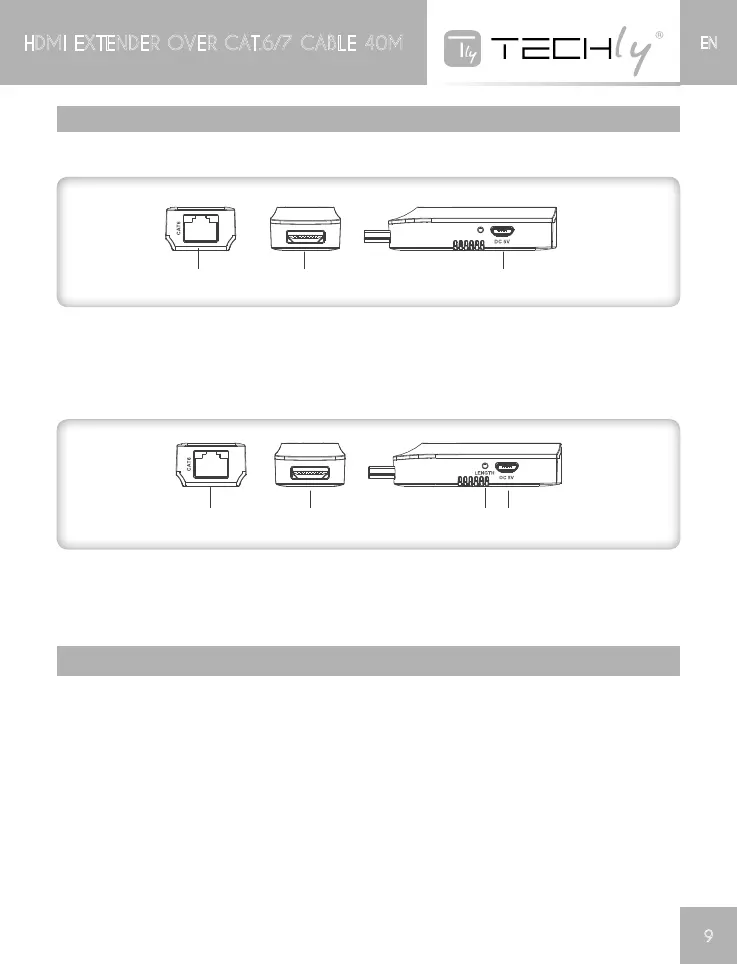

PanEL dEscrIPtIon
1.Transmitter unit (TX)
➊
➋ ➌
➊
RJ45signaloutput  OutputencodedHDMIsignal
➋
HDMIsignal  ConnectwithHDMIsourcedevice
➌
Powerinput  ConnectwithUSBcable
2. Receiver unit (RX)
➊
➋ ➌ ➍
➊
R145signalinput  InputencodedHDMIsignal
➋
HDMIoutput  ConnectwithHDMIdisplaydevice
➌
LENGTHbutton  Foradjustingtheunitself-adopttothelengthofthenetworkcable
➍
Powerinput  ConnectwiththeUSBcable(optional)
InstaLLatIon ProcEdurEs
How to make a Cat6 network cable?
Follow the standard of EIA-568:
1-Orange/white 2-Orange  3-Green/white
4-Blue  5-Blue/white 6-Green
7-Brown/white 8-Brown
