Indoor Unit KPA128R5TAA
Room air temp. : 27°C
Fan speed : High
Cooling
Room air temp. : 20°C
Fan speed : High
Heating
01234567
1
0
2
3

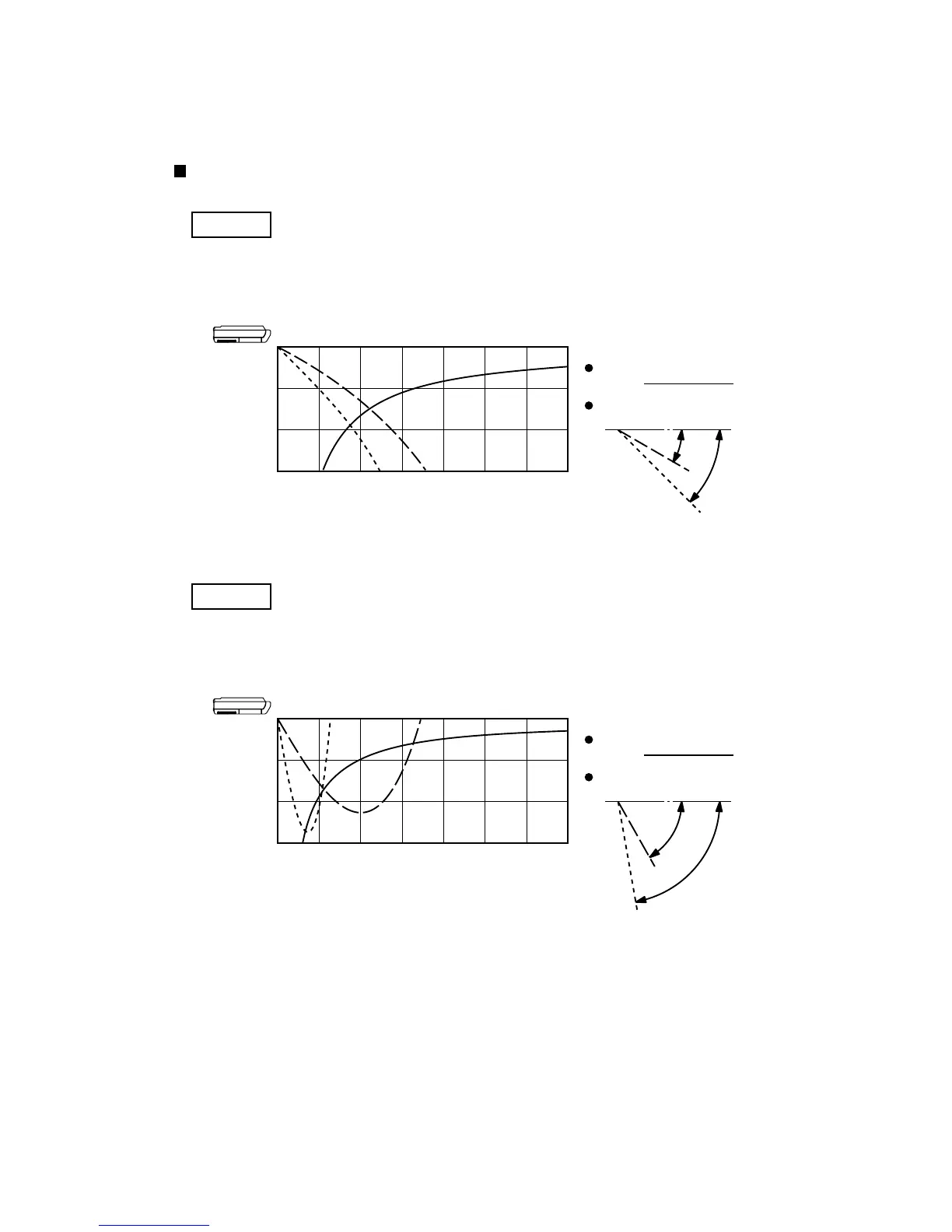

Horizontal distance (m)
Axis air velocity (m/s) Vertical distance (m)
Axis air verocity
Flap angle
45°
30°
Ceiling mounted
01234567
1
0
2
3
Horizontal distance (m)
Axis air velocity (m/s) Vertical distance (m)
Axis air verocity
Flap angle
60°
80°
