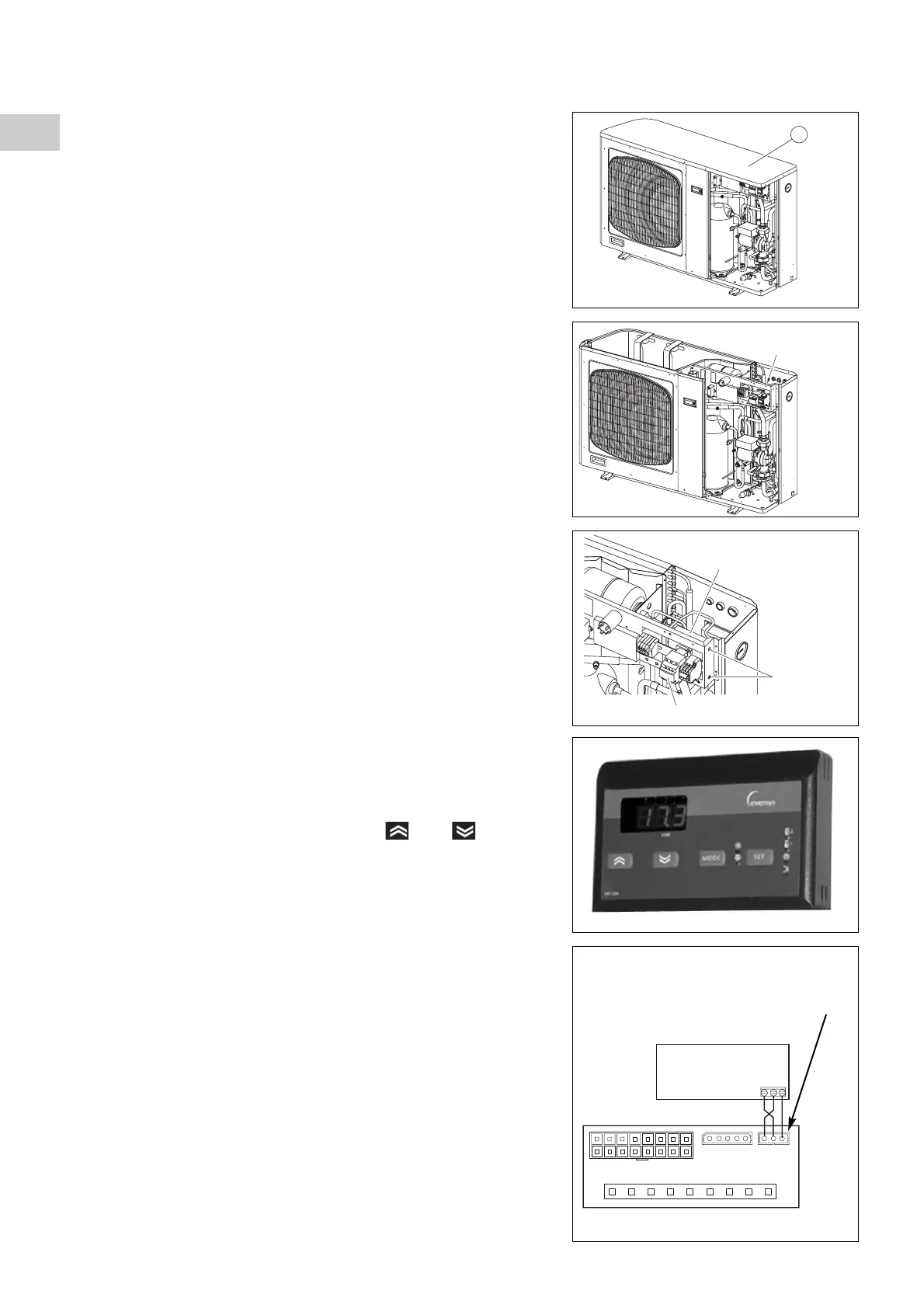

6.3 - SINGLE START-UP KIT (for single-phase model)
• Code 70550004.
• This kit is used to lower the start-up current of the single-phase
compressors. The average RMS current during the start-up phase is
approximately 42 A for the PHRT 9 and approximately 43 A for the
PHRT 12 (single-phase).
• After having removed the side panel, also remove the upper panel A.
• The starter is located on the back on the electric panel and is secured by
two screws and two nuts (supplied).
Note:
To facilitate the installation process, it is preferable to connect the
wires between the starter and the compressor contactor before
securing the starter to the panel.
• Disconnect the black wire and the blue wire from terminals 4 and 6 of the
compressor contactor and connect them to the starter (blue wire on
terminal 2 and black wire on terminal 4).
•
Connect the wires (supplied) between the starter and the compressor
contactor:
- blue wire on terminal 1 of the starter and on terminal 6 of the
compressor contactor,
- black wire on terminal 3 of the starter and on terminal 4 of the
compressor contactor.
6.4 - REMOTE CONTROL
• Code 70250055.
• The functions and display are exactly the same as those on controller.
• The only difference concerns the buttons and which are
separated by the “ON/OFF” and “Mode” buttons.
• Reminder: the parameters are accessed by simultaneously pressing the
“ON/OFF” and “Mode” buttons.
• The controller is designed to be installed inside sheltered rooms.
• Connection :
- the control is delivered with a connecting it to the “ECH” controller,
- to extend the link, max. length. : 100 meters, use twisted pair shielded
cable with a cross section of at least 0.5 mm
2
(shielding of the ground
on unit side).
CAUTION :
Do not route this cable near power cables.
The operation must take performed with the unit's power supply off
and locked out.
