6 - ACCESSORIES
6.1 - WATER CONNECTION HOSES
• Length 1 m, insulated, female:
-Ø3/4” code 70600054 for PHRT 9,
-Ø1” code 70600055 for PHRT 12, 16 and 18.

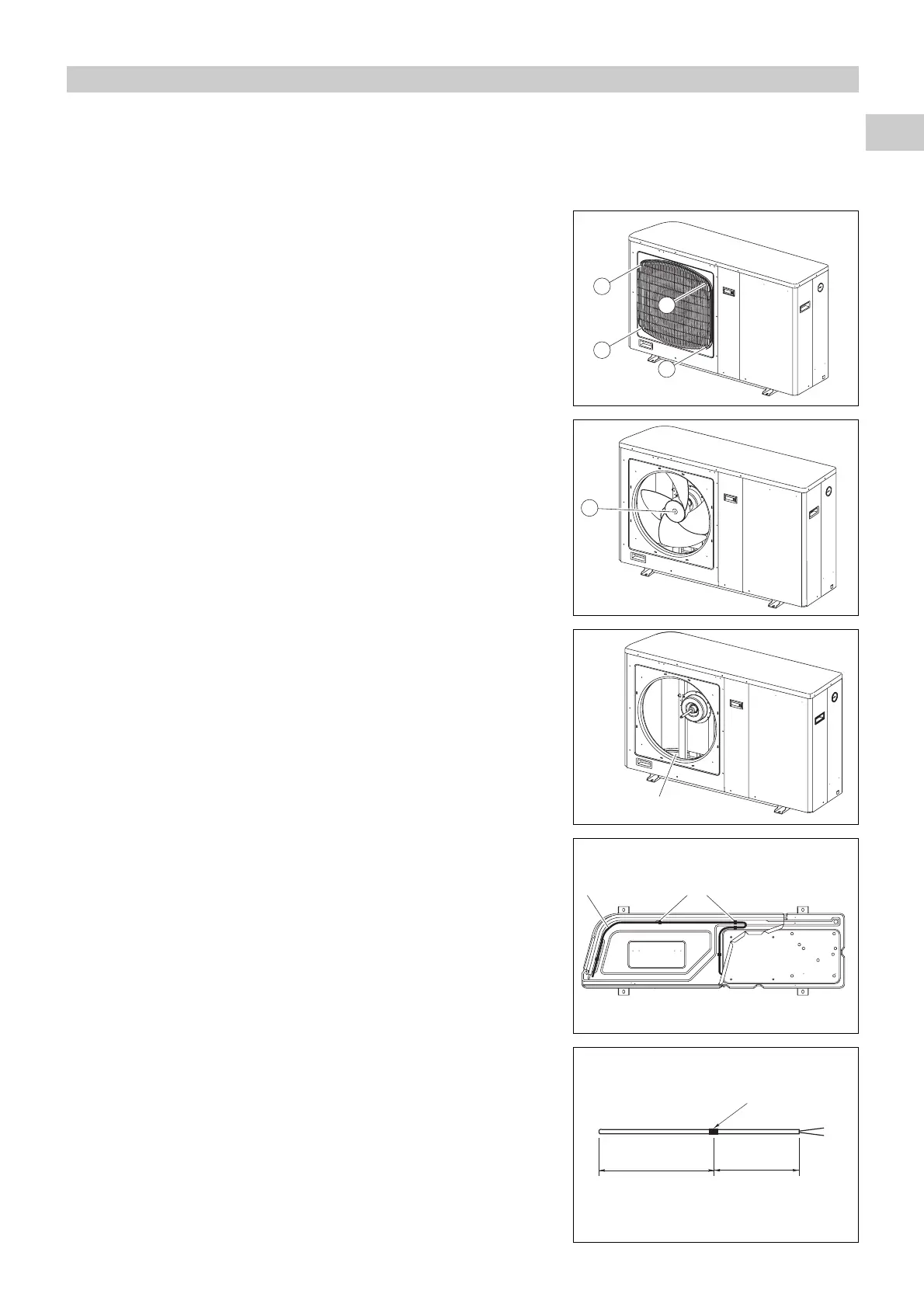

6.2 - CONDENSATE TANK HEATING CORD KIT
• Code 70200055.
• Remove the fan's protective grille (4 screws A).
• Remove the fan blade (nut B).
• Place the heating element in the bottom of the tank, as close as possible
to the fin tube exchanger.
• Position the isolated end on the left side and along the exchanger to the
back of the separating panel. Form a loop and return along the separating
panel.
• Use the aluminium adhesive strip to hold the heating cord in place.
• Pass the end of the heating cord through the grommet in the separating
panel with the fan wires.
• Connect the two wires on the printed circuit board between terminals 47
and 48.
Note:
The wire heats up over a length of 1.5 m.
