Technicolor DWA0120 Setup Guide

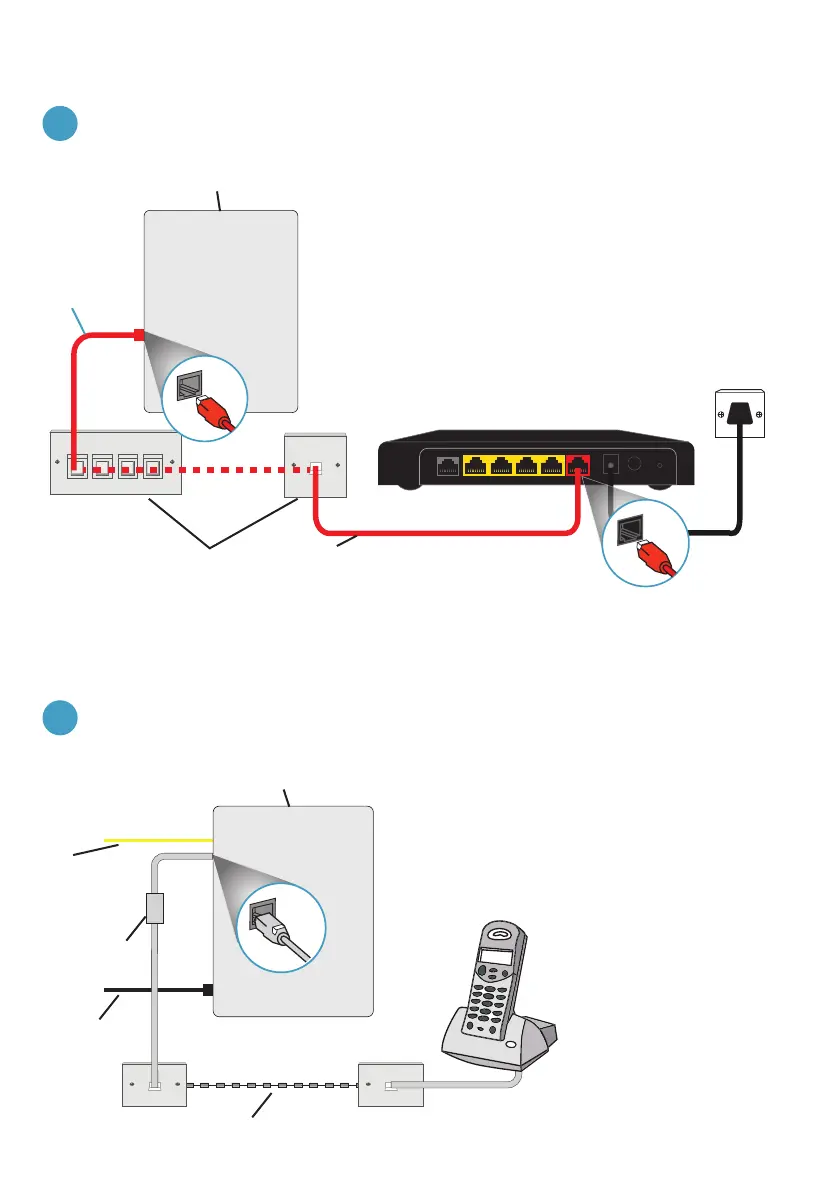

How to connect using internal wiring
How to connect your phone
• Use your internal wiring to move your router to a
more central location, e.g. the front room.
• Connect an Ethernet cable into LAN 1 of your ONT,
and the other end into a data port in your patch
panel.
• Using another Ethernet cable, connect it from the
coresponding data port, into the red WAN port of
your router.
1
1
Connect your phone using internal wiring
Connecting to the internet using internal wiring
• Plug your telephone into a telephone port in
the desired location of your property.
PHONE
1
Fibre Cable
ONT Power
Cable
Your ONT
Internal wiring
Phone Adaptor
DSL LAN 1 LAN 2 LAN 3 LAN 4 WAN
INPUT POWER RESET
WAN
LAN 1
Ethernet Cable
Ethernet Cable
Patch Panels
Your ONT

Technicolor DWA0120 Specifications

General

Device Type	Gateway
Wireless Technology	Wi-Fi
Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Ethernet Ports	4 x 10/100 Mbps
Antenna	Internal
Wireless Standards	802.11 b/g/n
Security Features	WPA2
Ports	4 Ethernet, 1 USB
