3 MANUAL INSTAL
LATION
DMS-CTC-20110713-0016 v2.0

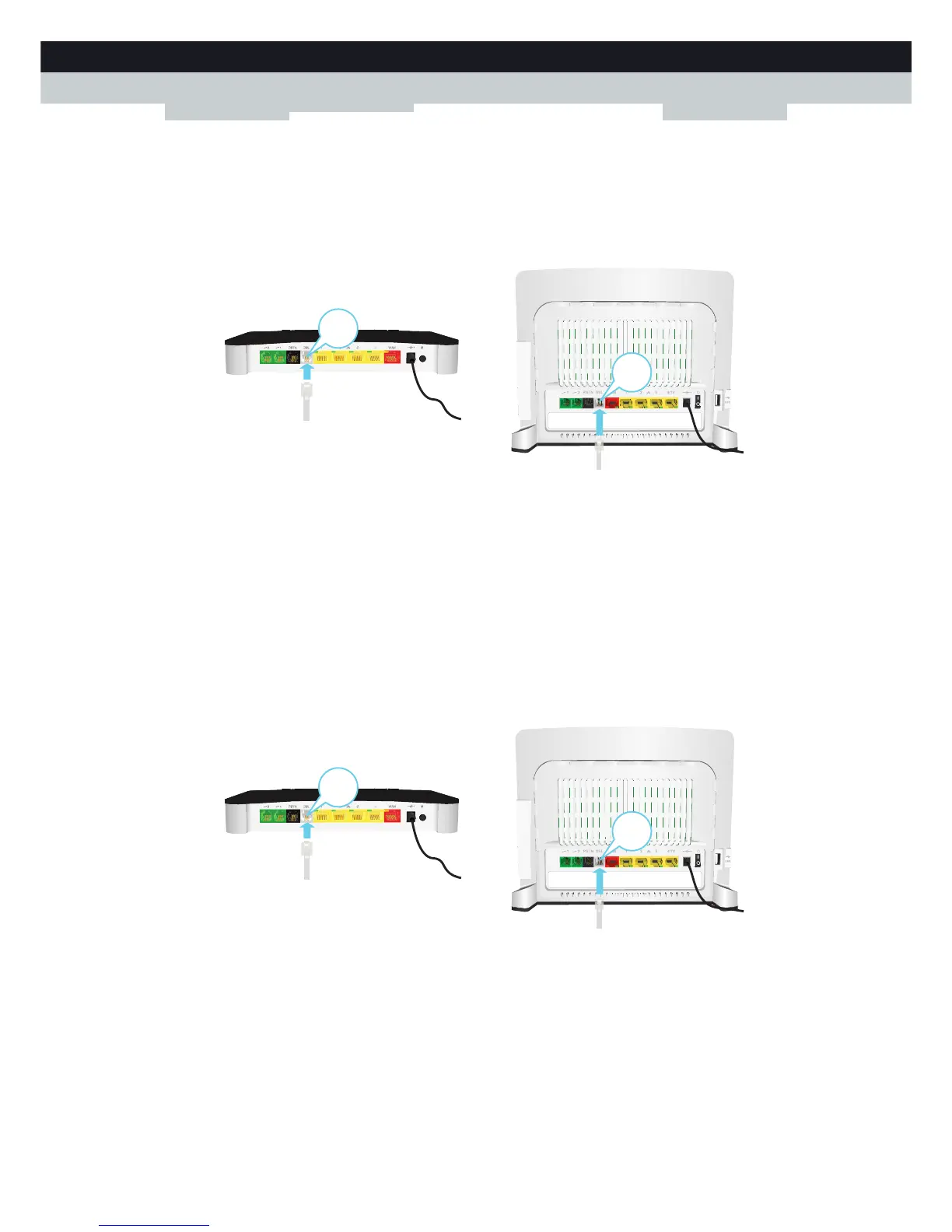

Scenario 1: A MediaAccess Gateway with integrated filter
Proceed as follows:
1 Take the DSL cable. This is the gray cable that is included in your box.
2 Plug one end of the cable in the grey DSL port on the back of your MediaAccess Gateway.
3 Plug the other end of the cable:
In the DSL/Modem output of your splitter/filter.
Directly into the telephone wall outlet if there is no splitter/filter between the network terminator and your local
phone network.
Scenario 2: A MediaAccess Gateway without integrated filter
Proceed as follows:
1 Take the DSL cable. This is the grey cable that is included in your box.
2 Plug one end of the cable in the grey DSL port on the back of your MediaAccess Gateway.
3 Plug the other end of the cable into the DSL/MODEM output port of your filter/splitter.
