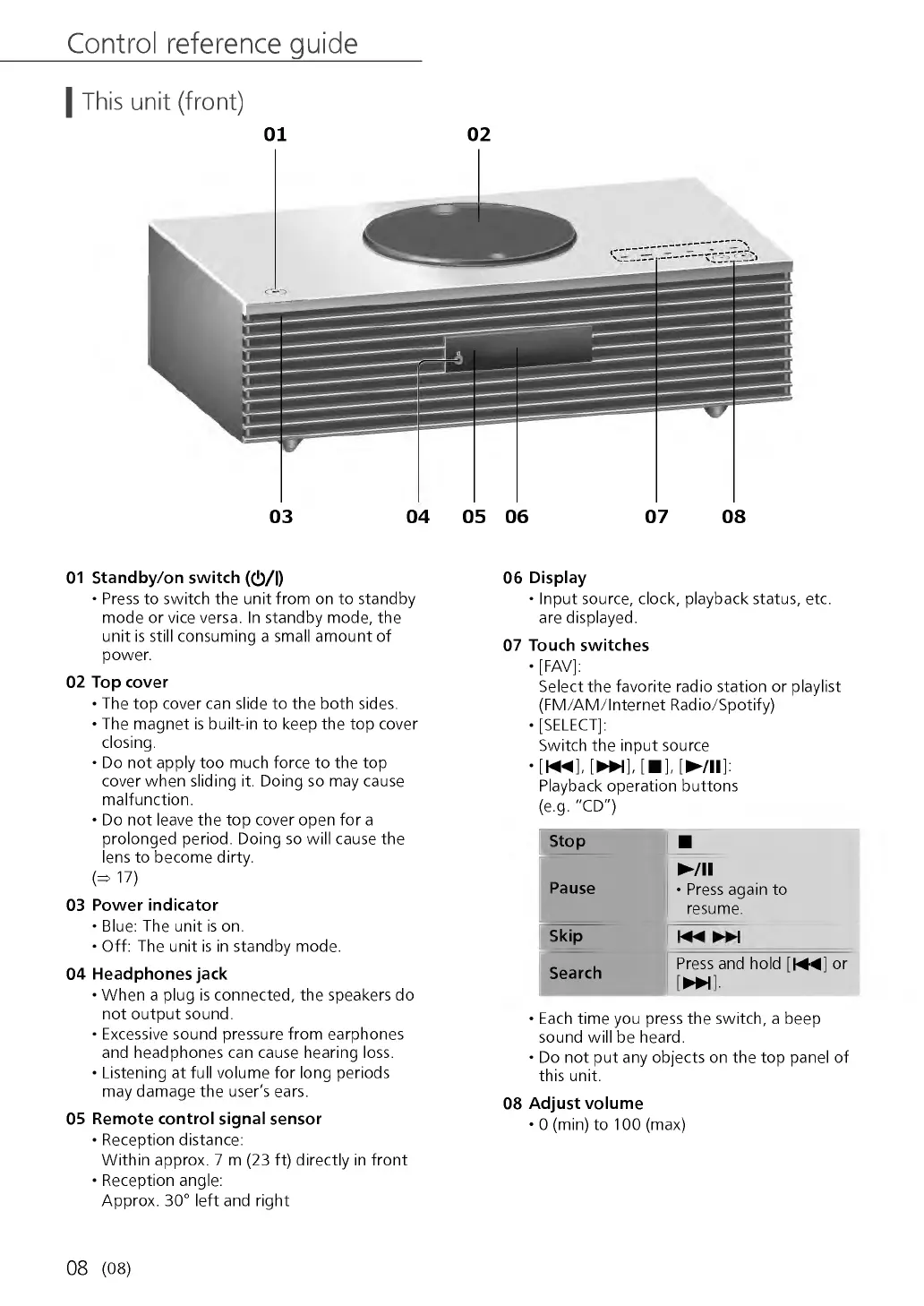

Control reference guide
I This unit (front)
01 02
03 04 05 06 07 08
01 Stan d by/o n sw itch (0/ D
• Press to switch the unit from on to standby
mode or vice versa. In standby mode, the
unit is still consuming a small amount of
power.
02 Top cover
• The top cover can slide to the both sides.
• The magnet is built-in to keep the top cover
closing.
• Do not apply too much force to the top
cover when sliding it. Doing so may cause
malfunction.
• Do not leave the top cover open for a
prolonged period. Doing so will cause the
lens to become dirty.
(^ 17)
03 P o w er indicator
• Blue: The unit is on.
• Off: The unit is in standby mode.
04 H ead phones jack
• W hen a plug is connected, the speakers do
not output sound.
• Excessive sound pressure from earphones
and headphones can cause hearing loss.
• Listening at full volume for long periods
may damage the user's ears.
05 R e m ote control signal sensor
• Reception distance:
W ithin approx. 7 m (23 ft) directly in front
• Reception angle:
Approx. 30° left and right
06 Display
• Input source, clock, playback status, etc.
are displayed.
07 Touch sw itch es
• [FAV]:
Select the favorite radio station or playlist
(FM /AM /Internet Radio/Spotify)
• [SELECT]:
Switch the input source
• [W * ], [► ► ], [■ ], [►/■■]:
Playback operation buttons
(e.g. "CD")
Stop
■
Pause
► / II
• Press again to
resume.
Skip
\ «
Search
Press and hold [M 4 ] or
[►►1].
• Each time you press the switch, a beep
sound will be heard.
• Do not put any objects on the top panel of
this unit.
08 A d ju s t volum e
• 0 (min) to 100 (max)
08 (08)
