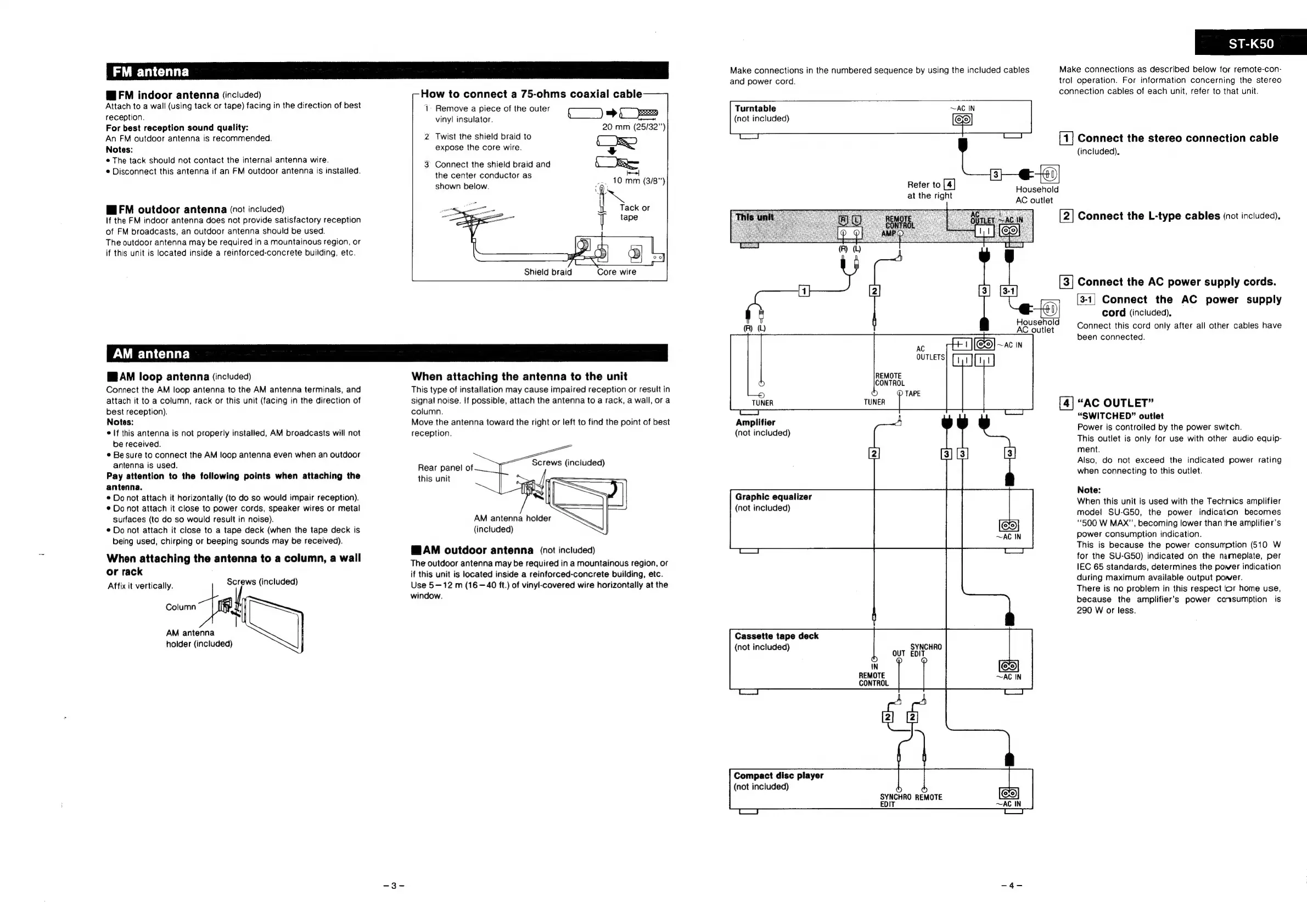

Technics QUARTZ ST-K50 User Manual

@FM indoor antenna (included)
Attach to a wall (using tack or tape) facing in the direction of best
reception.
For best reception sound quality:
An FM outdoor antenna is recommended.
Notes:
The tack should not contact the internal antenna wire.
© Disconnect this antenna if an FM outdoor antenna is installed.
HFM outdoor antenna (not included)
If the FM indoor antenna does not provide satisfactory reception
of FM broadcasts, an outdoor antenna should be used.
The outdoor antenna may be required in a mountainous region, or
if this unit is located inside a reinforced-concrete building, etc.
oe to connect a 75-ohms coaxial cable
1. Remove a piece of the outer C...) => (=
vinyl insulator.
20 mm (25/32”’)
2 Twist the shield braid to
expose the core wire. —
|
10 mm (3/8”)
3 Connect the shield braid and
the center conductor as
shown below.
Shield braid Core wire
AM antenna
WAM loop antenna (included)
Connect the AM loop antenna to the AM antenna terminals, and
attach it to a column, rack or this unit (facing in the direction of
best reception).
Notes:
¢ If this antenna is not properly installed, AM broadcasts will not
be received.
© Be sure to connect the AM loop antenna even when an outdoor
antenna is used.
Pay attention to the following points when attaching the
antenna.
© Do not attach it horizontally (to do so would impair reception).
¢ Do not attach it close to power cords, speaker wires or metal
surfaces (to do so would result in noise).
© Do not attach it close to a tape deck (when the tape deck is
being used, chirping or beeping sounds may be received).
When attaching the antenna to a column, a wall
or rack
Affix it vertically. Screws (included)
Column y
AM antenna
holder (included)
When attaching the antenna to the unit
This type of installation may cause impaired reception or result in
signal noise. If possible, attach the antenna to a rack, a wall, ora
column.
Move the antenna toward the right or left to find the point of best
reception.
Rear panel of Screws (included)
this unit
AM antenna hoider
(included)
WAM outdoor antenna (not included)
The outdoor antenna may be required in a mountainous region, or
if this unit is located inside a reinforced-concrete building, etc.
Use 5—12 m (16—40 ft.) of vinyl-covered wire horizontally at the
window.
Turntable
(not included)
Refer to [4]
at the right
(R) &
Amplifier
(not included)
Graphic equalizer
(not included)
Cassette tape deck
(not included) SYNCHRO
OUT EDIT
@ ©
IN
REMOTE
CONTROL
Compact disc player
(not included)
Make connections in the numbered sequence by using the included cables
and power cord.
i)
Household
AC outlet
tH)
Household
AC outlet
ST-K50
Make connections as described below for remote-con-
trol operation. For information concerning the stereo
connection cables of each unit, refer to that unit.
{4] Connect the stereo connection cable
(included).
[2] Connect the L-type cables (not included),
[3] Connect the AC power supply cords.
3-1} Connect the AC power supply
cord (included),
Connect this cord only after all other cables have
been connected.
[4] “AC OUTLET”
“SWITCHED” outlet
Power is controlled by the power switch.
This outlet is only for use with other audio equip-
ment.
Also, do not exceed the indicated power rating
when connecting to this outlet.
Note:
When this unit is used with the Technics amplifier
model SU-G50, the power indication becomes
‘500 W MAX’’, becoming lower than the amplifier’s
power consumption indication.
This is because the power consumption (510 W
for the SU-G50) indicated on the nameplate, per
IEC 65 standards, determines the pover indication
during maximum available output power.
There is no problem in this respect ior home use,
because the amplifier’s power consumption is
290 W or less.
