Technics SA-AX720 Operating Instructions

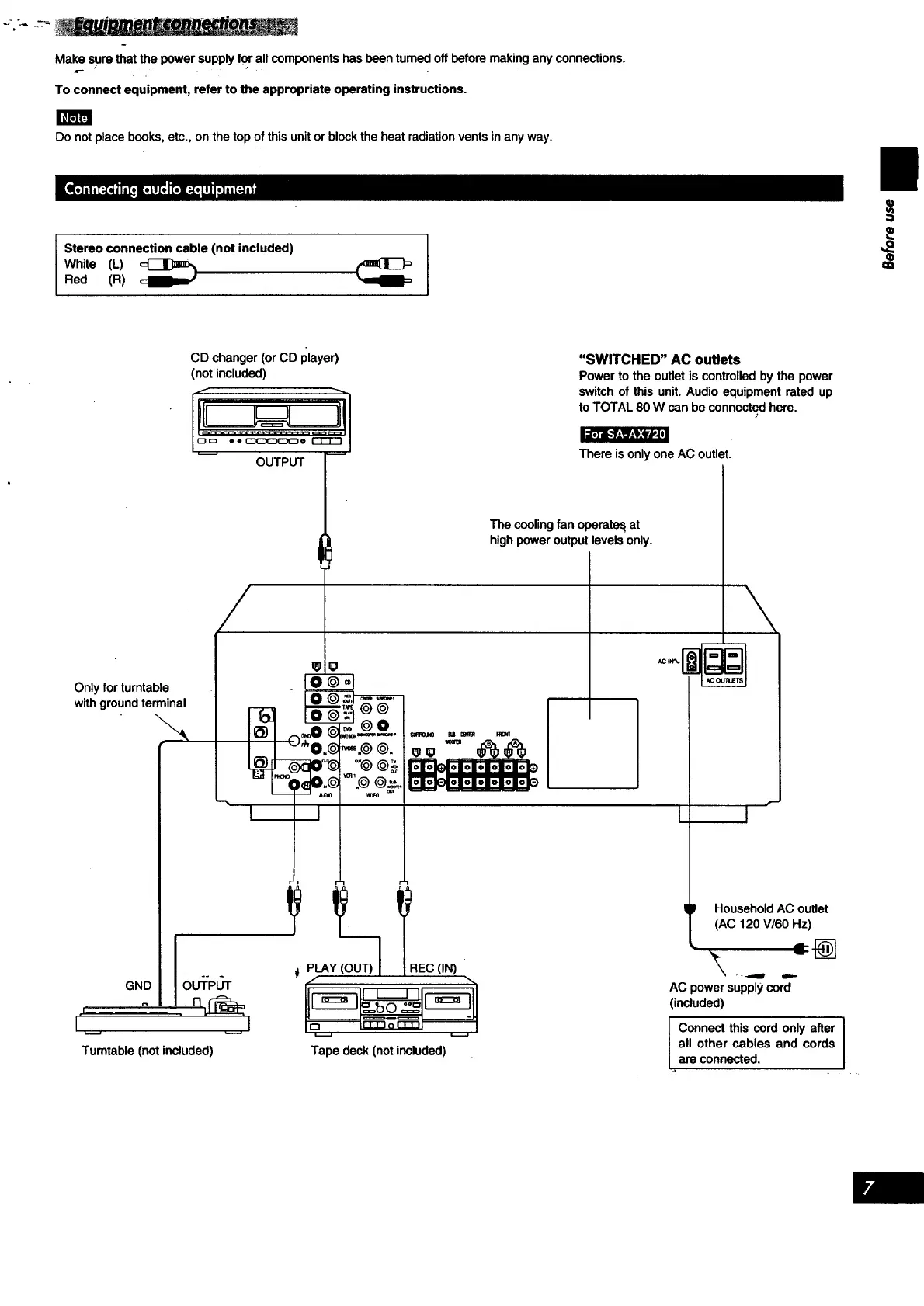

Make sure that the power supply for all components has been turned off before making any connections.
To connect equipment, refer to the appropriate operating instructions.
IIIrRF3
Do not place books, etc., on the top of this unit or block the heat radiation vents in any way.
Stereo connection cable (not included)
White (L)
Red (R)
I'a'_i,k'Jr.,_-,,:_l
Only for turntable
with ground terminal
GND I OU]:PLJT
oll n_
Turntable (not included)
CD changer(orCD player)
(notincluded)
OUTPUT
PLAY (OU--_ :IEC (IN)
Tape deck (not included)
"SWITCHED" AC outlets
Power to the outlet is controlled by the power
switch of this unit. Audio equipment rated up
to TOTAL 80 W can be connected here.
There isonly one AC outlet.
The cooling fan operate,_ at
high power output levels only.
i
I I
Household AC outlet
(AC 120 V/60 Hz)
=@
AC power supply cord
(included)
Connect this cord only after I
all other cables and cords
Iare connected.
..b

Technics SA-AX720 Specifications

General

Impedance	8 ohms
Weight	10.3 kg
Damping Factor	60 (8 ohms, 1 kHz)
Power Output	100 watts per channel into 8Ω (stereo)
Frequency Response	5 Hz - 100 kHz (+0 dB, -3 dB)
Total Harmonic Distortion	0.09%
Dimensions	430 x 158 x 375mm
Tuning Range	FM: 87.5-108.0 MHz, AM: 522-1629 kHz
Input Sensitivity	200 mV (Line In)
Output	Headphone out
Video Connections	Composite Video Input/Output
Speaker Load Impedance	8Ω to 16Ω
