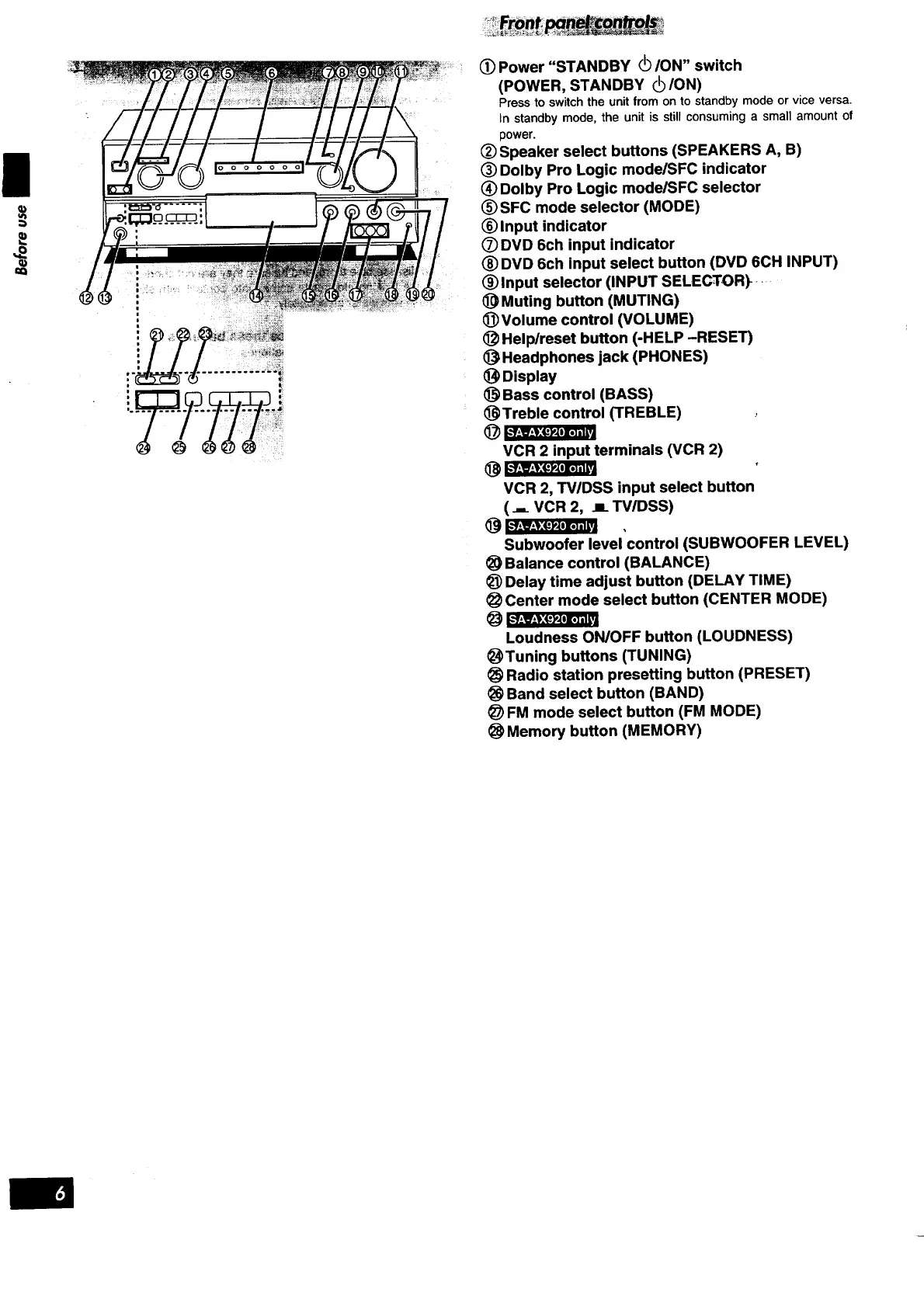

(_)Power "STANDBY _/ON" switch
(POWER, STANDBY _/ON)
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of
power.
Speaker select buttons (SPEAKERS A, B)
(_) Dolby Pro Logic mode/SFC indicator
(_ Dolby Pro Logic mode/SFC selector
(_ SFC mode selector (MODE)
(_) Input indicator
(_ DVD 6ch input indicator
(_) DVD 6ch input select button (DVD 6CH INPUT)
(_ Input selector (INPUT SELECTOR)- ....
(_) Muting button (MUTING)
_) Volume control (VOLUME)
(_ Help/reset button (-HELP -RESET)
Headphones jack (PHONES)
@ Display
(_ Bass control (BASS)
Treble control (TREBLE)
VCR 2 input terminals (VCR 2)
VCR 2, TV/DSS input select button
( .,,_VCR 2, .=_TVIDSS)
Subwoofer level control (SUBWOOFER LEVEL)
_) Balance control (BALANCE)
Delay time adjust button (DELAY TIME)
Center mode select button (CENTER MODE)
Loudness ON/OFF button (LOUDNESS)
_)Tuning buttons (TUNING)
Radio station presetting button (PRESET)
Band select button (BAND)
_) FM mode select button (FM MODE)
Memory button (MEMORY)

Other manuals for Technics SA-AX720

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Technics SA-AX720 and is the answer not in the manual?

Technics SA-AX720 Specifications

General IconGeneral
Impedance8 ohms
Weight10.3 kg
Damping Factor60 (8 ohms, 1 kHz)
Power Output100 watts per channel into 8Ω (stereo)
Frequency Response5 Hz - 100 kHz (+0 dB, -3 dB)
Total Harmonic Distortion0.09%
Dimensions430 x 158 x 375mm
Tuning RangeFM: 87.5-108.0 MHz, AM: 522-1629 kHz
Input Sensitivity200 mV (Line In)
OutputHeadphone out
Video ConnectionsComposite Video Input/Output
Speaker Load Impedance8Ω to 16Ω
