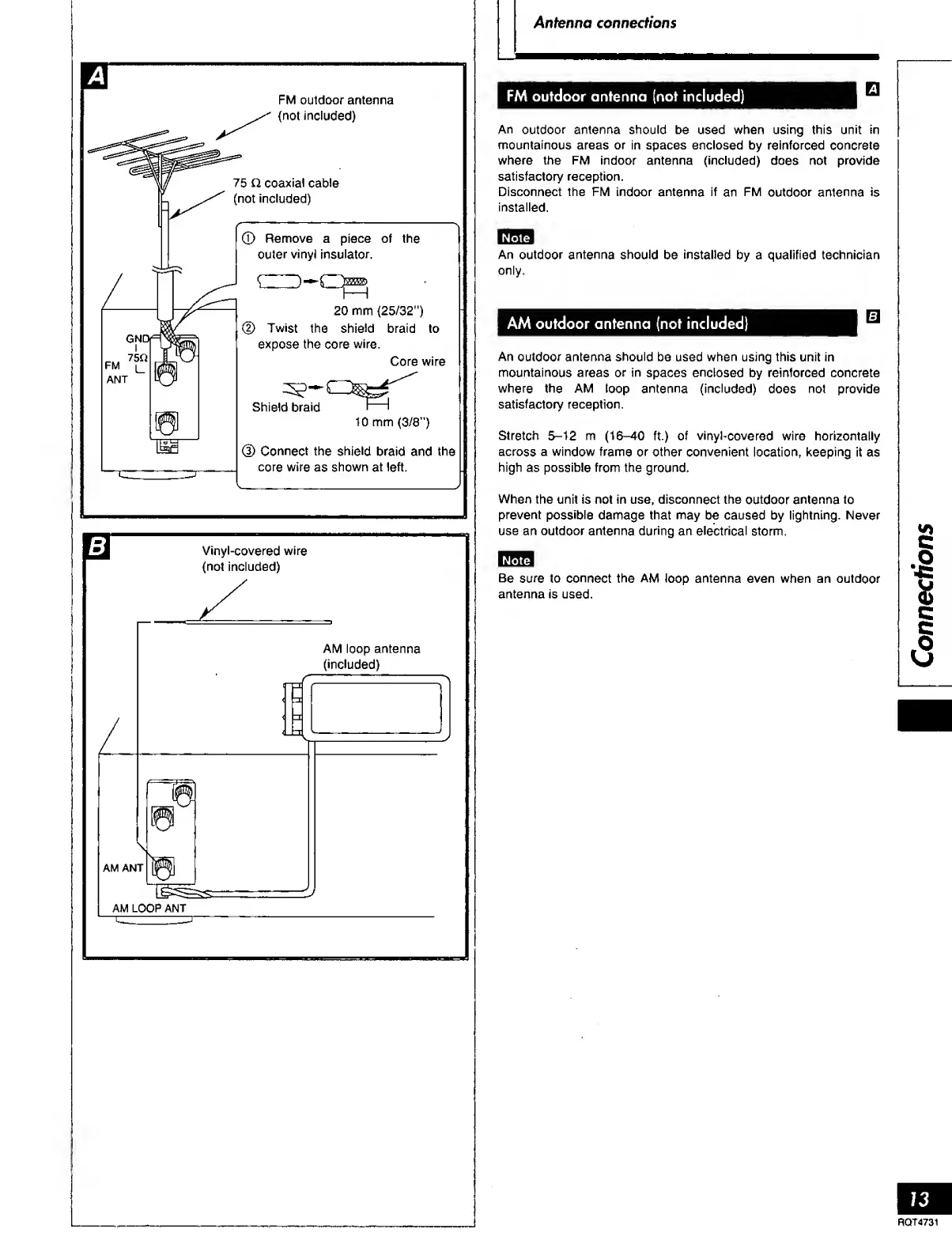

Antenna connections
FM outdoor antenna (not
included)
An outdoor
antenna should be used when using this unit in
mountainous
areas or in spaces enclosed
by
reinforced concrete
where the FM indoor antenna (included)
does
not provide
satisfactory reception.
Disconnect the FM
indoor
antenna if
an
FM outdoor antenna is
installed.
An
outdoor
antenna
should
be
installed
by a qualified
technician
only.
AM outdoor antenna (not included)
An
outdoor antenna should
be used when using this unit in
mountainous areas or in
spaces
enclosed
by reinforced concrete
where the AM
loop antenna (included)
does not provide
satisfactory reception.
Stretch
5-12
m
(16-40 ft.)
of vinyl-covered
wire horizontally
across a window frame
or other convenient
location, keeping it as
high
as
possible from the
ground.
When
the unit is not in use, disconnect the
outdoor
antenna
to
prevent
possible
damage that may be caused by lightning. Never
use an outdoor antenna during
an electrical
storm.
Be sure
to
connect the AM
loop antenna even when an outdoor
antenna is used.
AM ANT
AM
LOOP
ANT
AM loop antenna
(included)
