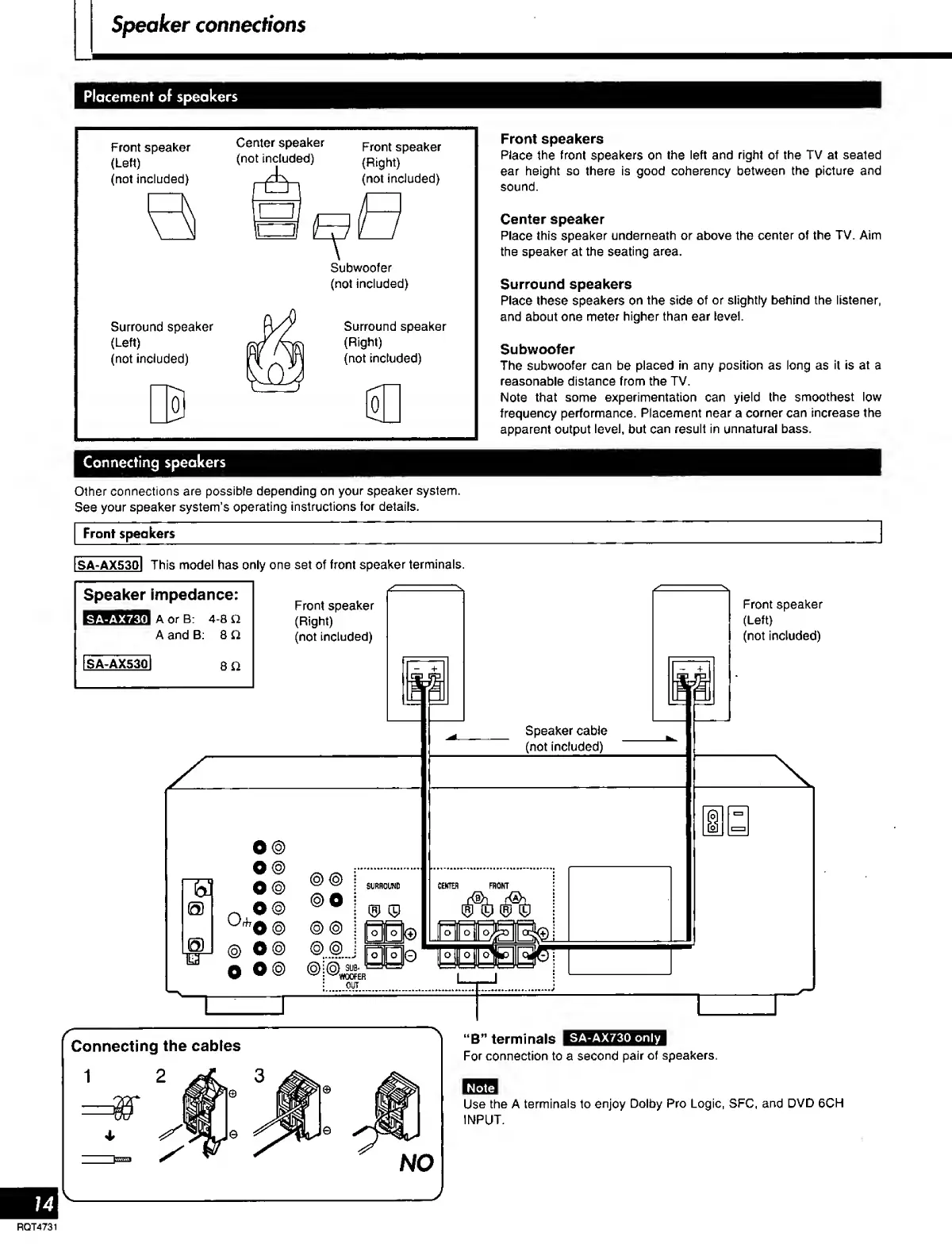

Speaker connections
Placement of speakers
Front
speaker
(Left)
(not included)
Center speaker
(not included)
Front speaker
(Right)
(not included)
Surround
speaker
(Left)
(not included)
Subwoofer
(not included)
Surround speaker
(Right)
(not
included)
Connecting speakers
Other
connections
are possible depending on
your speaker
system.
See
your speaker system's
operating
instructions for details.
Front
speakers
Place the
front
speakers on
the left and right
of
the TV at seated
ear height so there is good coherency
between the picture and
sound.
Center speaker
Place
this speaker underneath or above the
center
of
the
TV. Aim
the speaker at the
seating area.
Surround speakers
Place these
speakers on
the
side of
or slightly behind the listener,
and about one meter
higher than ear
level.
Subwoofer
The subwoofer
can
be
placed in any position as long as
it is at
a
reasonable distance from the TV.
Note
that some experimentation can yield
the smoothest
low
frequency performance. Placement
near
a
corner can
increase the
apparent output
level,
but
can result
in unnatural bass.
Front speakers
SA-AX530I
This model has
only one set of front
speaker
terminals.
Front speaker
Speaker
impedance:
SA-AX730
ISA-AX530I
A
or
B:
4-8
Q
A
and
B: 8 £1
8 £1
(Right)
(not included)
Front speaker
(Left)
(not included)
"53
6)
(S
ET
O®
O©
O©
O©
'O©
®
o©
Speaker cable
(not included)
:
OUT
1
1
Connecting
the cables
SA-AX730 only
"B" terminals
For connection to a
second
pair of speakers.
PBffS
Use
the A
terminals
to
enjoy
Dolby Pro Logic, SFC, and
DVD
6CH
INPUT.
RQT4731
