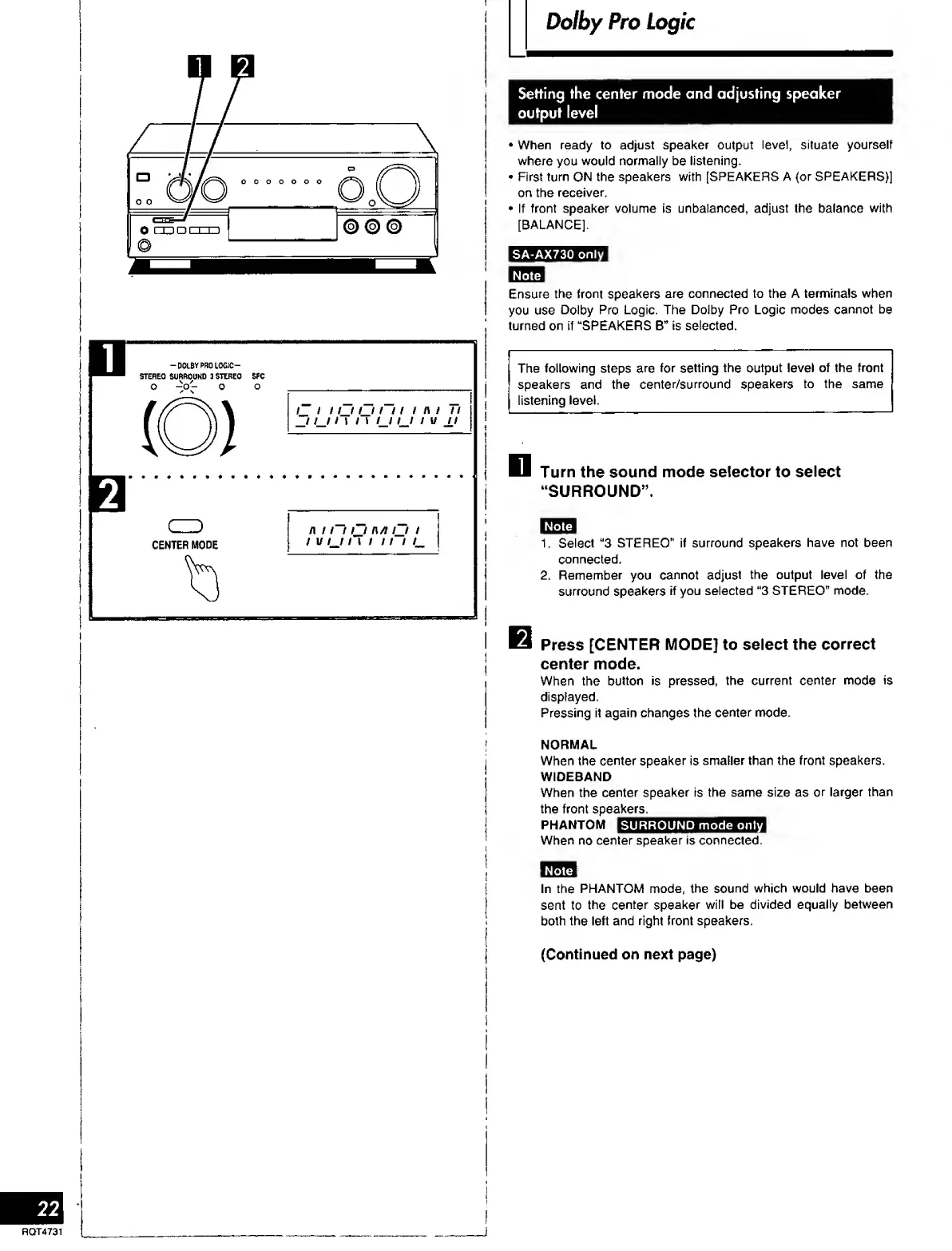

Setting the
center
mode and adjusting speaker
output level
•
When ready to adjust speaker output
level,
situate
yourself
where
you
would
normally
be
listening.
•
First turn
ON
the speakers with [SPEAKERS A (or
SPEAKERS)]
on the
receiver.
•
If front speaker volume is unbalanced, adjust the balance
with
[BALANCE].
SA-AX730
onl
Ensure the front speakers are
connected to the A terminals when
you use
Dolby
Pro
Logic.
The Dolby Pro Logic modes
cannot be
turned
on
if "SPEAKERS B" is selected.
The following steps
are
for setting the output level of the front
speakers and the
center/surround speakers
to the same
listening
level.
Turn the
sound mode selector to
select
"SURROUND".
CH3
1. Select
"3
STEREO" if surround
speakers
have not been
connected.
2. Remember you
cannot adjust
the output level of the
surround
speakers
if you selected
"3
STEREO"
mode.
Press
[CENTER MODE] to select
the correct
center mode.
When the
button is
pressed, the current
center mode is
displayed.
Pressing it again changes the
center mode.
NORMAL
When the
center speaker is
smaller than the front
speakers.
WIDEBAND
When the
center speaker is
the same size as
or
larger than
the front speakers.
PHANTOM
MlhhMIJJUTMffEBffffl
When
no
center speaker is connected.
In the PHANTOM mode,
the sound
which would have been
sent to
the center speaker
will be divided
equally
between
both
the left and right front speakers.
(Continued on next page)
